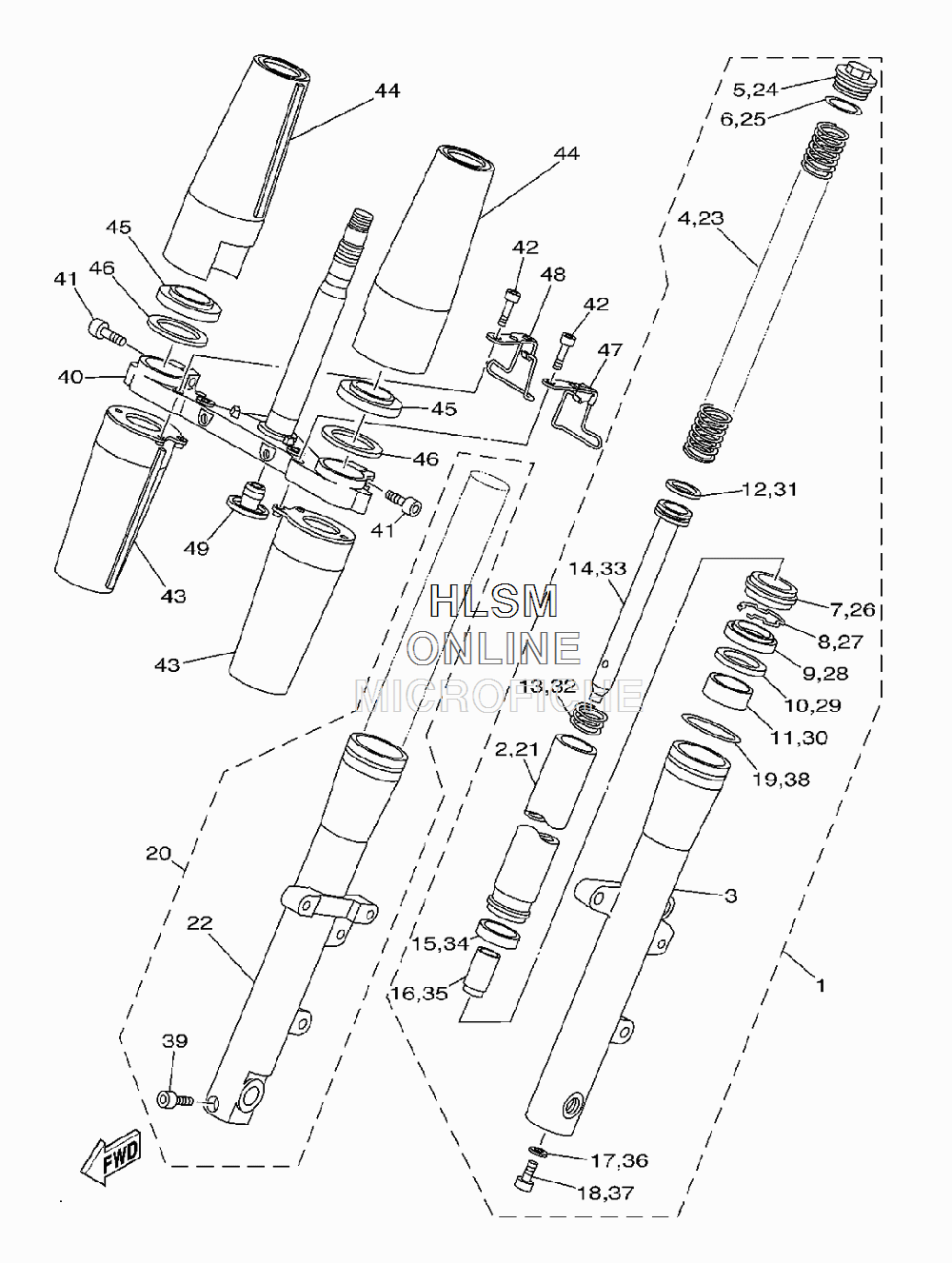

SUSPENSION - FRONT FORK для Yamaha ROAD STAR - 2009 года выпуска`
-
№АртикулНазвание
-
14WM-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24WM-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
34NK-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
44WM-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
54WM-23111-00-00 BOLT, CAPBOLT, CAP
-
64NK-23147-00-00 O-RINGO-RING
-
74NK-23144-00-00 SEAL, DUSTSEAL, DUST
-
834L-23153-00-00 RING, SNAPRING, SNAP
-
94NK-23145-00-00 OIL SEALOIL SEAL
-
104NK-23146-00-00 WASHER, OIL SEALWASHER, OIL SEAL
-
114NK-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
124NK-23157-00-00 RING, PISTONRING, PISTON
-
134NK-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
144WM-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
154NK-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
164WM-23166-00-00 SPACER, OIL LOCKSPACER, OIL LOCK
-
173MA-23129-10-00 GASKETGASKET
-
184NK-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
194NK-23193-00-00 GUIDE, BOOTGUIDE, BOOT
-
204WM-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
214WM-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
224NK-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
234WM-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
244WM-23111-00-00 BOLT, CAPBOLT, CAP
-
254NK-23147-00-00 O-RINGO-RING
-
264NK-23144-00-00 SEAL, DUSTSEAL, DUST
-
2734L-23153-00-00 RING, SNAPRING, SNAP
-
284NK-23145-00-00 OIL SEALOIL SEAL
-
294NK-23146-00-00 WASHER, OIL SEALWASHER, OIL SEAL
-
304NK-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
314NK-23157-00-00 RING, PISTONRING, PISTON
-
324NK-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
334WM-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
344NK-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
354WM-23166-00-00 SPACER, OIL LOCKSPACER, OIL LOCK
-
363MA-23129-10-00 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
374NK-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
384NK-23193-00-00 GUIDE, BOOTGUIDE, BOOT
-
391KT-23181-00-00 BOLT, SOCKETBOLT, SOCKET
-
404WM-23340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4138W-23181-00-00 BOLT, SOCKETBOLT, SOCKET
-
424NK-23181-10-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
434WM-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
444NK-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
454NK-23163-00-00 GASKETGASKET
-
464NK-23165-00-00 WASHER, FELTWASHER, FELT
-
474WM-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
484WM-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
494KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
