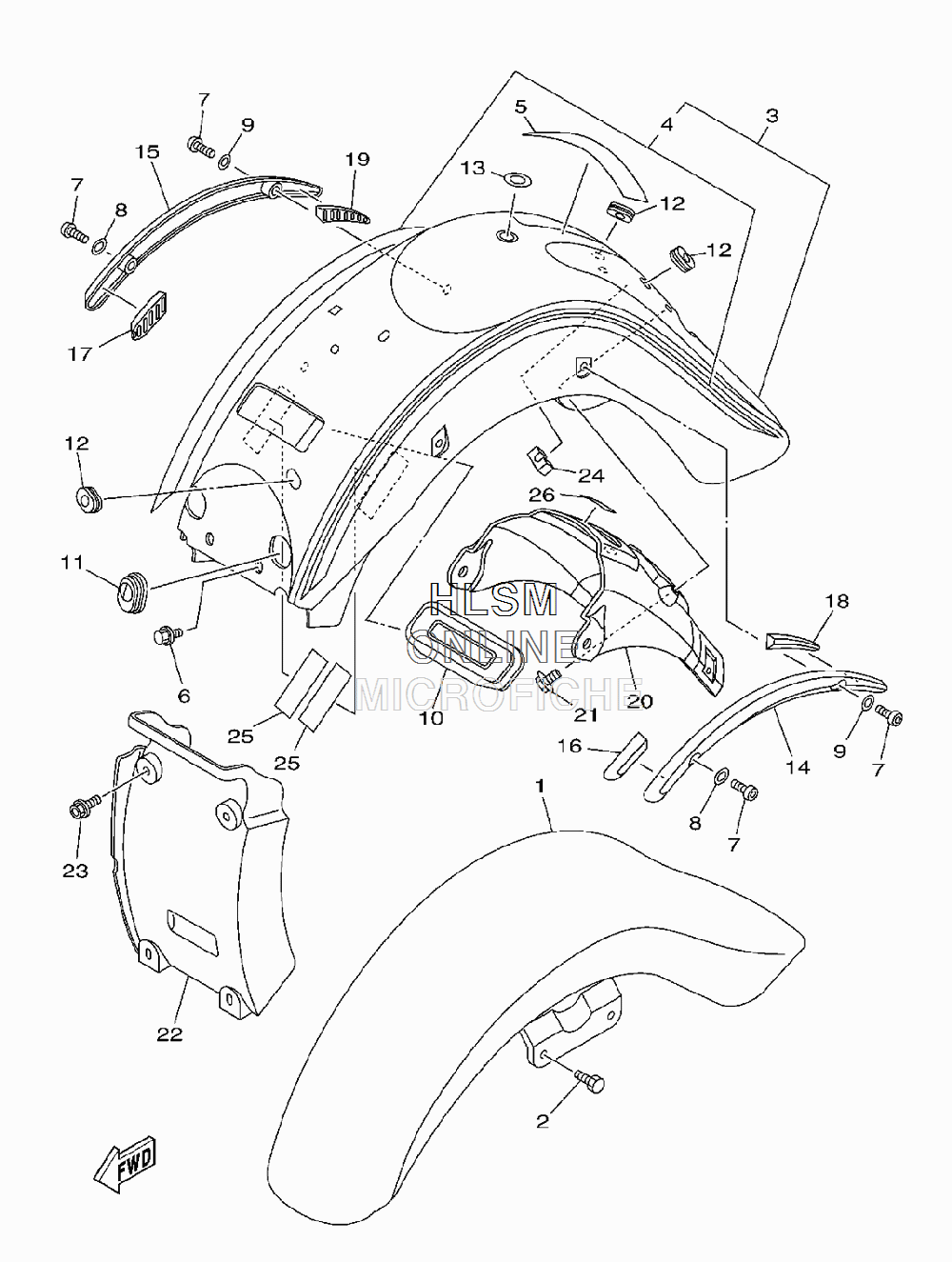

FENDER - FRONT / REAR для Yamaha ROAD STAR - 2009 года выпуска`
-
№АртикулНазвание
-
15VN-YK215-00-P9 FRONT FENDER COMP. (USE FOR COLOR DRMK / 0918)FRONT FENDER COMP. (USE FOR COLOR DRMK / 0918)
-
291314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
35VN-Y2161-K0-P3 REAR FENDER COMP. (USE FOR COLOR DRMK / 0918)REAR FENDER COMP. (USE FOR COLOR DRMK / 0918)
-
45VN-2165A-10-00 GRAPHIC SET, REAR FENDERGRAPHIC SET, REAR FENDER
-
51D6-2153E-00-00 EMBLEM,YAMAHA(FRS)EMBLEM,YAMAHA(FRS)
-
690119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790111-08009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
85VN-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
95VN-21616-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
104WM-21649-00-00 DAMPERDAMPER
-
114WM-21638-00-00 DAMPER 1DAMPER 1
-
1290480-01015-00 GROMMETGROMMET
-
135VN-21735-00-00 SEAL 2SEAL 2
-
144WM-2164F-00-00 STAY 1STAY 1
-
154WM-2164G-00-00 STAY 2STAY 2
-
164WM-21541-00-00 DAMPER 1DAMPER 1
-
174WM-21542-00-00 DAMPER 2DAMPER 2
-
184WM-2174X-00-00 DAMPERDAMPER
-
194WM-2174Y-00-00 DAMPERDAMPER
-
205VN-21643-00-00 STAY, REARSTAY, REAR
-
2190105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
224WM-21629-00-PE GUARD, MUD (USE FOR COLOR DRMK / 0918)GUARD, MUD (USE FOR COLOR DRMK / 0918)
-
2390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
245VN-21639-10-00 DAMPER 2DAMPER 2
-
255PW-23472-00-00 PROTECTORPROTECTOR
-
264U5-2317J-00-00 DAMPER 1DAMPER 1
