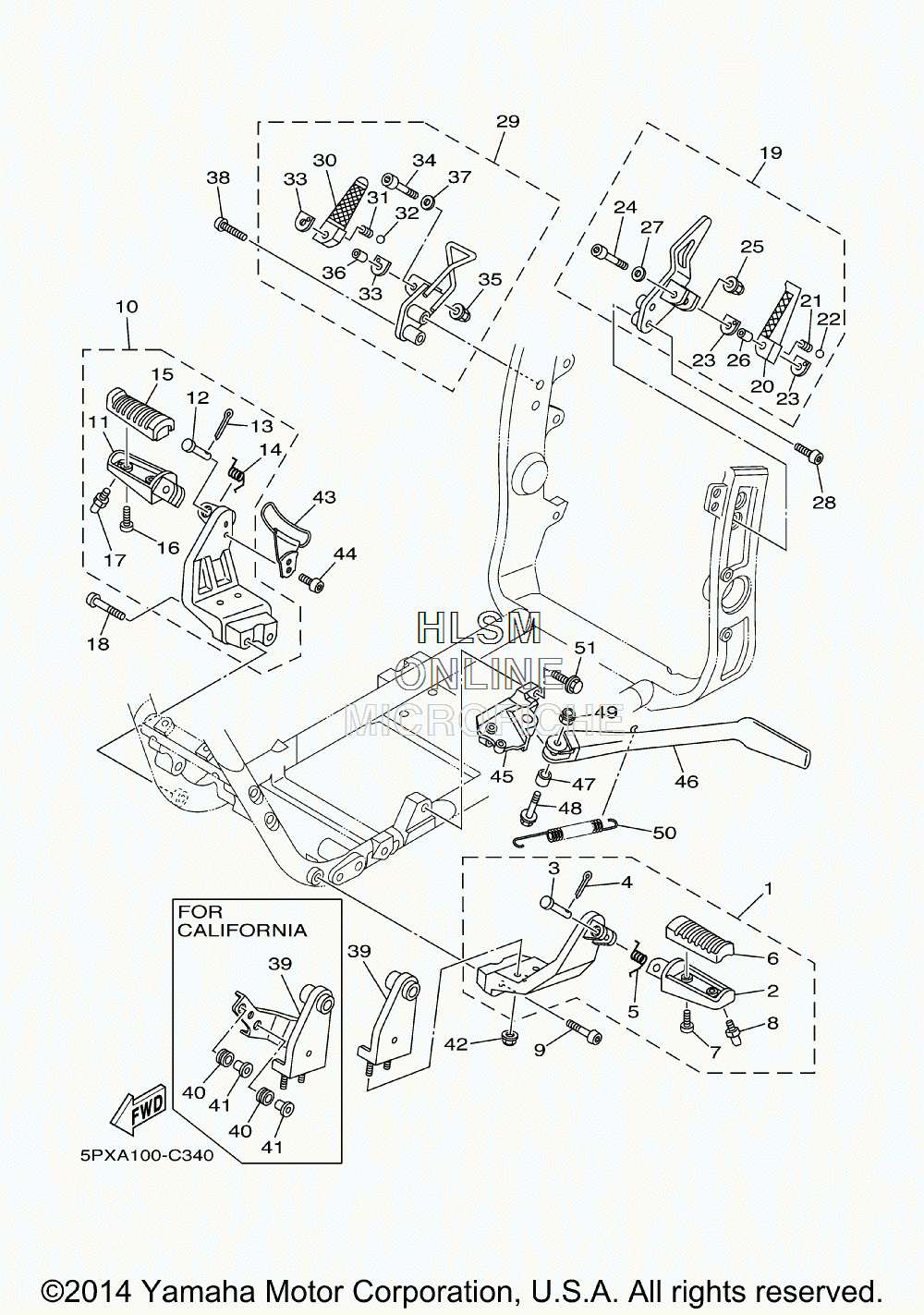

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha ROAD STAR WARRIOR [XV17PCYS] - 2009 года выпуска`
-
№АртикулНазвание
-
15PX-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24BH-27451-01-00 ...FOOTREST...FOOTREST
-
391701-08035-00 ...PIN...PIN
-
491401-25015-00 ...PIN, COTTER...PIN, COTTER
-
590508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
64BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
790157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85PX-27435-29-00 ...BOLT...BOLT
-
990111-10014-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
105PX-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
114BH-27461-01-00 ...FOOTREST...FOOTREST
-
1291701-08035-00 ...PIN...PIN
-
1391401-25015-00 ...PIN, COTTER...PIN, COTTER
-
1490508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
154BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1690157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
175PX-27435-29-00 ...BOLT...BOLT
-
1890111-10014-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
195PX-27430-12-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
205PX-27431-10-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
2190501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2293501-04011-00 ...BALL...BALL
-
235PX-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2491380-06040-00 ...BOLT...BOLT
-
2595604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
2690387-06554-00 ...COLLAR...COLLAR
-
2790201-066G5-00 ...WASHER, PLATE...WASHER, PLATE
-
2890111-10010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
295PX-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
305PX-27441-10-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
3190501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3293501-04011-00 ...BALL...BALL
-
332NT-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3491380-06040-00 ...BOLT...BOLT
-
3595604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
3690387-06554-00 ...COLLAR...COLLAR
-
3790201-066G5-00 ...WASHER, PLATE...WASHER, PLATE
-
3890111-10011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
395PX-27443-10-00 BRACKET 3 (CALIF ONLY)BRACKET 3 (CALIF ONLY)
-
395PX-27443-00-00 BRACKET 3 (EXCEPT CALIF)BRACKET 3 (EXCEPT CALIF)
-
4090480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
4190387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
4295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
435PX-2721A-10-00 GUIDE, PLATEGUIDE, PLATE
-
4492017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
455PX-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
465PX-27311-00-00 STAND, SIDESTAND, SIDE
-
4790387-1215U-00 COLLARCOLLAR
-
4890105-12018-00 BOLT, FLANGEBOLT, FLANGE
-
4990185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5090506-35003-00 SPRING, TENSIONSPRING, TENSION
-
5190105-10061-00 BOLT, FLANGEBOLT, FLANGE
