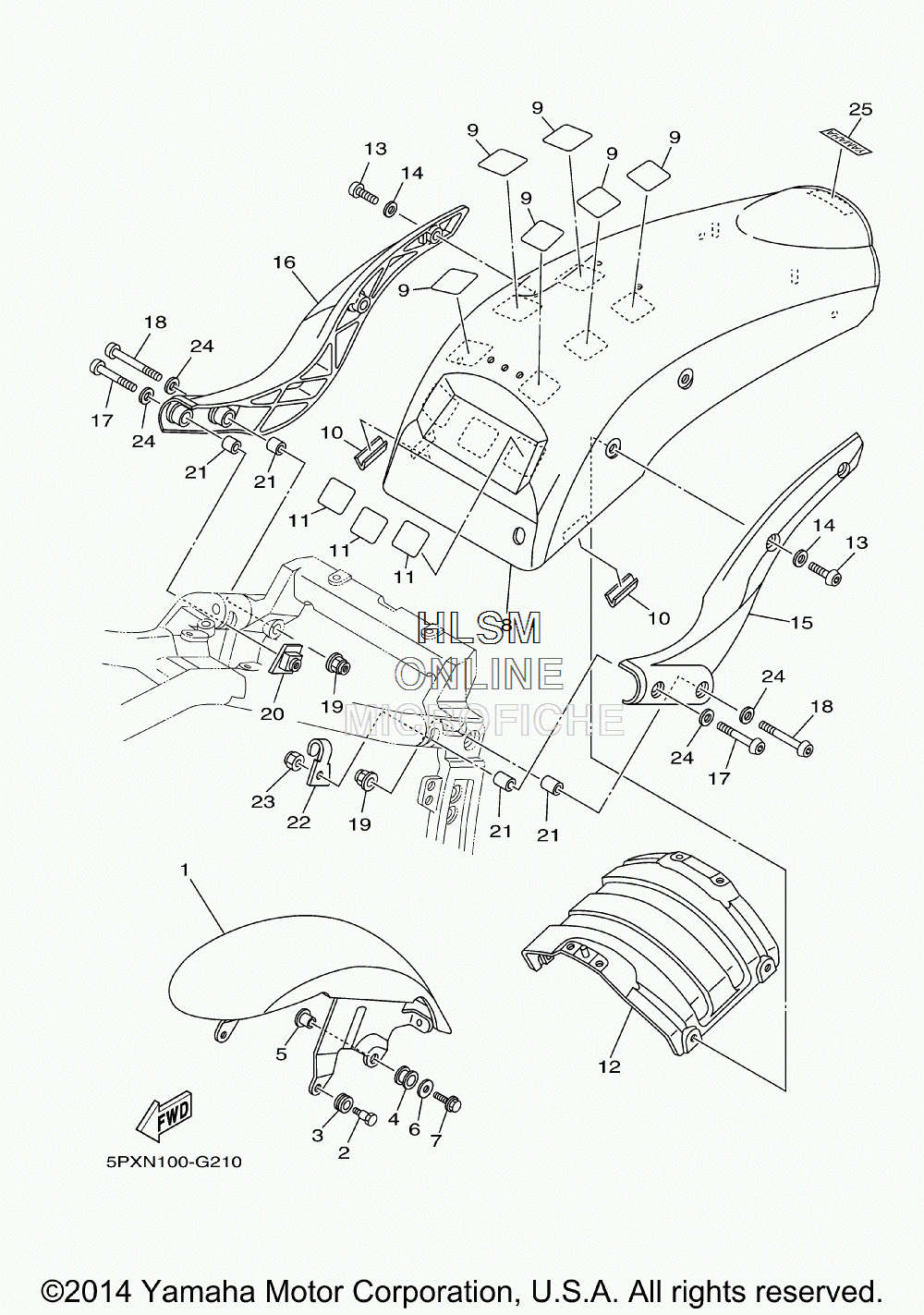

FENDER - FRONT / REAR для Yamaha ROAD STAR WARRIOR [XV17PCYS] - 2009 года выпуска`
-
№АртикулНазвание
-
15PX-YK215-10-P4 FRONT FENDER COMP. (S3 - SILVER)FRONT FENDER COMP. (S3 - SILVER)
-
290109-08020-00 BOLTBOLT
-
390480-15397-00 GROMMETGROMMET
-
490480-15007-00 GROMMETGROMMET
-
590387-087T7-00 COLLARCOLLAR
-
690201-094G1-00 WASHER, PLATEWASHER, PLATE
-
795027-08025-00 BOLT, FLANGEBOLT, FLANGE
-
85PX-YK216-10-P6 REAR FENDER C0MP. (S3 - SILVER)REAR FENDER C0MP. (S3 - SILVER)
-
95PX-21669-01-00 SEALSEAL
-
103VD-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
115PX-21669-01-00 SEALSEAL
-
125PX-21643-10-00 STAY, REARSTAY, REAR
-
1392014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492990-08200-00 WASHER, PLAINWASHER, PLAIN
-
155PX-21613-00-P0 STAY, FENDER 1 (MBL2 - MAT BLACK FOR S3 - SILVER)STAY, FENDER 1 (MBL2 - MAT BLACK FOR S3 - SILVER)
-
165PX-21614-00-P0 STAY, FENDER 2 (MBL2 - MAT BLACK FOR S3 - SILVER)STAY, FENDER 2 (MBL2 - MAT BLACK FOR S3 - SILVER)
-
1792014-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890111-10005-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
205PX-21295-00-00 NUTNUT
-
2199530-14016-00 PIN, DOWELPIN, DOWEL
-
225PX-21398-00-00 HANGER, HELMETHANGER, HELMET
-
2390185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490201-10M63-00 WASHER, PLATEWASHER, PLATE
-
251D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
