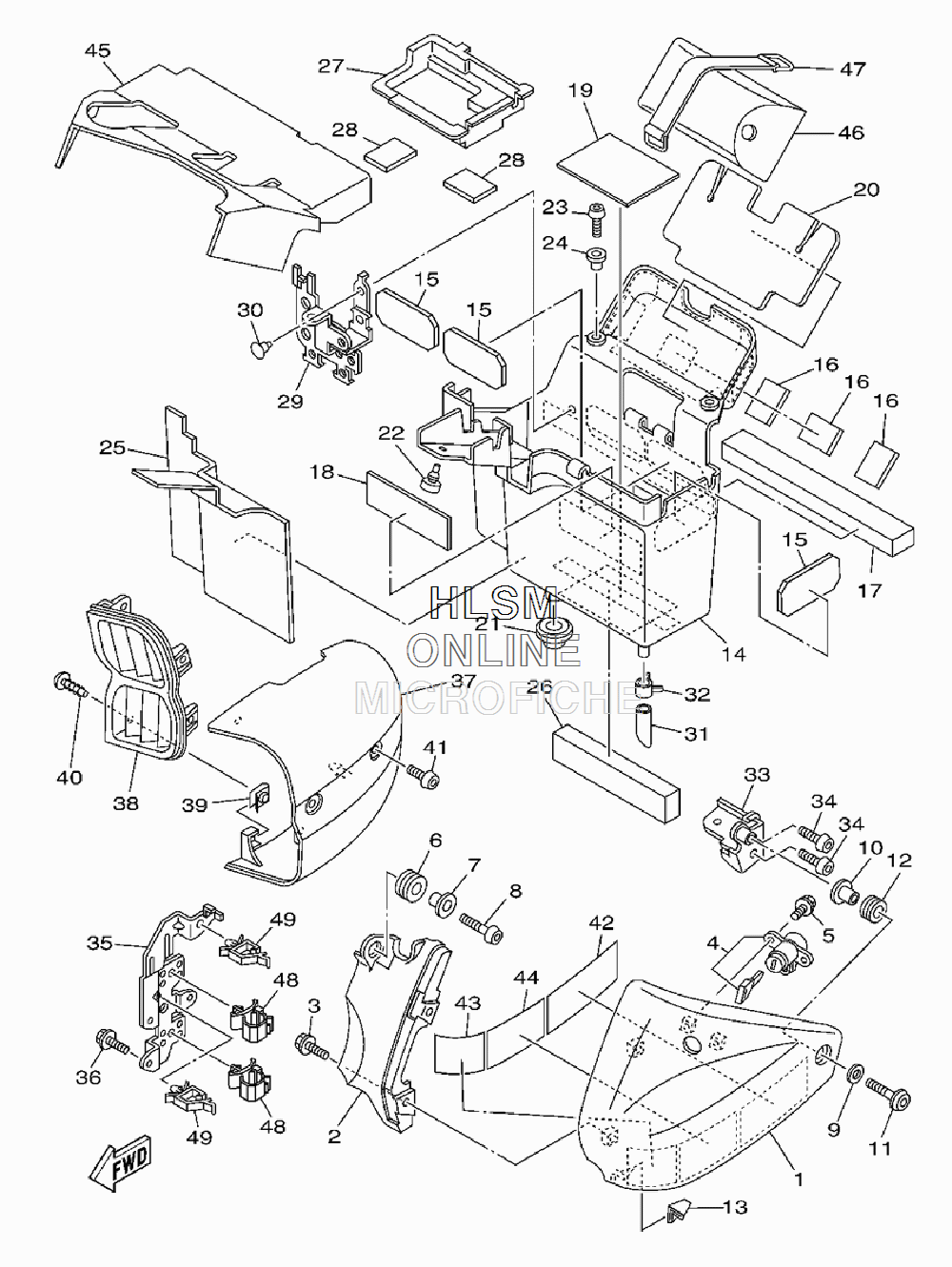

SIDE COVER для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2009 года выпуска`
-
№АртикулНазвание
-
15PX-21711-00-P0 COVER, SIDE 1 (MBL2)COVER, SIDE 1 (MBL2)
-
25PX-2117X-00-P0 COVER 9 (MBL2)COVER 9 (MBL2)
-
390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
45PX-W2470-00-00 ROTOR SETROTOR SET
-
595027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690480-14323-00 GROMMETGROMMET
-
790387-066Y6-00 COLLARCOLLAR
-
892014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990201-06M01-00 WASHER, PLATEWASHER, PLATE
-
1090387-06638-00 COLLARCOLLAR
-
1190149-06023-00 SCREWSCREW
-
1290480-12067-00 GROMMETGROMMET
-
135PX-2171H-00-00 GUIDEGUIDE
-
145PX-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
155PX-21652-00-00 PROTECTORPROTECTOR
-
165JW-2139X-00-00 DAMPERDAMPER
-
175PX-21747-00-00 DAMPERDAMPER
-
185PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
195PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
205PX-2174Y-01-00 DAMPERDAMPER
-
2190480-20384-00 GROMMETGROMMET
-
2235T-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
2392017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2490387-07717-00 COLLARCOLLAR
-
255PX-21732-00-00 SEAL 1SEAL 1
-
265PX-2174X-00-00 DAMPERDAMPER
-
275PX-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
285JW-2139X-00-00 DAMPERDAMPER
-
295PX-2172K-00-00 BRACKET 1BRACKET 1
-
3090269-07077-00 RIVETRIVET
-
3190445-11027-00 HOSEHOSE
-
3290467-11090-00 CLIP, SCISSORCLIP, SCISSOR
-
335PX-2175T-00-00 BRACKET 1BRACKET 1
-
3492017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
355PX-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
3695027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
375PX-21731-10-00 COVER, SIDE 3COVER, SIDE 3
-
385PX-2837N-10-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
3990183-05042-00 NUT, SPRINGNUT, SPRING
-
4097707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4190149-06302-00 SCREWSCREW
-
425PX-2179W-70-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
425PX-2176P-70-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
435PX-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
444YN-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
455PX-24796-00-00 COVERCOVER
-
465PX-28100-10-00 TOOL KITTOOL KIT
-
47120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
4890464-20002-00 CLAMPCLAMP
-
4990464-16021-00 CLAMPCLAMP
