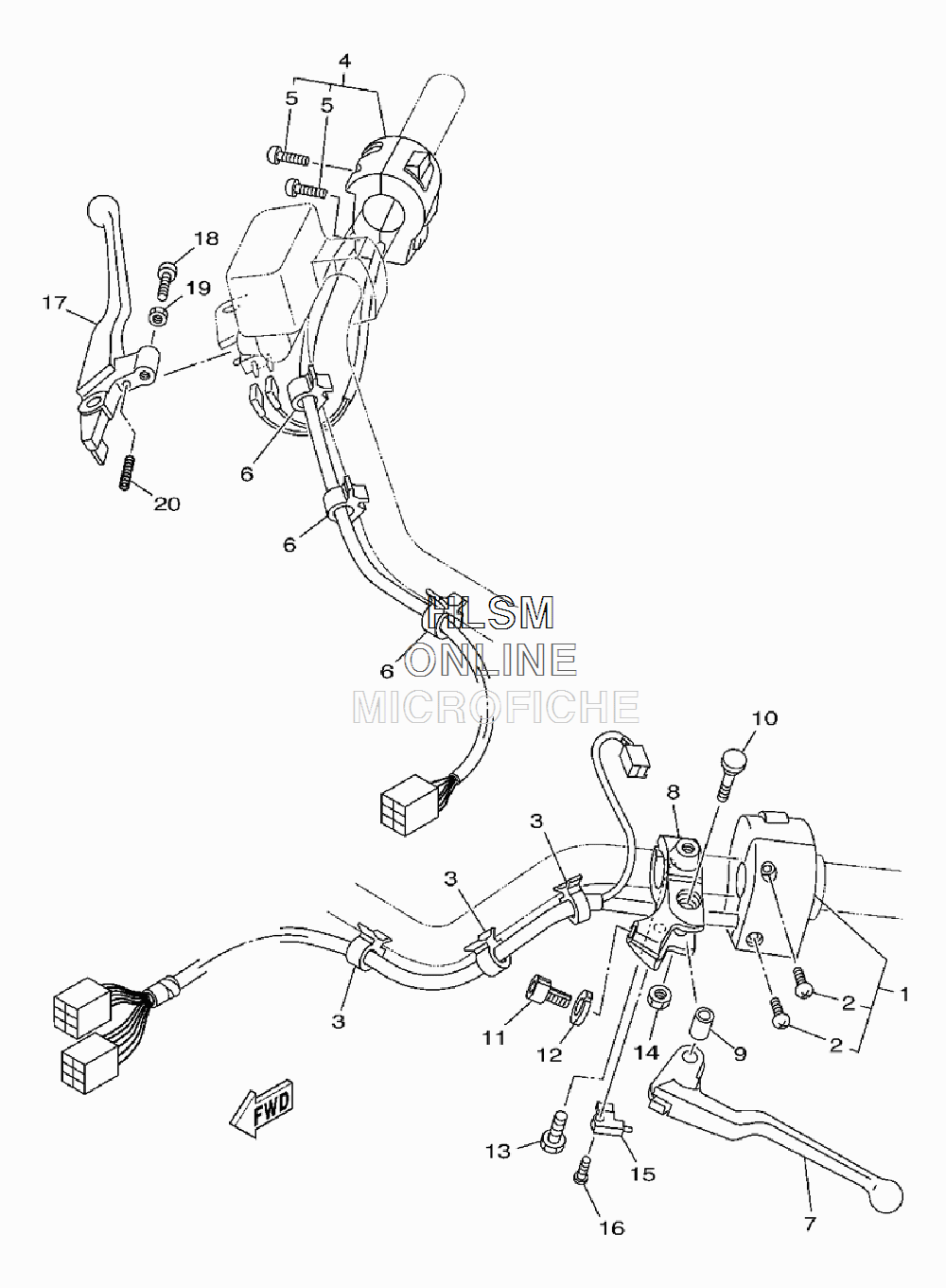

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2009 года выпуска`
-
№АртикулНазвание
-
15PX-83973-30-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298580-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
390464-15192-00 CLAMPCLAMP
-
45PX-83975-30-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
598507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
690464-10190-00 CLAMPCLAMP
-
74WM-83912-10-00 LEVER 1LEVER 1
-
85BN-82911-20-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
94TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
104TR-83945-10-00 BOLT, LEVERBOLT, LEVER
-
1190123-08083-00 BOLTBOLT
-
1290179-08316-00 NUT,SPEC'L SHAPENUT,SPEC'L SHAPE
-
1397017-06020-00 BOLTBOLT
-
1495604-06100-00 NUT, UNUT, U
-
153YX-82917-01-00 SWITCHSWITCH
-
1698704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
175EY-83922-10-00 LEVER 2LEVER 2
-
1890149-06131-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1990170-06010-00 NUTNUT
-
2090501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
