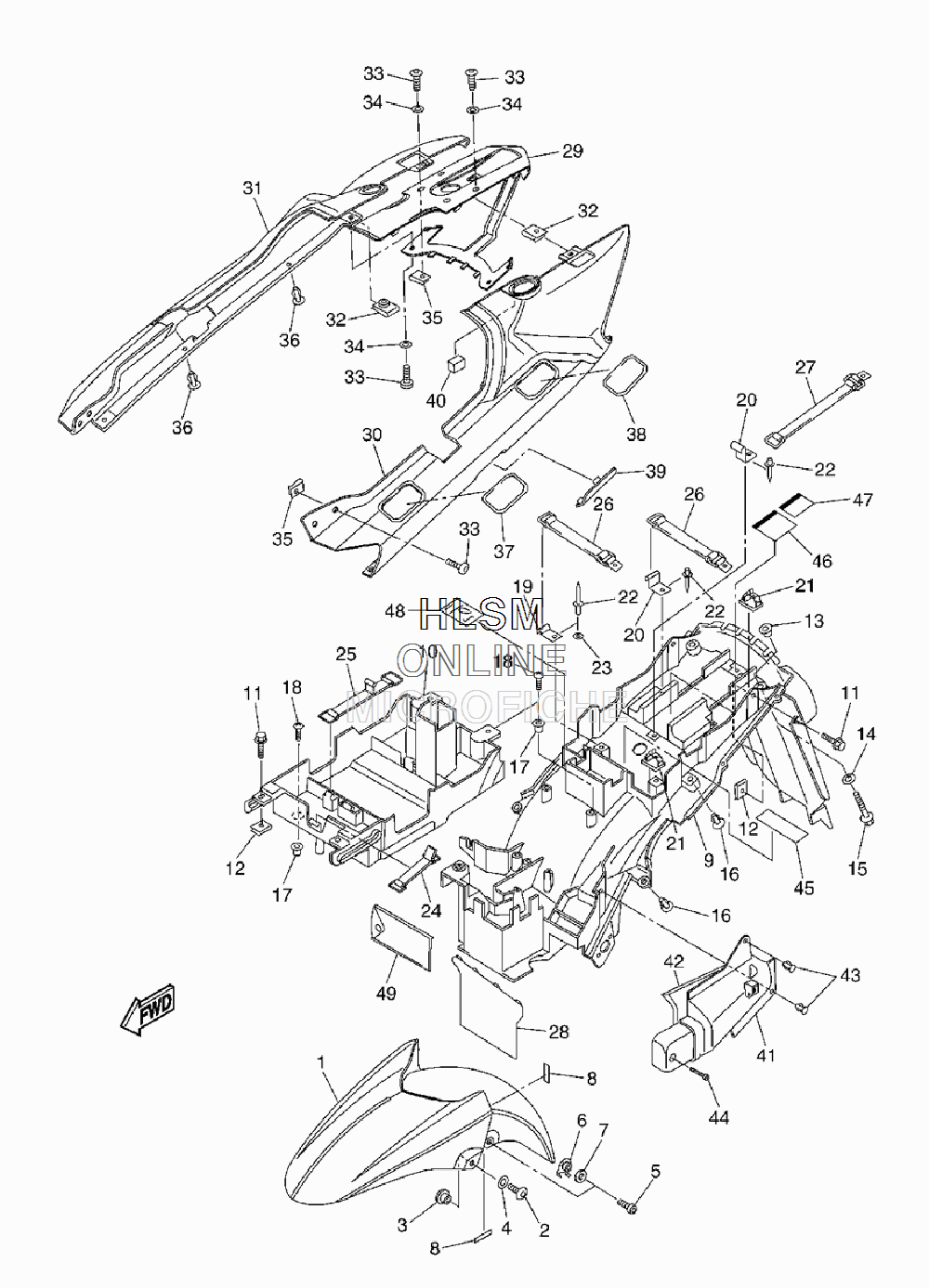

FENDER - FRONT / REAR для Yamaha FJR1300A ABS - 2009 года выпуска`
-
№АртикулНазвание
-
13P6-21511-00-P6 FENDER, FRONT (FOR SMX)FENDER, FRONT (FOR SMX)
-
290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-07006-00 COLLARCOLLAR
-
490202-06170-00 WASHER, NYLONWASHER, NYLON
-
592014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
63P6-21535-10-00 NUT 1NUT 1
-
73P6-21541-00-00 DAMPER 1DAMPER 1
-
85DM-28371-00-00 DAMPERDAMPER
-
93P6-21611-10-00 FENDER, REARFENDER, REAR
-
103P6-2160E-00-00 BOXBOX
-
1190119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290183-060A7-00 NUT, SPRINGNUT, SPRING
-
1390387-06050-00 COLLARCOLLAR
-
1490201-07081-00 WASHER, PLATEWASHER, PLATE
-
1595807-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1690269-06081-00 RIVETRIVET
-
1790338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1897702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
195PS-2162A-00-00 HOOKHOOK
-
204HM-2162A-00-00 HOOKHOOK
-
2190464-13185-00 CLAMPCLAMP
-
2290267-40076-00 RIVET, BLINDRIVET, BLIND
-
2392902-04200-00 WASHER, PLAINWASHER, PLAIN
-
2436X-2811G-00-00 BANDBAND
-
254J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
265JW-21647-01-00 BANDBAND
-
273P6-21647-00-00 BANDBAND
-
285JW-21621-10-00 FLAPFLAP
-
293P6-21651-00-P4 COVER, REAR FENDER (FOR SMX)COVER, REAR FENDER (FOR SMX)
-
303P6-2471K-00-P4 COVER, TAIL 1 (FOR SMX)COVER, TAIL 1 (FOR SMX)
-
313P6-2472K-00-P4 COVER, TAIL 2 (FOR SMX)COVER, TAIL 2 (FOR SMX)
-
3290183-051A0-00 NUT, SPRINGNUT, SPRING
-
3390110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490202-05180-00 WASHER, PLATEWASHER, PLATE
-
3590183-050A0-00 NUT, SPRINGNUT, SPRING
-
3690269-06081-00 RIVETRIVET
-
373P6-2163E-00-P3 COVER, REAR FENDER 2 (FOR SMX)COVER, REAR FENDER 2 (FOR SMX)
-
383P6-2163E-10-P3 COVER, REAR FENDER 2 (FOR SMX)COVER, REAR FENDER 2 (FOR SMX)
-
393P6-2163F-00-P3 COVER, REAR FENDER 3 (FOR SMX)COVER, REAR FENDER 3 (FOR SMX)
-
403P6-21649-00-00 DAMPERDAMPER
-
413P6-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
423P6-21639-00-00 DAMPER 2DAMPER 2
-
4390269-06081-00 RIVETRIVET
-
4497702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
453P6-2179W-30-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
-
453P6-2176P-31-00 PLATE, EPA (CALIF. ONLY)PLATE, EPA (CALIF. ONLY)
-
465PW-21684-00-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
475SL-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
485VX-2178A-00-00 LABEL (CALIF. ONLY)LABEL (CALIF. ONLY)
-
495JW-28100-00-00 TOOL KITTOOL KIT
