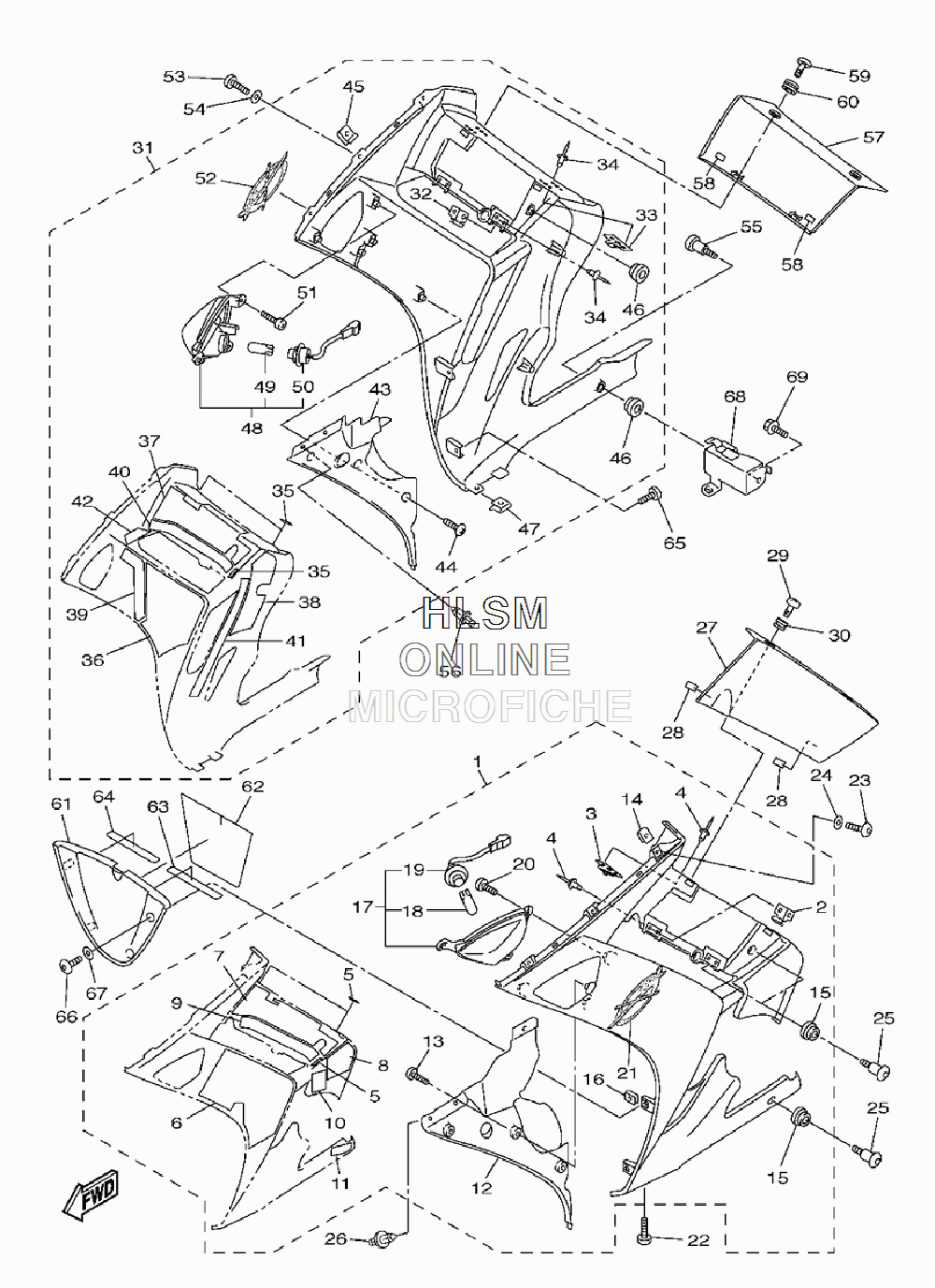

COWLING 2 для Yamaha FJR1300A ABS - 2009 года выпуска
-
№АртикулНазвание
-
13P6-Y283J-K0-P7 BODY, FRONT LOWER 1 (FOR SMX) (EXCEPT CALIF)BODY, FRONT LOWER 1 (FOR SMX) (EXCEPT CALIF)
-
13P6-Y283J-L0-P5 BODY, FRONT LOWER 1 (FOR SMX) (CALIF ONLY)BODY, FRONT LOWER 1 (FOR SMX) (CALIF ONLY)
-
23P6-21796-00-00 HINGEHINGE
-
33XV-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
490267-32103-00 RIVET, BLINDRIVET, BLIND
-
53P6-28307-00-00 SEALSEAL
-
63P6-28415-00-00 DAMPER 1DAMPER 1
-
73P6-28416-00-00 DAMPER 2DAMPER 2
-
83P6-28435-00-00 DAMPER 4DAMPER 4
-
93P6-2834E-00-00 DAMPER 3DAMPER 3
-
103P6-2837J-00-00 DAMPER 5DAMPER 5
-
115VY-2837J-00-00 DAMPER 5DAMPER 5
-
123P6-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1490183-051A0-00 NUT, SPRINGNUT, SPRING
-
1590480-13398-00 GROMMETGROMMET
-
1690183-051A0-00 NUT, SPRINGNUT, SPRING
-
173P6-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
183P6-83331-10-00 BULB, FLASHER (12V-21/5W)BULB, FLASHER (12V-21/5W)
-
193P6-83509-10-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
2097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
213P6-2839B-00-00 EMBLEM 3DEMBLEM 3D
-
2290111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2490202-05180-00 WASHER, PLATEWASHER, PLATE
-
2590109-06037-00 BOLTBOLT
-
2690269-06008-00 RIVETRIVET
-
273P6-2830C-00-P7 VISOR, SIDE 1 (FOR SMX)VISOR, SIDE 1 (FOR SMX)
-
283P6-28217-00-00 DAMPER 1DAMPER 1
-
293XV-28386-00-00 HEADHEAD
-
3090480-09001-00 GROMMETGROMMET
-
313P6-Y283K-K0-P7 BODY, FRONT LOWER 2 (FOR SMX) (EXCEPT CALIF)BODY, FRONT LOWER 2 (FOR SMX) (EXCEPT CALIF)
-
313P6-Y283K-L0-P5 BODY, FRONT LOWER 2 (FOR SMX) (CALIF ONLY)BODY, FRONT LOWER 2 (FOR SMX) (CALIF ONLY)
-
323P6-21796-00-00 HINGEHINGE
-
333XV-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3490267-32103-00 RIVET, BLINDRIVET, BLIND
-
353P6-28307-00-00 SEALSEAL
-
363P6-28425-00-00 DAMPER 3DAMPER 3
-
373P6-28416-10-00 DAMPER 2DAMPER 2
-
383P6-28455-00-00 DAMPER, 4DAMPER, 4
-
393P6-28371-00-00 DAMPERDAMPER
-
403P6-2834F-00-00 DAMPERDAMPER
-
413P6-2837K-00-00 DAMPER 6DAMPER 6
-
423P6-2847N-00-00 DAMPER 8DAMPER 8
-
433P6-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
4497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4590183-051A0-00 NUT, SPRINGNUT, SPRING
-
4690480-13398-00 GROMMETGROMMET
-
4790183-051A0-00 NUT, SPRINGNUT, SPRING
-
483P6-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
493P6-83331-10-00 BULB, FLASHER (12V-21/5W)BULB, FLASHER (12V-21/5W)
-
503P6-8350L-00-00 SOCKET ASSY.SOCKET ASSY.
-
5197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
523P6-2839B-00-00 EMBLEM 3DEMBLEM 3D
-
5390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5490202-05180-00 WASHER, PLATEWASHER, PLATE
-
5590109-06037-00 BOLTBOLT
-
5690269-06008-00 RIVETRIVET
-
573P6-2830D-00-P7 VISOR, SIDE 2 (FOR SMX)VISOR, SIDE 2 (FOR SMX)
-
583P6-28217-00-00 DAMPER 1DAMPER 1
-
593XV-28386-00-00 HEADHEAD
-
6090480-09001-00 GROMMETGROMMET
-
613P6-28385-00-P7 COVER, LOWER (FOR SMX)COVER, LOWER (FOR SMX)
-
623P6-2848H-00-00 SEATSEAT
-
633P6-2848K-00-00 SEAT 2SEAT 2
-
643P6-2848L-00-00 SEAT 3SEAT 3
-
6597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6790202-05180-00 WASHER, PLATEWASHER, PLATE
-
685JW-2836F-00-00 BRACKET 3BRACKET 3
-
6995822-06012-00 BOLT, FLANGEBOLT, FLANGE
