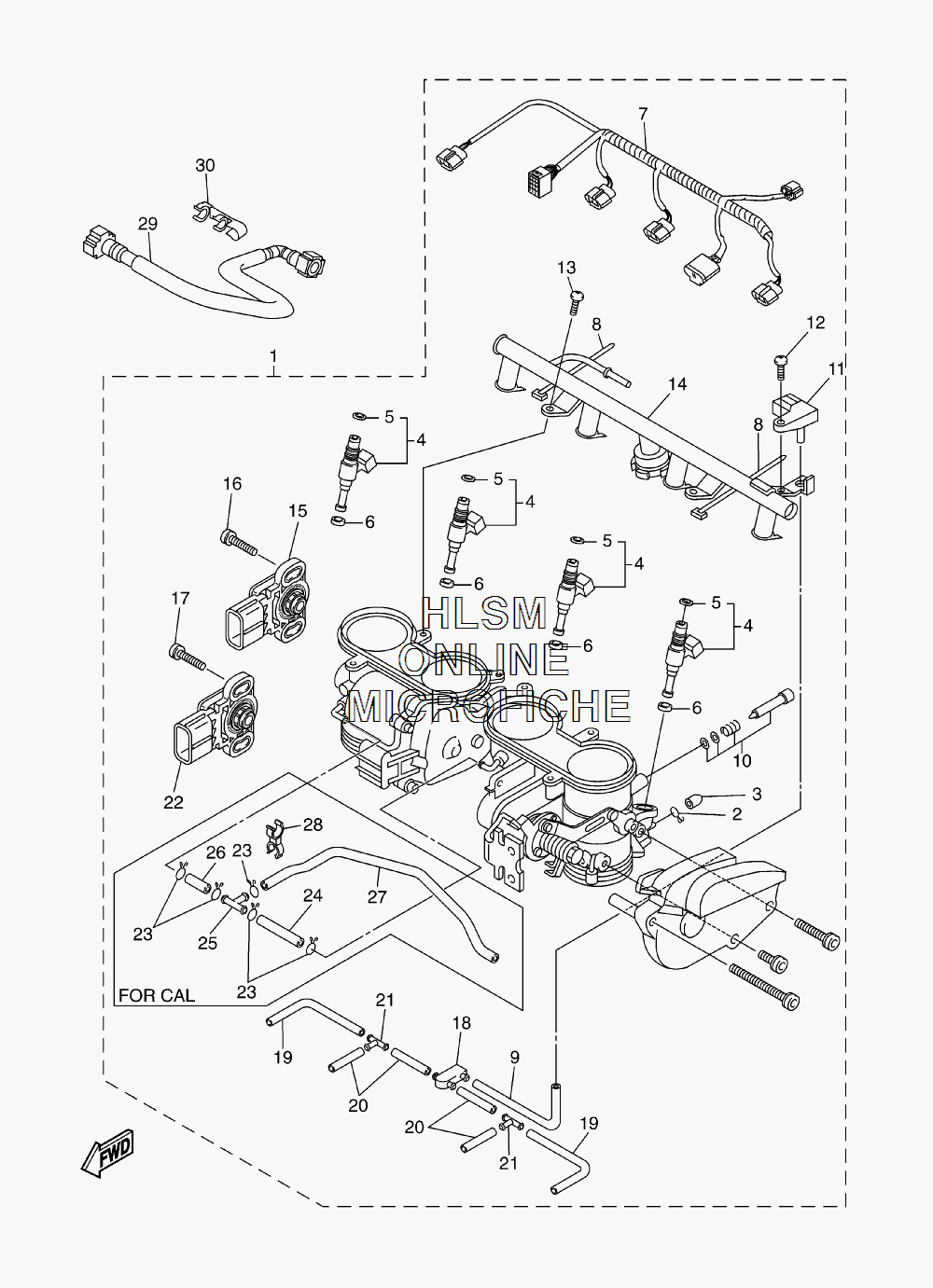

THROTTLE BODY ASSY. для Yamaha YZF-R1 - 2008 года выпуска
-
№АртикулНазвание
-
14C8-13750-20-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
14C8-13750-30-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
28A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
3895-14169-00-00 ...CAP...CAP
-
44C8-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
55PS-14147-00-00 ...O-RING...O-RING
-
68FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
74C8-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
84KM-14137-00-00 ...CLIP, PIPE...CLIP, PIPE
-
95JW-14987-00-00 ...HOSE...HOSE
-
102C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
112C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
122C0-14216-00-00 ...SCREW...SCREW
-
1398502-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
144C8-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
1513S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
168CC-14216-10-00 ...SCREW...SCREW
-
175FL-14216-00-00 ...SCREW...SCREW
-
183XV-14251-00-00 ...NIPPLE...NIPPLE
-
195FL-14349-10-00 ...PIPE...PIPE
-
205JW-14396-00-00 ...PIPE...PIPE
-
2168V-24376-00-00 ...PIPE, JOINT (T - FIT)...PIPE, JOINT (T - FIT)
-
2213S-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
2390467-09006-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
244C8-14465-10-00 ...PIPE...PIPE
-
2590413-08012-00 ...WAY 3...WAY 3
-
264C8-14466-10-00 ...PIPE...PIPE
-
274C8-1443J-00-00 ...PIPE...PIPE
-
2890464-09012-00 ...CLAMP...CLAMP
-
294C8-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090464-16005-00 CLAMPCLAMP
