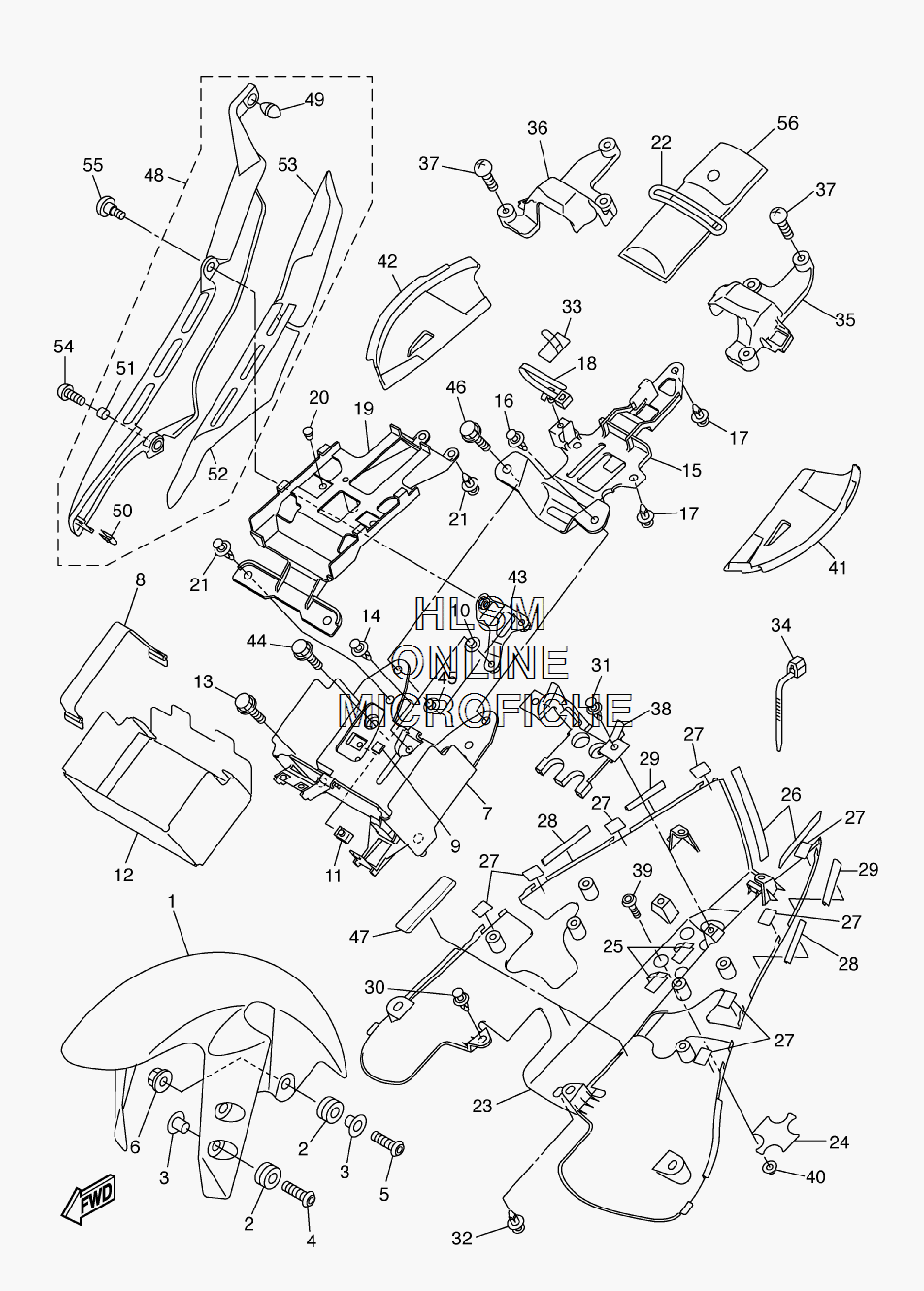

FENDER - FRONT / REAR для Yamaha YZF-R1 - 2008 года выпуска
-
№АртикулНазвание
-
15PW-21511-00-P1 FENDER, FRONT FOR DPBMCFENDER, FRONT FOR DPBMC
-
15PW-21511-00-P3 FENDER, FRONT FOR DRMKFENDER, FRONT FOR DRMK
-
15PW-21511-00-P6 FENDER, FRONT FOR SMXFENDER, FRONT FOR SMX
-
290480-12072-00 GROMMETGROMMET
-
390387-065J6-00 COLLARCOLLAR
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
74C8-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
8133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
94C8-21649-00-00 DAMPERDAMPER
-
1090387-05021-00 COLLARCOLLAR
-
1190183-05076-00 NUT, SPRINGNUT, SPRING
-
124C8-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1390109-06043-00 BOLTBOLT
-
1490269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
154C8-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1690269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
1790269-07077-00 RIVETRIVET
-
1890464-34002-00 CLAMPCLAMP
-
194C8-2117T-00-00 COVER 5COVER 5
-
2090338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2190269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
224XV-21376-00-00 BAND, TOOLBAND, TOOL
-
234C8-21611-00-P0 FENDER, REAR FOR DPBMCFENDER, REAR FOR DPBMC
-
234C8-21611-00-P3 FENDER, REAR FOR DRMKFENDER, REAR FOR DRMK
-
234C8-21611-00-P1 FENDER, REAR FOR SMXFENDER, REAR FOR SMX
-
245VY-21669-00-00 SEALSEAL
-
2590465-04020-00 CLAMPCLAMP
-
264C8-21639-00-00 DAMPER 2DAMPER 2
-
274C8-21735-00-00 SEAL 2SEAL 2
-
285VY-21732-00-00 SEAL 1SEAL 1
-
295PW-21732-00-00 SEAL 1SEAL 1
-
3090269-06081-00 RIVETRIVET
-
3190269-06081-00 RIVETRIVET
-
3290269-07077-00 RIVETRIVET
-
3390465-04020-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
354C8-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
364C8-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
3797702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
384C8-21652-00-00 PROTECTORPROTECTOR
-
3990111-06052-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4090387-06071-00 COLLARCOLLAR
-
414C8-2164K-00-00 PATCH 5PATCH 5
-
424C8-2164L-00-00 PATCH 6PATCH 6
-
434C8-2164F-00-00 STAY 1STAY 1
-
4490119-05239-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590387-05017-00 COLLARCOLLAR
-
4690119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
473JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
484C8-27406-00-00 COVER ASSYCOVER ASSY
-
495VY-14757-00-00 ...DAMPER, MUFFLER 2...DAMPER, MUFFLER 2
-
505GM-28379-00-00 ...HOOK...HOOK
-
5190560-05N33-00 ...SPACER (7YL)...SPACER (7YL)
-
524C8-27498-00-00 ...SEAT 1...SEAT 1
-
534C8-27499-00-00 ...SEAT 2...SEAT 2
-
5492017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5590111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
564C8-28100-00-00 TOOL KITTOOL KIT
