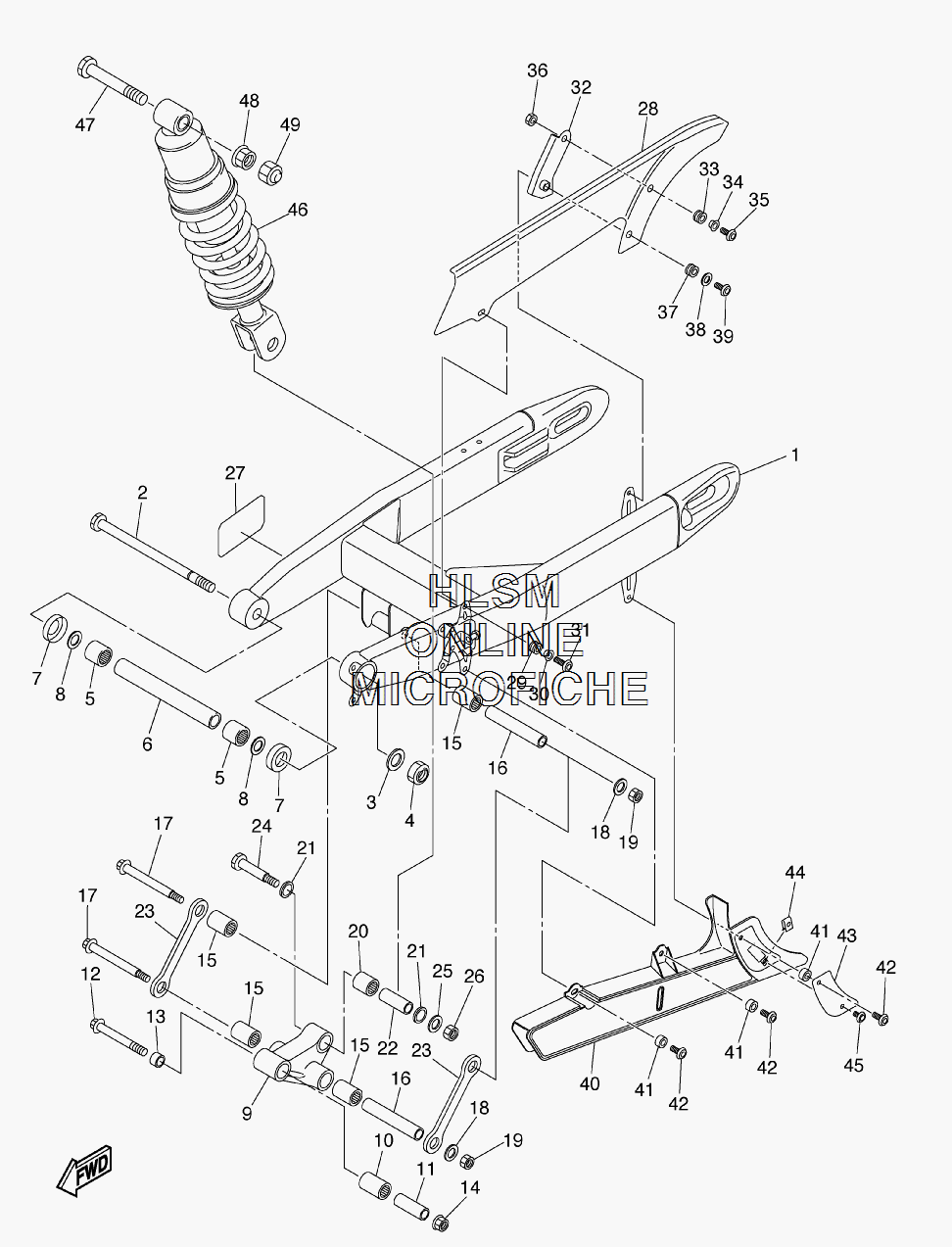

SUSPENSION - REAR ARM для Yamaha V STAR 1300 - 2008 года выпуска`
-
№АртикулНазвание
-
13D8-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
23D8-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
390201-16018-00 WASHER, PLATEWASHER, PLATE
-
490185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
593320-32403-00 BEARING, CYL.#20BEARING, CYL.#20
-
63D8-22124-00-00 BUSH 2BUSH 2
-
75EL-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
890201-243U9-00 WASHER, PLATEWASHER, PLATE
-
93D8-2217A-00-00 ARM, RELAYARM, RELAY
-
1093317-42060-00 BEARING, CYL.#17BEARING, CYL.#17
-
1190387-100T8-00 COLLARCOLLAR
-
1290105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10049-00 COLLARCOLLAR
-
1495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1593317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
1690387-126T1-00 COLLARCOLLAR
-
1790101-12027-00 BOLTBOLT
-
1890201-12045-00 WASHER, PLATEWASHER, PLATE
-
1995612-12100-00 NUT, UNUT, U
-
2093317-31771-00 BEARINGBEARING
-
2193109-17071-00 OIL SEALOIL SEAL
-
2290387-127W0-00 COLLARCOLLAR
-
233D8-2217M-00-00 ARM 1ARM 1
-
2490109-10024-00 BOLTBOLT
-
2590201-10035-00 WASHER, PLATEWASHER, PLATE
-
2695612-10100-00 NUT, UNUT, U
-
275PX-21652-00-00 PROTECTORPROTECTOR
-
283D8-22311-00-00 CASE, CHAINCASE, CHAIN
-
2990480-13004-00 GROMMETGROMMET
-
3090387-06171-00 COLLARCOLLAR
-
3190149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
323D8-2213J-00-00 STAY, CHAIN CASESTAY, CHAIN CASE
-
3390480-13004-00 GROMMETGROMMET
-
3490387-06171-00 COLLARCOLLAR
-
3590111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3695302-06600-00 NUTNUT
-
3790480-13004-00 GROMMETGROMMET
-
3890201-06095-00 WASHER, PLATEWASHER, PLATE
-
3990149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
403D8-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
4190387-06372-00 COLLARCOLLAR
-
4290149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
435PX-22341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4490183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
4590111-06078-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
463D8-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
4790109-10028-00 BOLTBOLT
-
4895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
495YU-2143A-00-00 CAPCAP
