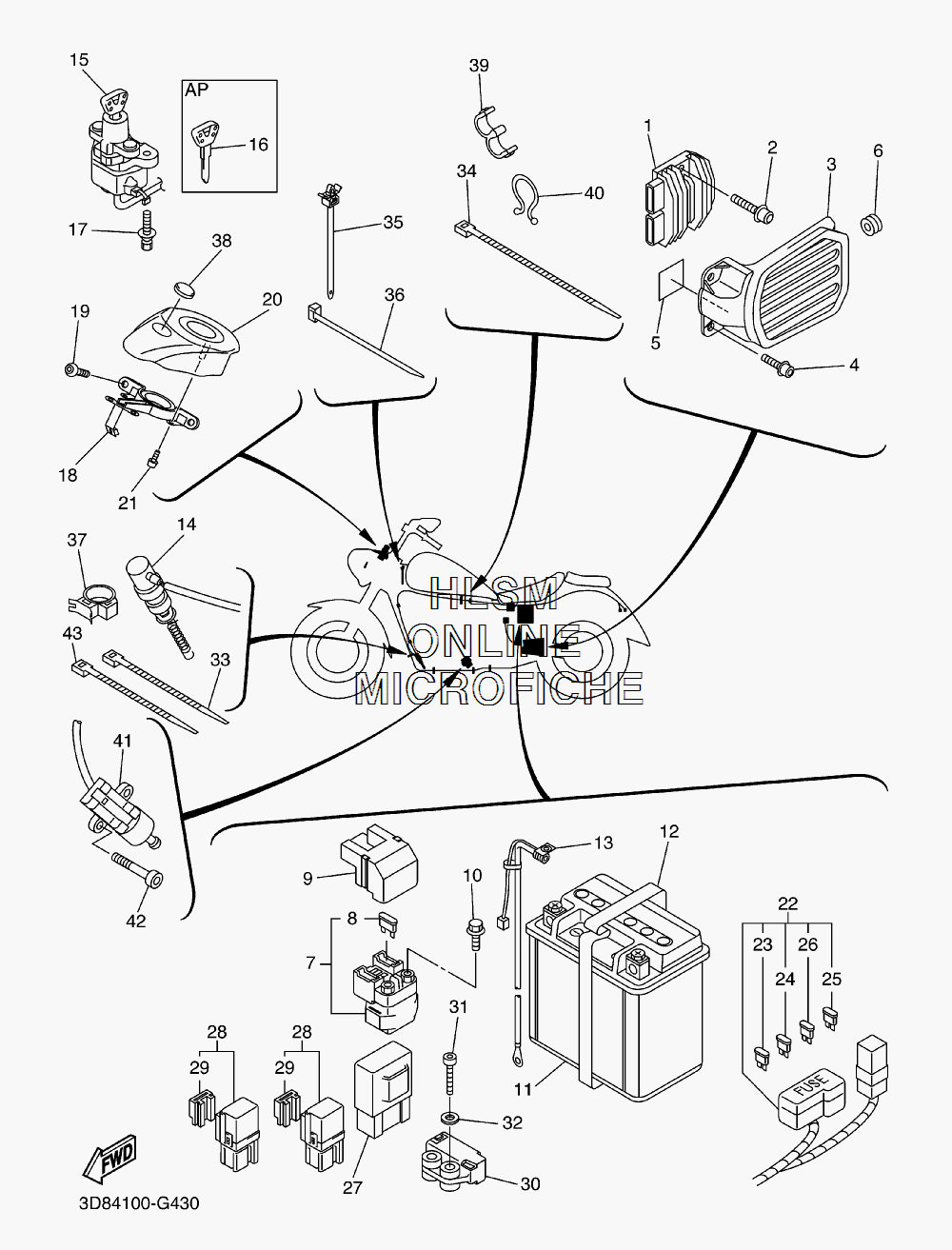

ELECTRICAL 2 для Yamaha V STAR 1300 - 2008 года выпуска`
-
№АртикулНазвание
-
11D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
290110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
33D8-21247-00-00 CASE, REGULATORCASE, REGULATOR
-
490110-06215-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52GH-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
690480-12550-00 GROMMETGROMMET
-
73D8-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
842X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
95SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
11BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
124AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
133D8-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
143D8-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
153D8-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
164BH-82511-09-00 BLANK KEYBLANK KEY
-
1790109-080G5-00 BOLTBOLT
-
183D8-2334G-00-00 BRACKET 1BRACKET 1
-
1992012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
203D8-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
2197702-40016-00 SCREW, TRUSSSCREW, TRUSS
-
223D8-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
235JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
245JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
255JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
255JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
265JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
275KS-81950-30-00 RELAY ASSYRELAY ASSY
-
285EA-81950-20-00 RELAY ASSYRELAY ASSY
-
295EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
305PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3190110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3290201-04027-00 WASHER, PLATEWASHER, PLATE
-
331UA-82591-00-00 BANDBAND
-
3490464-15152-00 CLAMPCLAMP
-
3590464-12089-00 CLAMPCLAMP
-
365Y9-12491-00-00 CLAMP 1CLAMP 1
-
3790464-10190-00 CLAMPCLAMP
-
383D8-2341B-00-00 EMBLEMEMBLEM
-
3990464-10M57-00 CLAMPCLAMP
-
4090464-16039-00 CLAMPCLAMP
-
413D8-82566-B0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4290110-05033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
433MA-82591-00-00 BANDBAND
