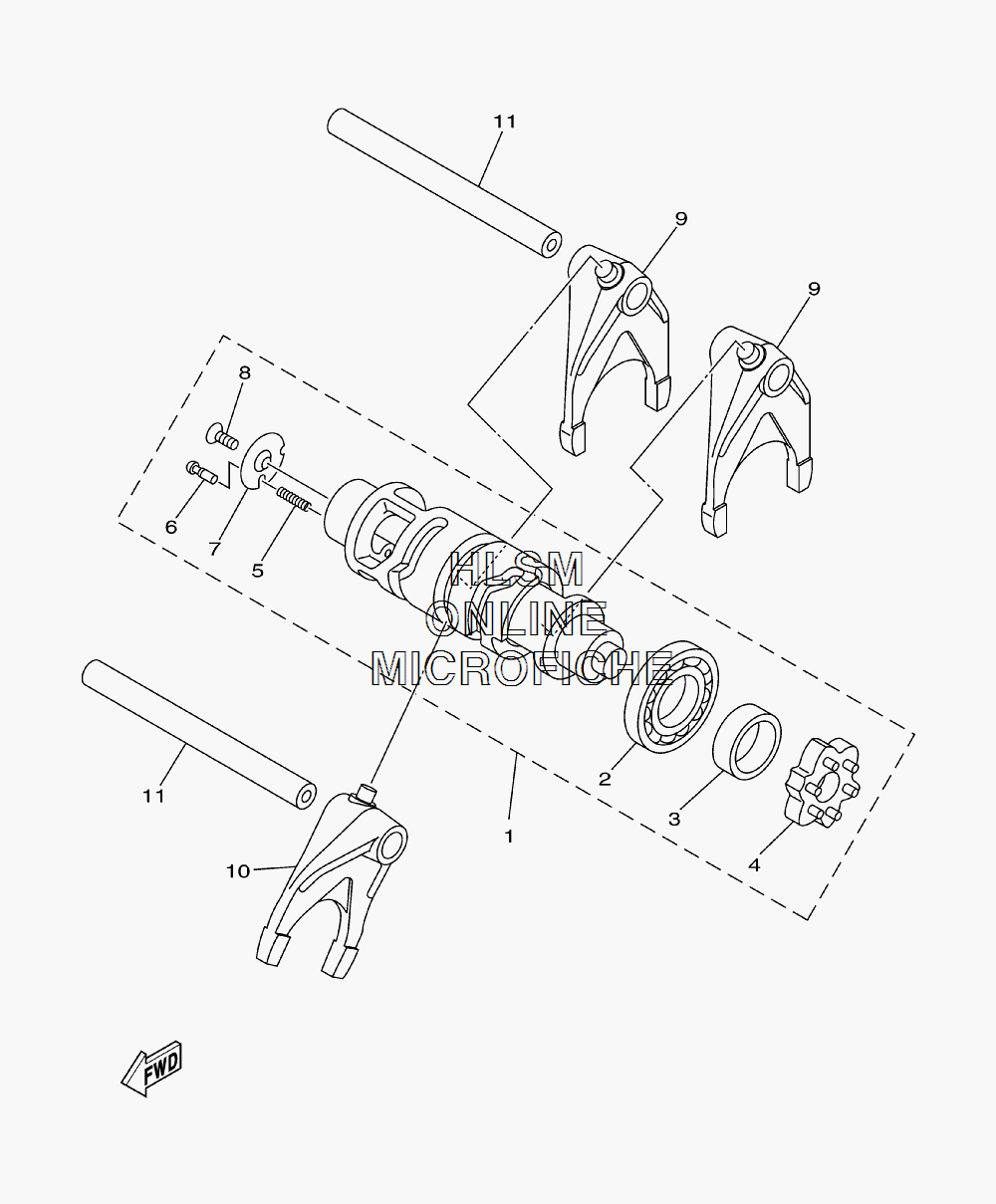

SHIFT CAM W/ FORK для Yamaha ROADLINER S - 2008 года выпуска`
-
№АртикулНазвание
-
11D7-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293316-00501-00 ...BEARING, CYL.#16...BEARING, CYL.#16
-
390387-25003-00 ...COLLAR...COLLAR
-
44XV-18185-00-00 ...SEGMENT...SEGMENT
-
590501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
64UN-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
74UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
890149-05016-00 ...SCREW...SCREW
-
91D7-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
101D7-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
114NK-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
