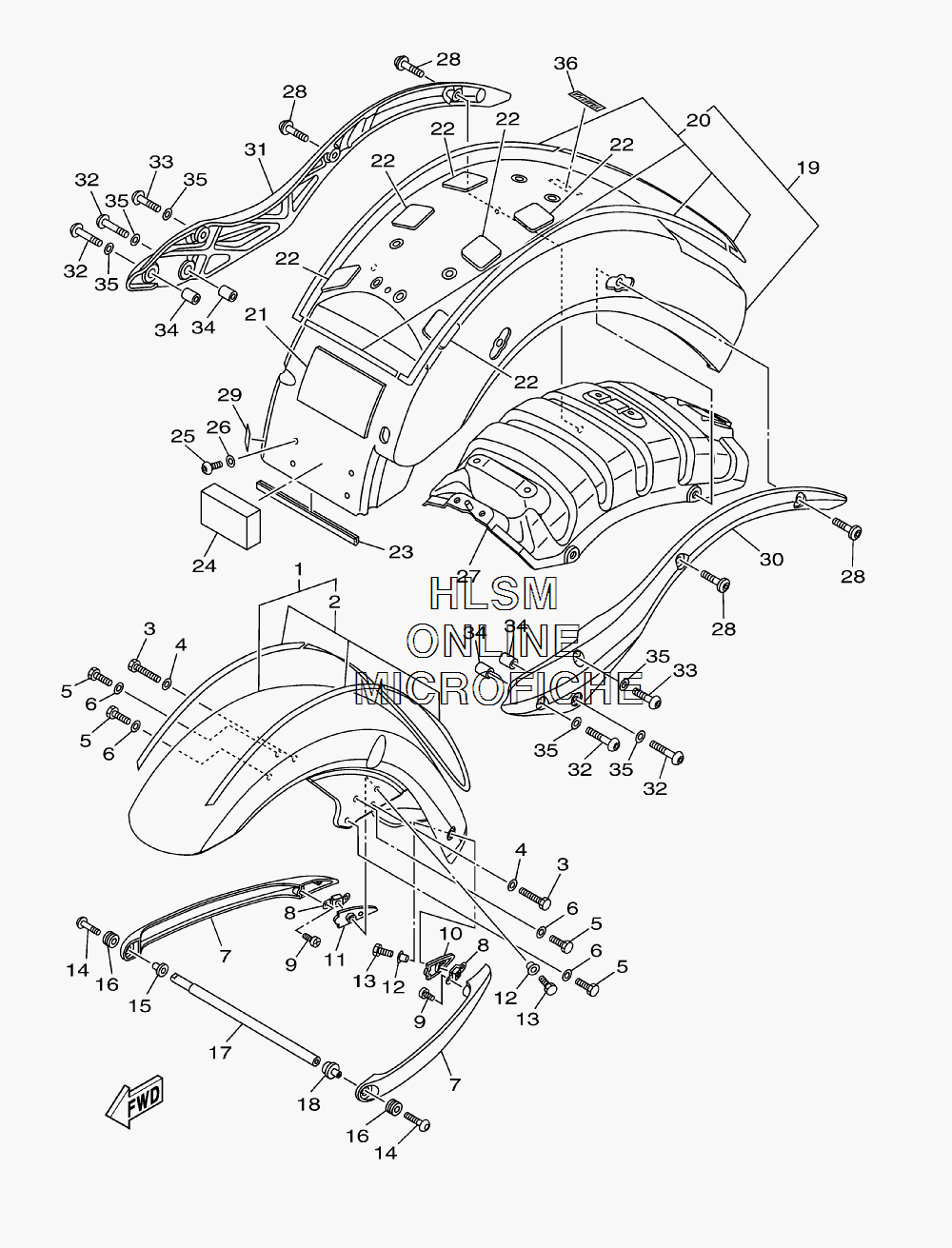

FENDER - FRONT / REAR для Yamaha ROADLINER S - 2008 года выпуска`
-
№АртикулНазвание
-
11D7-Y2151-90-P8 FRONT FENDER COMP. (FOR LYNM9)FRONT FENDER COMP. (FOR LYNM9)
-
11D7-Y2151-A0-3X FRONT FENDER COMP. (FOR DRMK)FRONT FENDER COMP. (FOR DRMK)
-
21D7-21570-90-00 ...GRAPHIC SET, FRONT FENDER (FOR LYNM9)...GRAPHIC SET, FRONT FENDER (FOR LYNM9)
-
21D7-21570-A0-00 ...GRAPHIC SET, FRONT FENDER (FOR DRMK)...GRAPHIC SET, FRONT FENDER (FOR DRMK)
-
397027-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
492907-08600-00 WASHER, PLATE (6TA)WASHER, PLATE (6TA)
-
597027-08016-00 BOLTBOLT
-
692907-08600-00 WASHER (6TA)WASHER (6TA)
-
71D7-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
81D7-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
997707-40610-00 SCREW, TAPPINGSCREW, TAPPING
-
101D7-21541-00-00 DAMPER 1DAMPER 1
-
111D7-21542-00-00 DAMPER 2DAMPER 2
-
1290387-087L0-00 COLLARCOLLAR
-
1397012-06014-00 BOLTBOLT
-
1490110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590387-06125-00 COLLARCOLLAR
-
1690480-14323-00 GROMMETGROMMET
-
171D7-21544-00-00 COLLAR 1COLLAR 1
-
181D7-21545-00-00 PLATE 3PLATE 3
-
191D7-Y2161-90-P8 REAR FENDER COMP. (FOR LYNM9)REAR FENDER COMP. (FOR LYNM9)
-
191D7-Y2161-A0-3X REAR FENDER COMP. (FOR DRMK)REAR FENDER COMP. (FOR DRMK)
-
201D7-2165A-90-00 ...GRAPHIC SET, REAR FENDER (FOR LYNM9)...GRAPHIC SET, REAR FENDER (FOR LYNM9)
-
201D7-2165A-A0-00 ...GRAPHIC SET, REAR FENDER (FOR DRMK)...GRAPHIC SET, REAR FENDER (FOR DRMK)
-
215PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
225PX-21669-01-00 SEALSEAL
-
231D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
241D7-21639-00-00 DAMPER 2DAMPER 2
-
2590111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690201-06036-00 WASHER, PLATEWASHER, PLATE
-
271D7-21643-00-00 STAY, REARSTAY, REAR
-
2890111-08033-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
293FY-21575-01-00 SEAL 1SEAL 1
-
301D7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
311D7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
3292014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3499530-14016-00 PIN, DOWEL (59V)PIN, DOWEL (59V)
-
3590201-10M63-00 WASHER, PLATEWASHER, PLATE
-
361D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
