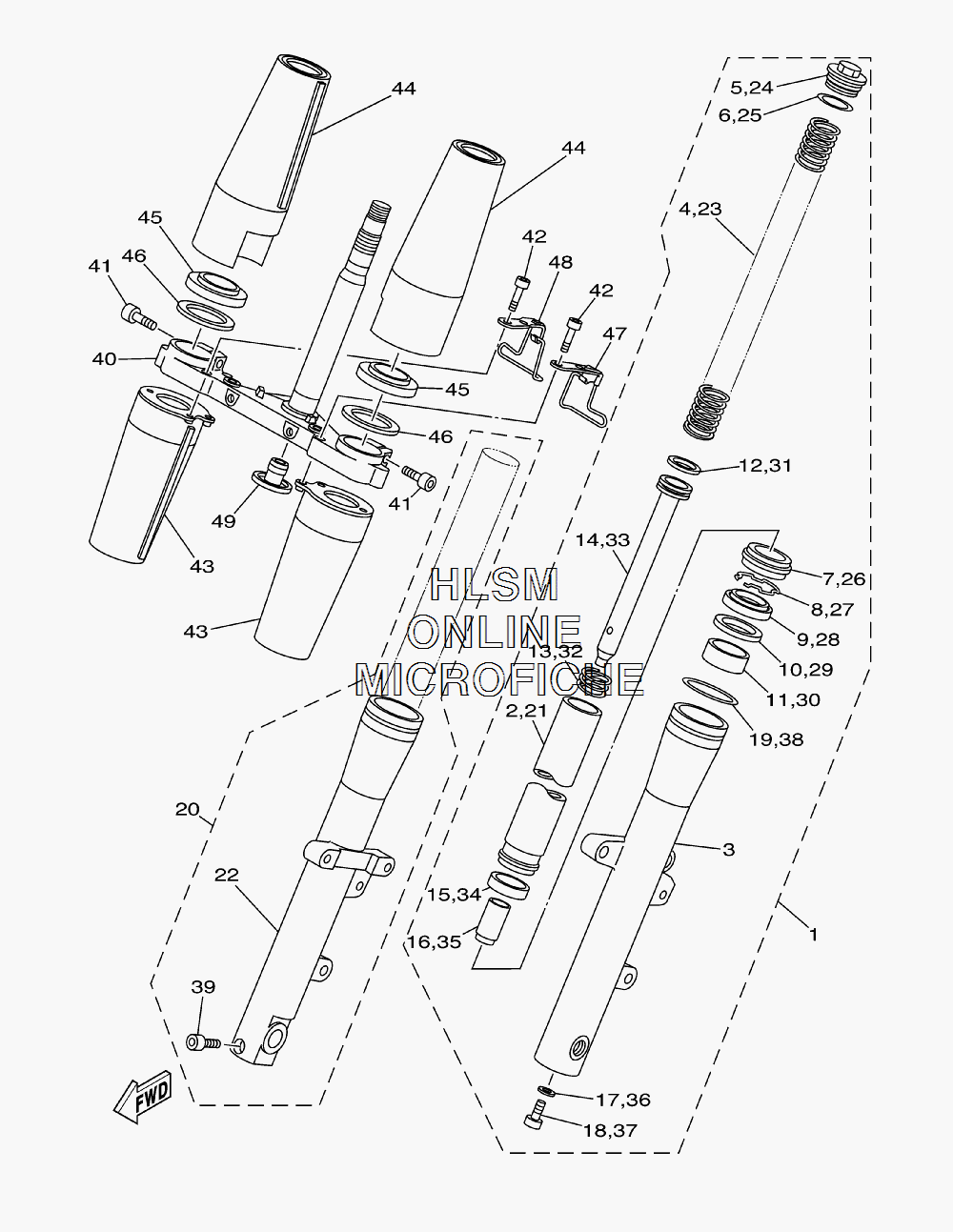

SUSPENSION - FRONT FORK для Yamaha ROAD STAR XW - 2008 года выпуска`
-
№АртикулНазвание
-
14WM-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24WM-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
34NK-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
44WM-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
54WM-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
64NK-23147-00-00 ...O-RING...O-RING
-
74NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
834L-23153-00-00 ...RING, SNAP...RING, SNAP
-
94NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
104NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
114NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
124NK-23157-00-00 ...RING, PISTON FRONT FORK...RING, PISTON FRONT FORK
-
134NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
144WM-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
154NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
164WM-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
173MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
184NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
194NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
204WM-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
214WM-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
224NK-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
234WM-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
244WM-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
254NK-23147-00-00 ...O-RING...O-RING
-
264NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2734L-23153-00-00 ...RING, SNAP...RING, SNAP
-
284NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
294NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
304NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
314NK-23157-00-00 ...RING, PISTON...RING, PISTON
-
324NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
334WM-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
344NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
354WM-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
363MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
374NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
384NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
391KT-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
404WM-23340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4138W-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
424NK-23181-10-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
434WM-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
444NK-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
454NK-23163-00-00 GASKETGASKET
-
464NK-23165-00-00 WASHER, FELTWASHER, FELT
-
474WM-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
484WM-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
494KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
