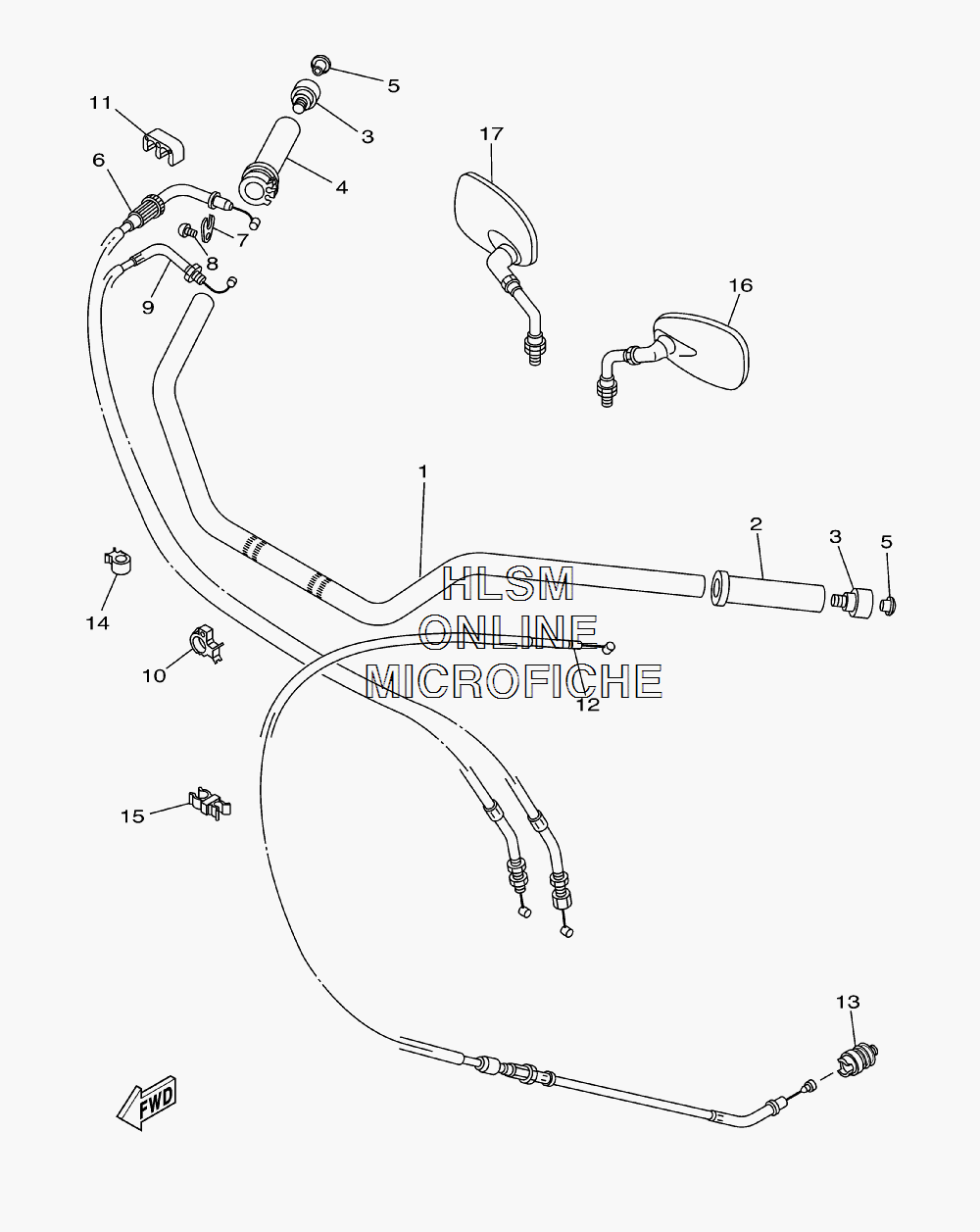

HANDLEBAR W/ CABLES для Yamaha ROAD STAR XW - 2008 года выпуска`
-
№АртикулНазвание
-
15VN-26111-10-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35EL-26246-00-00 END, GRIPEND, GRIP
-
44XY-26240-00-00 GRIP ASSYGRIP ASSY
-
590338-10164-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
65VN-26311-20-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75H0-26393-00-00 HOLDERHOLDER
-
898507-05008-00 SCREW, PAN HEAD (JN2)SCREW, PAN HEAD (JN2)
-
95VN-26312-20-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1090464-25217-00 CLAMPCLAMP
-
1190464-07006-00 CLAMPCLAMP
-
125VN-26335-10-00 CABLE, CLUTCHCABLE, CLUTCH
-
131E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1490464-10190-00 CLAMPCLAMP
-
1590464-09014-00 CLAMPCLAMP
-
164NK-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
174NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- • HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE
- WHEEL - FRONT
- WHEEL - REAR
