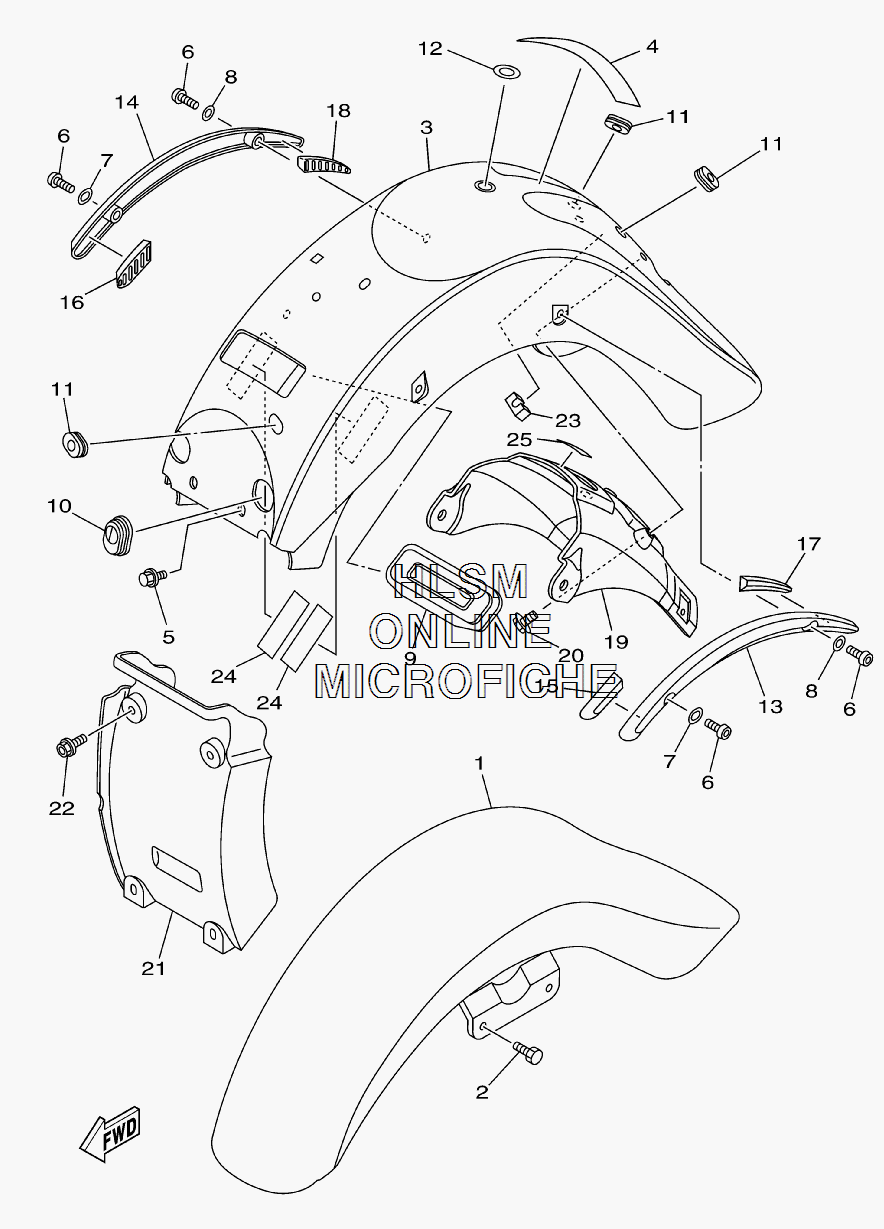

FENDER - FRONT / REAR для Yamaha ROAD STAR XL - 2008 года выпуска
-
№АртикулНазвание
-
15VN-YK215-00-PB FRONT FENDER COMP. FOR DPBMLFRONT FENDER COMP. FOR DPBML
-
291314-08025-00 BOLTBOLT
-
35VN-Y2161-G0-P5 REAR FENDER COMP. FOR DPBMLREAR FENDER COMP. FOR DPBML
-
41D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690111-08009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
75VN-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
85VN-21616-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
94WM-21649-00-00 DAMPERDAMPER
-
104WM-21638-00-00 DAMPER 1DAMPER 1
-
1190480-01015-00 GROMMETGROMMET
-
125VN-21735-00-00 SEAL 2SEAL 2
-
134WM-2164F-00-00 STAY 1STAY 1
-
144WM-2164G-00-00 STAY 2STAY 2
-
154WM-21541-00-00 DAMPER 1DAMPER 1
-
164WM-21542-00-00 DAMPER 2DAMPER 2
-
174WM-2174X-00-00 DAMPERDAMPER
-
184WM-2174Y-00-00 DAMPERDAMPER
-
195VN-21643-00-00 STAY, REARSTAY, REAR
-
2090105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
214WM-21629-00-PH GUARD, MUD FOR DPBMLGUARD, MUD FOR DPBML
-
2290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
235VN-21639-10-00 DAMPER 2DAMPER 2
-
245PW-23472-00-00 PROTECTORPROTECTOR
-
254U5-2317J-00-00 DAMPER 1DAMPER 1
