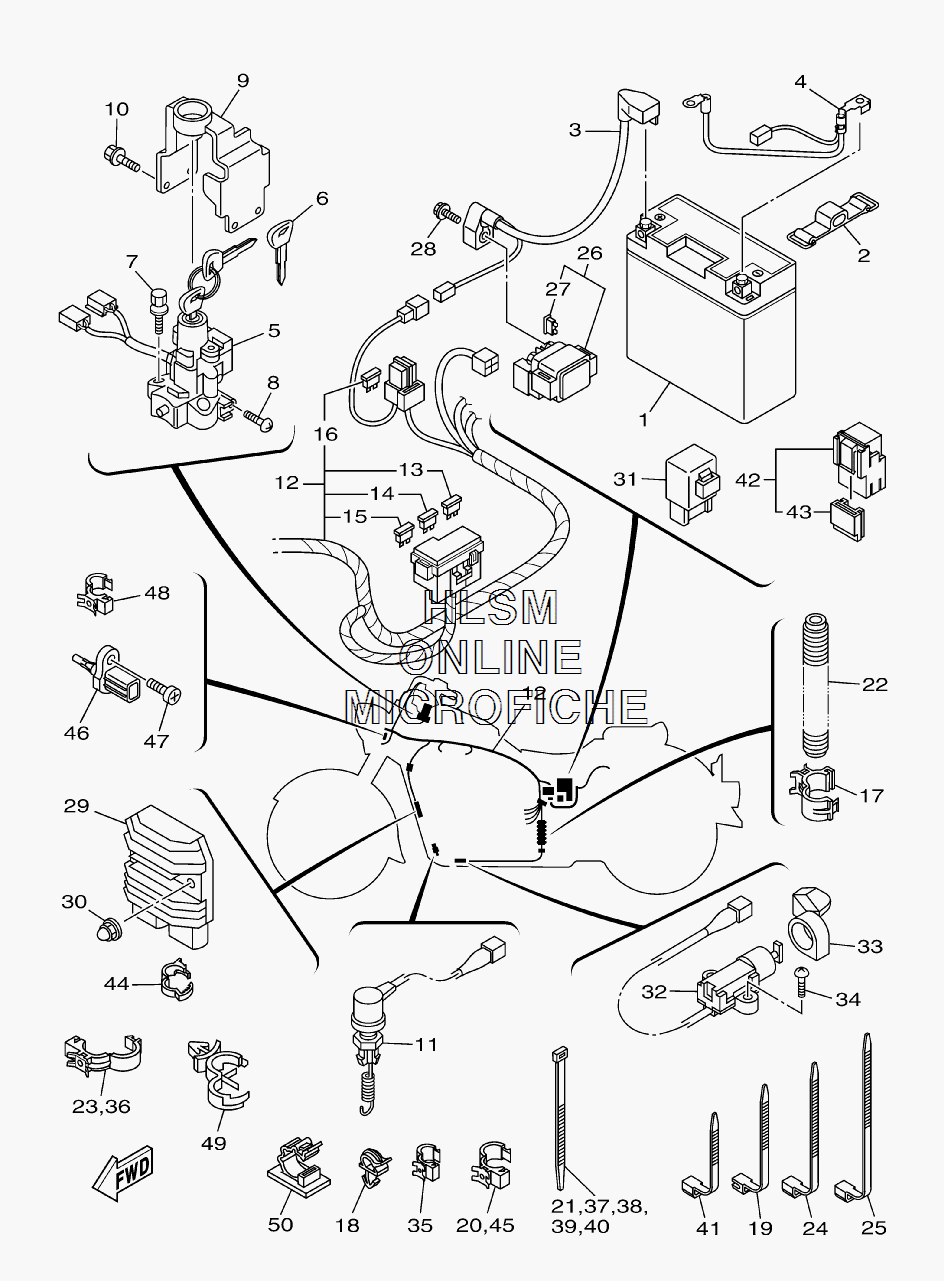

ELECTRICAL 2 для Yamaha ROAD STAR XL - 2008 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
226L-82131-00-00 BAND, BATTERYBAND, BATTERY
-
35VN-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
45VN-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
55VN-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
65PX-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
790109-080G5-00 BOLTBOLT
-
898507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
94WM-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
1090105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
115VN-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
125VN-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
125VN-82590-50-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
135JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
145JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
155JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
165JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
1790464-20191-00 CLAMPCLAMP
-
1890464-08263-00 CLAMPCLAMP
-
1990464-15195-00 CLAMPCLAMP
-
2090464-15192-00 CLAMPCLAMP
-
211UA-82591-00-00 BANDBAND
-
224WM-82139-00-00 TUBETUBE
-
2390464-20191-00 CLAMPCLAMP
-
2490464-12045-00 BAND,SWITCH CORDBAND,SWITCH CORD
-
2590460-15126-00 CLAMP, HOSECLAMP, HOSE
-
265VN-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2736Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
2895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
291D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3090176-06055-00 NUT, CROWNNUT, CROWN
-
315VK-81950-30-00 RELAY ASSYRELAY ASSY
-
323D8-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
334WM-8252U-00-00 COVERCOVER
-
3490157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3590464-10190-00 CLAMPCLAMP
-
3690464-20191-00 CLAMPCLAMP
-
371UA-82591-00-00 BANDBAND
-
381UA-82591-00-00 BANDBAND
-
391UA-82591-00-00 BANDBAND
-
401UA-82591-00-00 BANDBAND
-
4190464-25004-00 CLAMPCLAMP
-
425EA-81950-20-00 RELAY ASSYRELAY ASSY
-
435EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
4490464-16003-00 CLAMPCLAMP
-
4590464-15192-00 CLAMPCLAMP
-
465YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4798507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4890464-08189-00 CLAMPCLAMP
-
4990464-07209-00 CLAMPCLAMP
-
5090464-20014-00 CLAMPCLAMP
