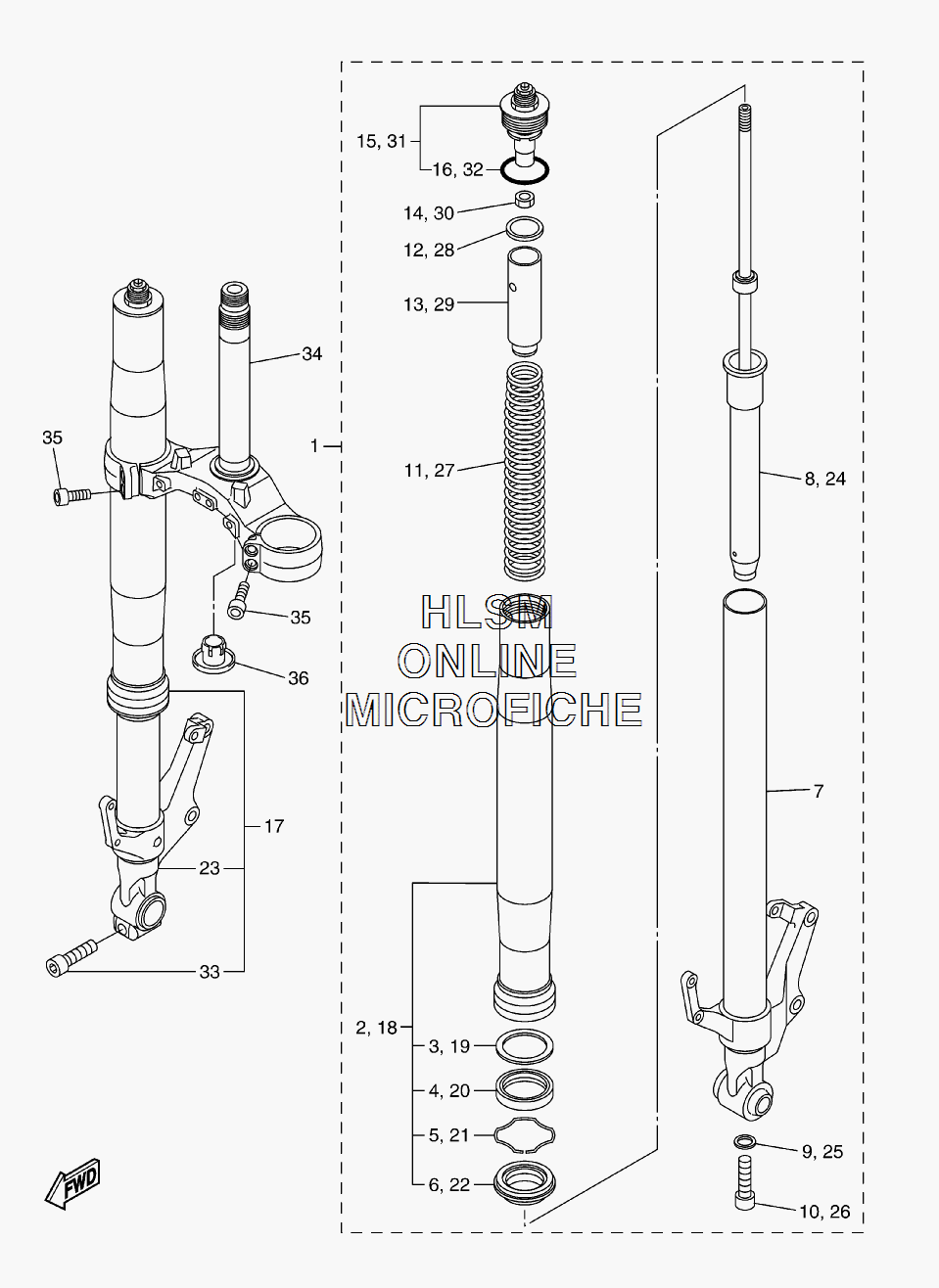

SUSPENSION - FRONT FORK для Yamaha FZ1 - 2008 года выпуска`
-
№АртикулНазвание
-
12D1-23102-11-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22D1-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
34V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
44PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
54V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
64PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
72D1-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
82D1-23170-11-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET...GASKET
-
103D8-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
112D1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
125VY-12277-00-00 ...WASHER...WASHER
-
135VY-23118-00-00 ...SPACER...SPACER
-
143LC-23357-00-00 ...NUT...NUT
-
152D1-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
163XJ-23147-L0-00 ...O-RING...O-RING
-
172D1-23103-11-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
182D1-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
194V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
204PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
214V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
224PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
232D1-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
242D1-23170-01-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
25509-23158-L0-00 ...GASKET...GASKET
-
263D8-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
272D1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
285VY-12277-00-00 ...WASHER...WASHER
-
295VY-23118-00-00 ...SPACER...SPACER
-
303LC-23357-00-00 ...NUT...NUT
-
312D1-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
323XJ-23147-L0-00 ...O-RING...O-RING
-
3391314-08040-00 ...BOLT (3JP)...BOLT (3JP)
-
342D1-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3591314-08030-00 BOLT (3BM)BOLT (3BM)
-
364KM-23123-01-00 COVER, LOWER 1COVER, LOWER 1
