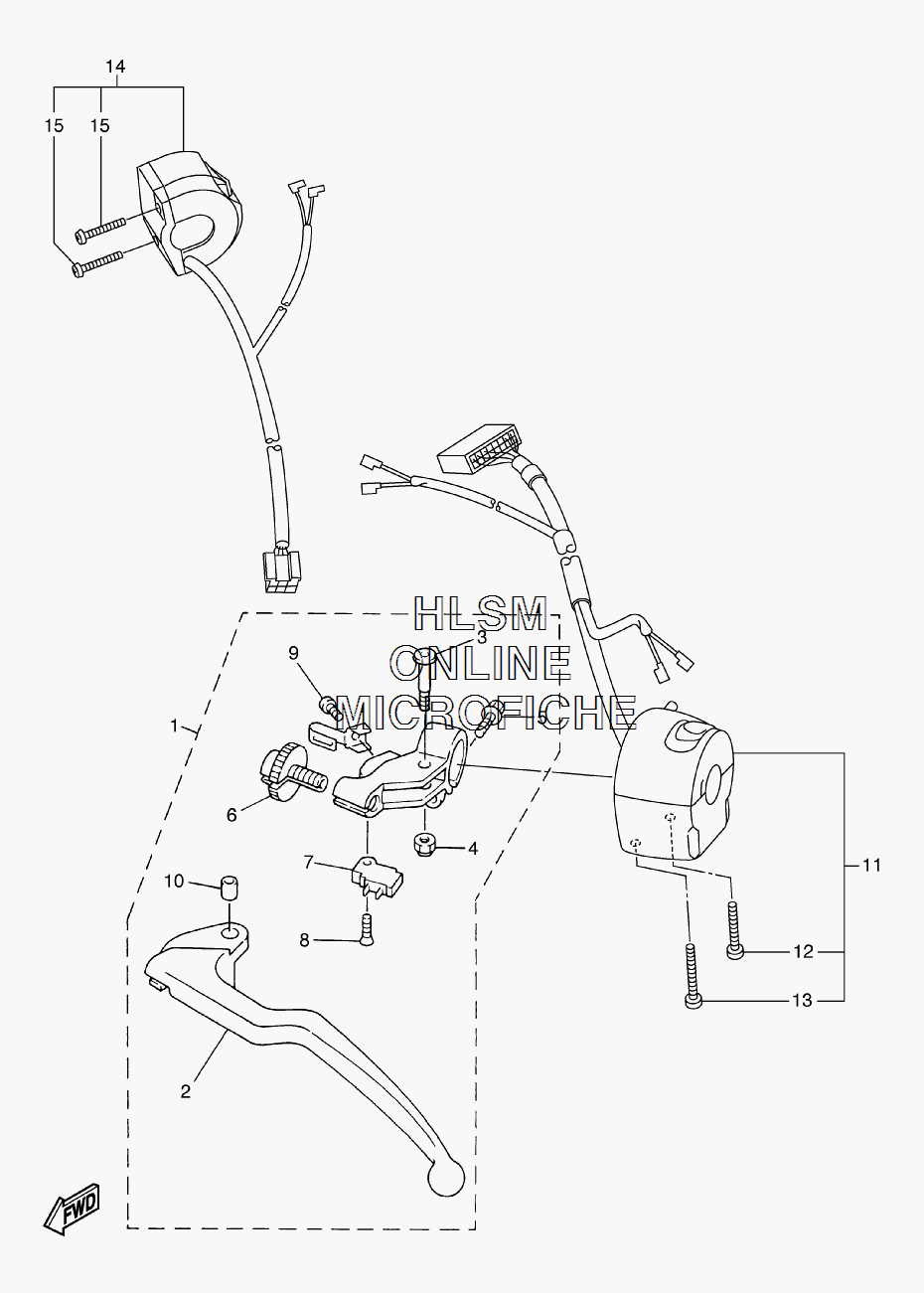

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ1 - 2008 года выпуска`
-
№АртикулНазвание
-
14XV-82910-15-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24XV-83912-11-00 ...LEVER 1...LEVER 1
-
32C0-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
495607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
595027-06020-00 ...BOLT, FLANGE (6U1)...BOLT, FLANGE (6U1)
-
65LV-83951-00-00 ...BOLT, CABLE ADJUSTING...BOLT, CABLE ADJUSTING
-
74XV-82917-01-00 ...SWITCH...SWITCH
-
898707-03016-00 ...SCREW, OVAL HEAD...SCREW, OVAL HEAD
-
998507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
105JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
113C3-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1298507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1398507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
142D1-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1598507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
