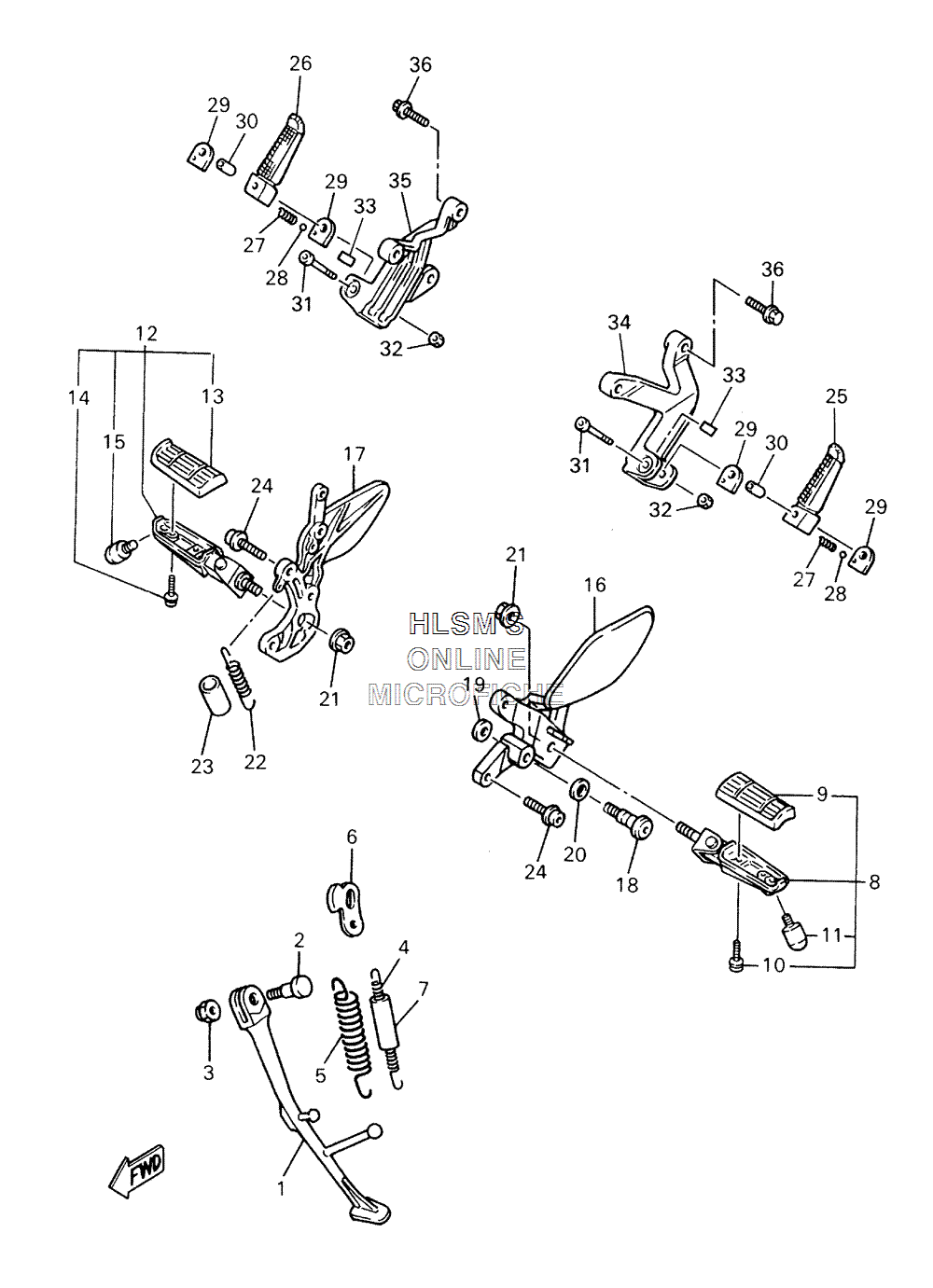

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZF600R - 2006 года выпуска`
-
№АртикулНазвание
-
14FM-27311-00-00 STAND, SIDESTAND, SIDE
-
290109-104E6-00 BOLTBOLT
-
390185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490506-18224-00 SPRING, TENSIONSPRING, TENSION
-
590506-26225-00 SPRING, TENSIONSPRING, TENSION
-
64FM-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
71TX-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
84JH-27410-01-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
93YX-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1090157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
113HE-27435-00-00 ...BOLT...BOLT
-
124JH-27420-01-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
133YX-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1490157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
153HE-27435-00-00 ...BOLT...BOLT
-
164FM-27442-02-00 BRACKET 2BRACKET 2
-
174FM-27443-02-00 BRACKET 3BRACKET 3
-
182YK-27434-01-00 BOLTBOLT
-
1990201-08326-00 WASHER, PLATEWASHER, PLATE
-
2090206-12074-00 WASHER, WAVEWASHER, WAVE
-
2190179-10247-00 NUTNUT
-
2290506-20377-00 SPRING, TENSIONSPRING, TENSION
-
2390446-17346-00 HOSEHOSE
-
2491314-08025-00 BOLTBOLT
-
253XV-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
263XV-27441-11-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
2790501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2893501-04011-00 BALL 1/4BALL 1/4
-
291HX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
3090387-064H8-00 COLLARCOLLAR
-
3195024-06045-00 BOLT, FLANGEBOLT, FLANGE
-
3295604-06200-00 NUT, U FLANGENUT, U FLANGE
-
331HX-27415-00-00 PLATE, DAMPERPLATE, DAMPER
-
344JH-2741L-03-00 BRACKET 4BRACKET 4
-
354JH-2742L-10-00 BRACKET 5BRACKET 5
-
3695814-08035-00 BOLT, FLANGEBOLT, FLANGE
