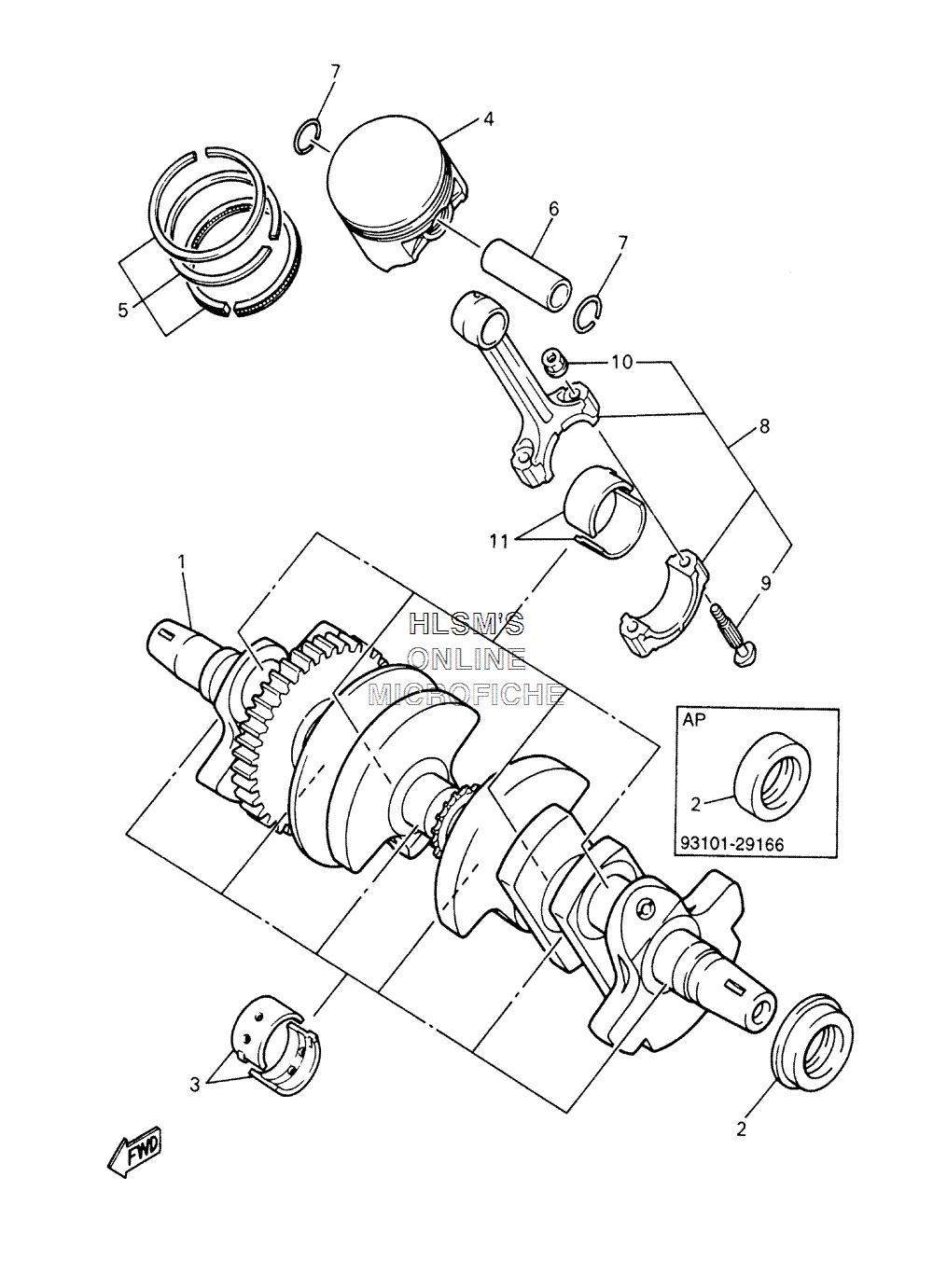

CRANKSHAFT - PISTON для Yamaha YZF600R - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    4TV-11411-00-00 CRANKSHAFT
    CRANKSHAFT
  • 2
    93101-29165-00 OIL SEAL, S-TYPE (STD)
    OIL SEAL, S-TYPE (STD)
  • 2
    93101-29166-00 OIL SEAL, S-TYPE (OPT)
    OIL SEAL, S-TYPE (OPT)
  • 3
    4TV-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
  • 3
    4TV-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
  • 3
    4TV-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
  • 3
    4TV-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
  • 3
    4TV-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
  • 3
    4TV-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
  • 4
    4TV-11631-00-00 PISTON (STD)
    PISTON (STD)
  • 5
    4JH-11603-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 6
    4JH-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 7
    90468-12069-00 CLIP
    CLIP
  • 8
    4JH-11650-00-00 CONNECTING ROD ASSY
    CONNECTING ROD ASSY
  • 9
    4JH-11654-00-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 10
    90179-07652-00 ...NUT, SPEC'L SHAPE
    ...NUT, SPEC'L SHAPE
  • 11
    4TV-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
    PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
  • 11
    4TV-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
    PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
  • 11
    4TV-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
    PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
  • 11
    4TV-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
    PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
