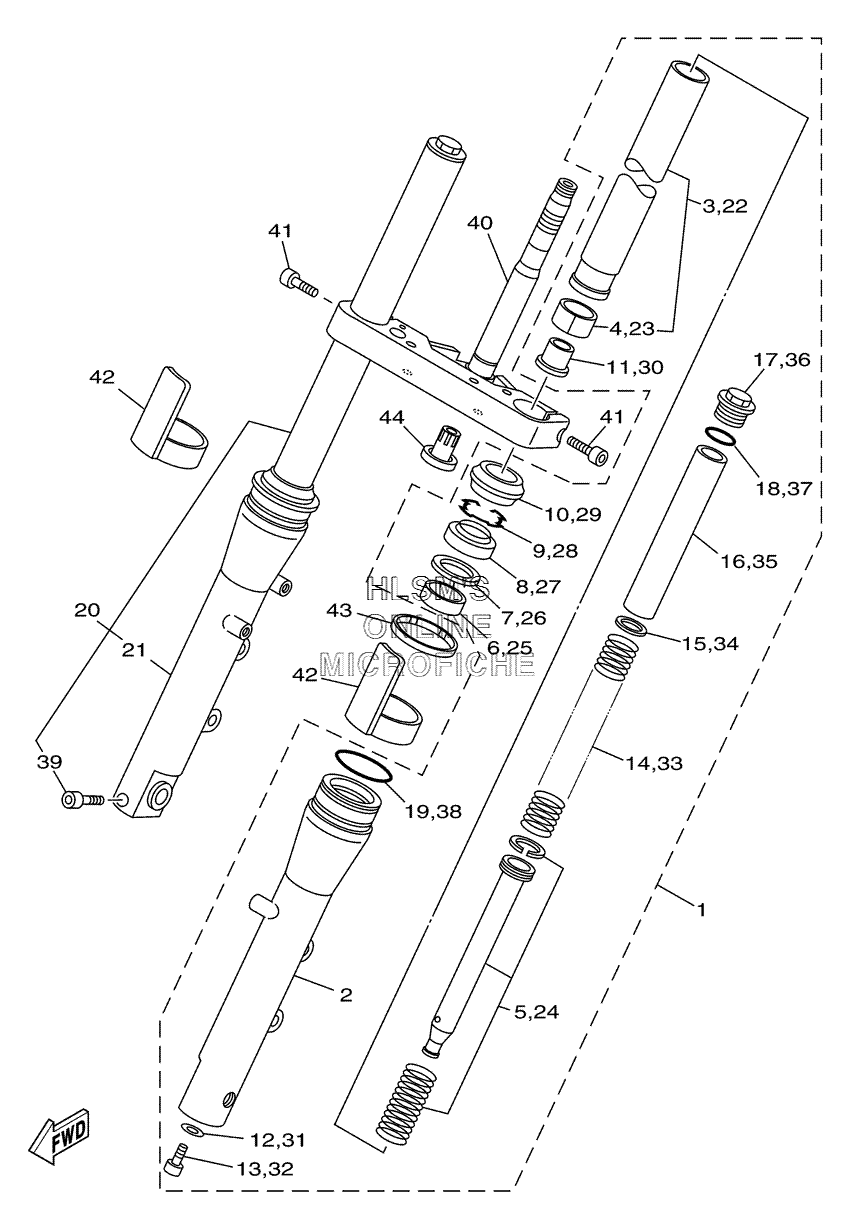

SUSPENSION - FRONT FORK для Yamaha V STAR 1100 CUSTOM W/FLAMES - 2006 года выпуска`
-
№АртикулНазвание
-
15PB-23102-03-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25PB-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35EL-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
45BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
55KS-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
84EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
926H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
104EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
114YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
12509-23158-L0-00 ...GASKET...GASKET
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
145KS-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
154DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
165PB-23118-00-00 ...SPACER...SPACER
-
173EN-23111-51-00 ...BOLT, CAP...BOLT, CAP
-
1843F-23188-10-00 ...O-RING...O-RING
-
195EL-23147-00-00 ...O-RING...O-RING
-
205PB-23103-03-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
215PB-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
225EL-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
235BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
245KS-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
254FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2636Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
274EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2826H-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
294EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
304YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
31509-23158-L0-00 ...GASKET...GASKET
-
32278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
335KS-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
344DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
355PB-23118-00-00 ...SPACER...SPACER
-
363EN-23111-51-00 ...BOLT, CAP...BOLT, CAP
-
3743F-23188-10-00 ...O-RING...O-RING
-
385EL-23147-00-00 ...O-RING...O-RING
-
3991314-08040-00 ...BOLT...BOLT
-
405PB-23340-01-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4191314-10030-00 BOLTBOLT
-
425EL-2331G-00-00 COVERCOVER
-
435EL-23376-00-00 STOPPERSTOPPER
-
445PB-23123-00-00 COVER, LOWER 1COVER, LOWER 1
