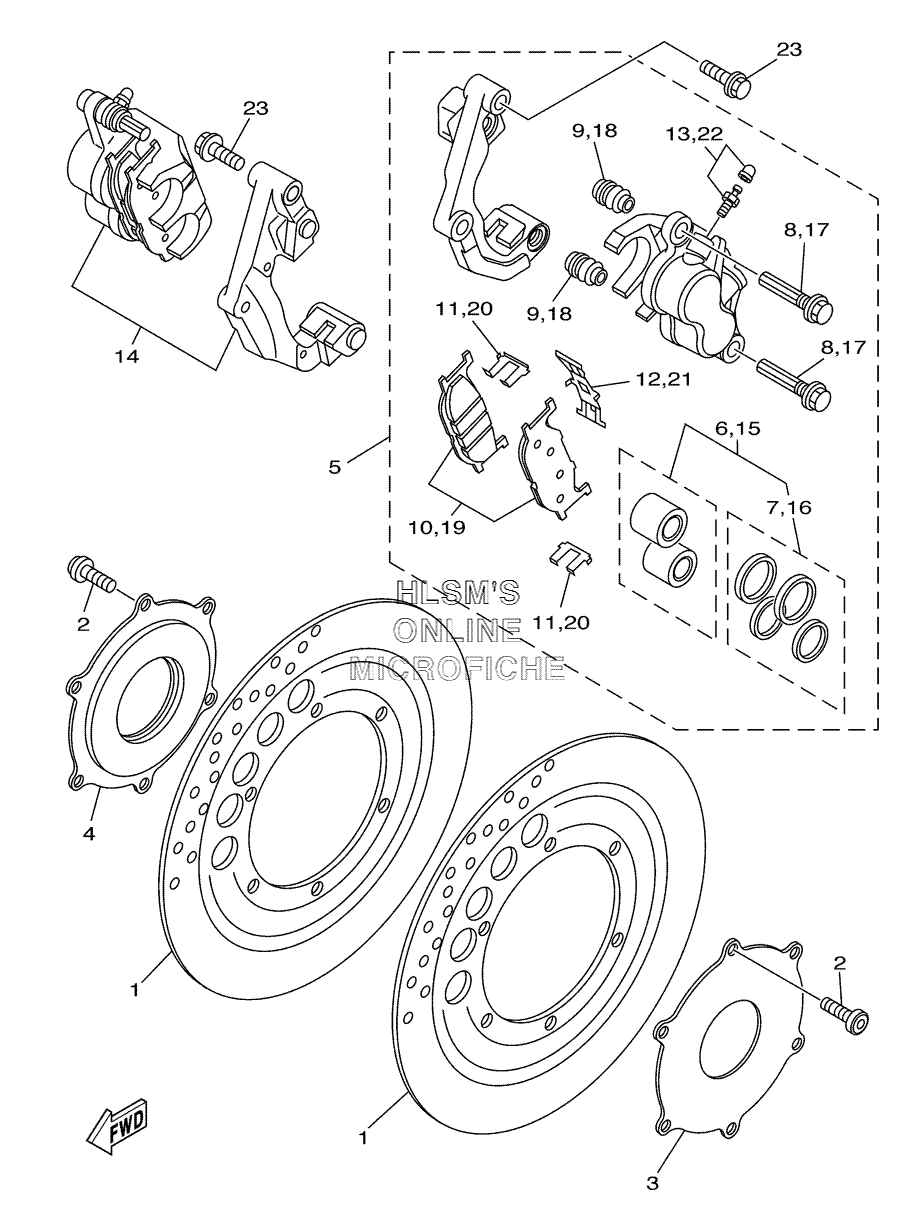

BRAKE - FRONT CALIPER для Yamaha V STAR 1100 CUSTOM W/FLAMES - 2006 года выпуска`
-
№АртикулНазвание
-
13JB-2582U-01-00 DISK, BRAKE (RIGHT)DISK, BRAKE (RIGHT)
-
290109-08006-00 BOLTBOLT
-
35EL-2514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
45EL-2515A-00-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
55KS-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
65KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
74FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
94TT-25937-00-00 ...BOOT 2...BOOT 2
-
104EB-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
114BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
123YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1351L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145KS-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
155KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
164FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
175JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
184TT-25937-00-00 ...BOOT 2...BOOT 2
-
194EB-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
213YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2251L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
