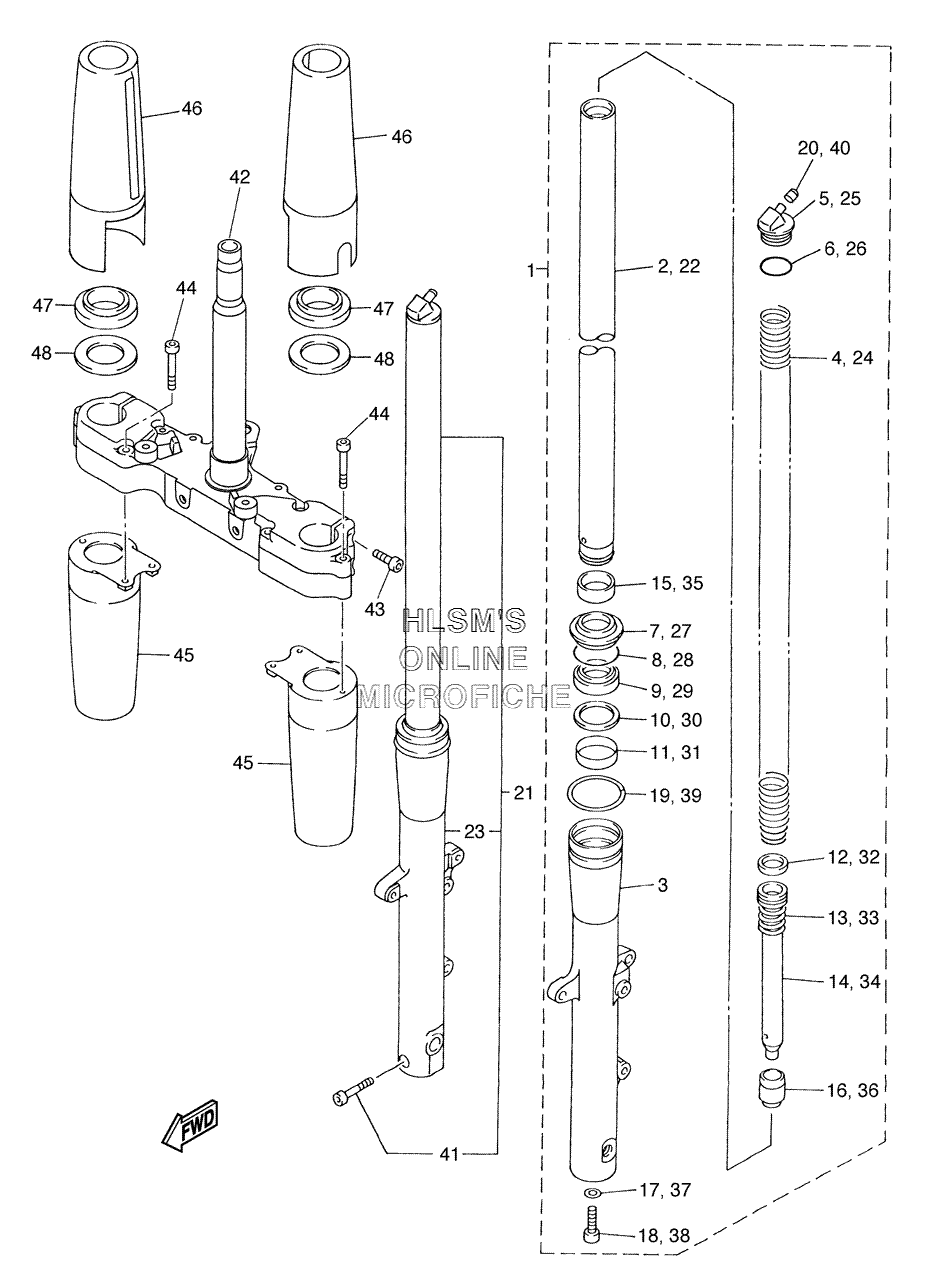

SUSPENSION - FRONT FORK для Yamaha ROYAL STAR MIDNIGHT TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
11D6-23102-10-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
24XY-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
35MB-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
41D6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
54XY-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
64NK-23147-00-00 ...O-RING...O-RING
-
74NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
834L-23153-00-00 ...RING, SNAP...RING, SNAP
-
94NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
104NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
114NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
124NK-23157-00-00 ...RING, PISTON...RING, PISTON
-
134NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
144WM-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
154NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
164WM-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
173MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
184NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
194NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
204V1-23184-L0-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
211D6-23103-10-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
224XY-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
235MB-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
241D6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
254XY-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
264NK-23147-00-00 ...O-RING...O-RING
-
274NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2834L-23153-00-00 ...RING, SNAP...RING, SNAP
-
294NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
304NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
314NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
324NK-23157-00-00 ...RING, PISTON...RING, PISTON
-
334NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
344WM-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
354NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
364WM-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
373MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
384NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
394NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
404V1-23184-L0-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
411KT-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
421D6-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4338W-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
444XY-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
454NK-23123-10-00 COVER, LOWER 1COVER, LOWER 1
-
461D6-23121-10-00 COVER, UPPER 1COVER, UPPER 1
-
474NK-23163-00-00 GASKETGASKET
-
484NK-23165-00-00 WASHER, FELTWASHER, FELT
