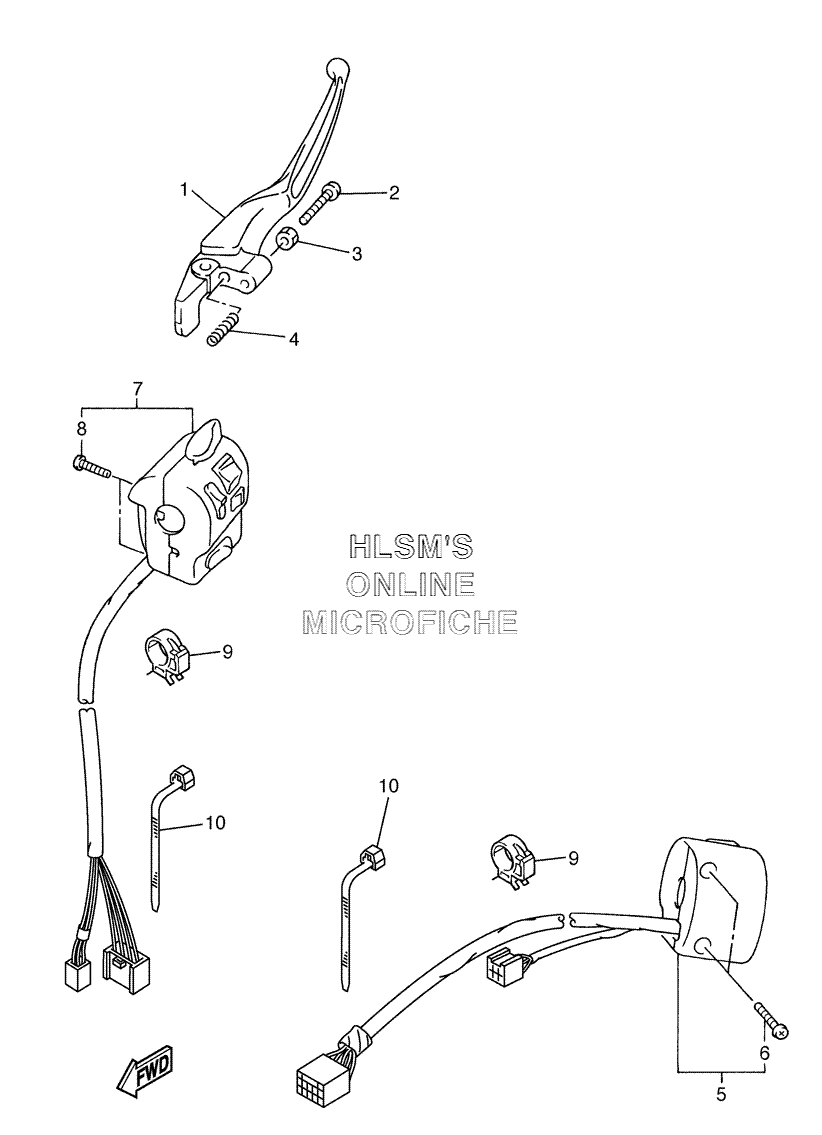

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROYAL STAR MIDNIGHT TOUR DELUXE - 2006 года выпуска`
-
№АртикулНазвание
-
11D6-83922-00-00 LEVER 2LEVER 2
-
290149-06131-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
390170-06010-00 NUTNUT
-
490501-10510-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
51D6-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
698504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
71D6-83969-10-00 SWITCH, HANDLE 5SWITCH, HANDLE 5
-
898504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
990464-20191-00 CLAMPCLAMP
-
1090464-13073-00 CLAMPCLAMP
