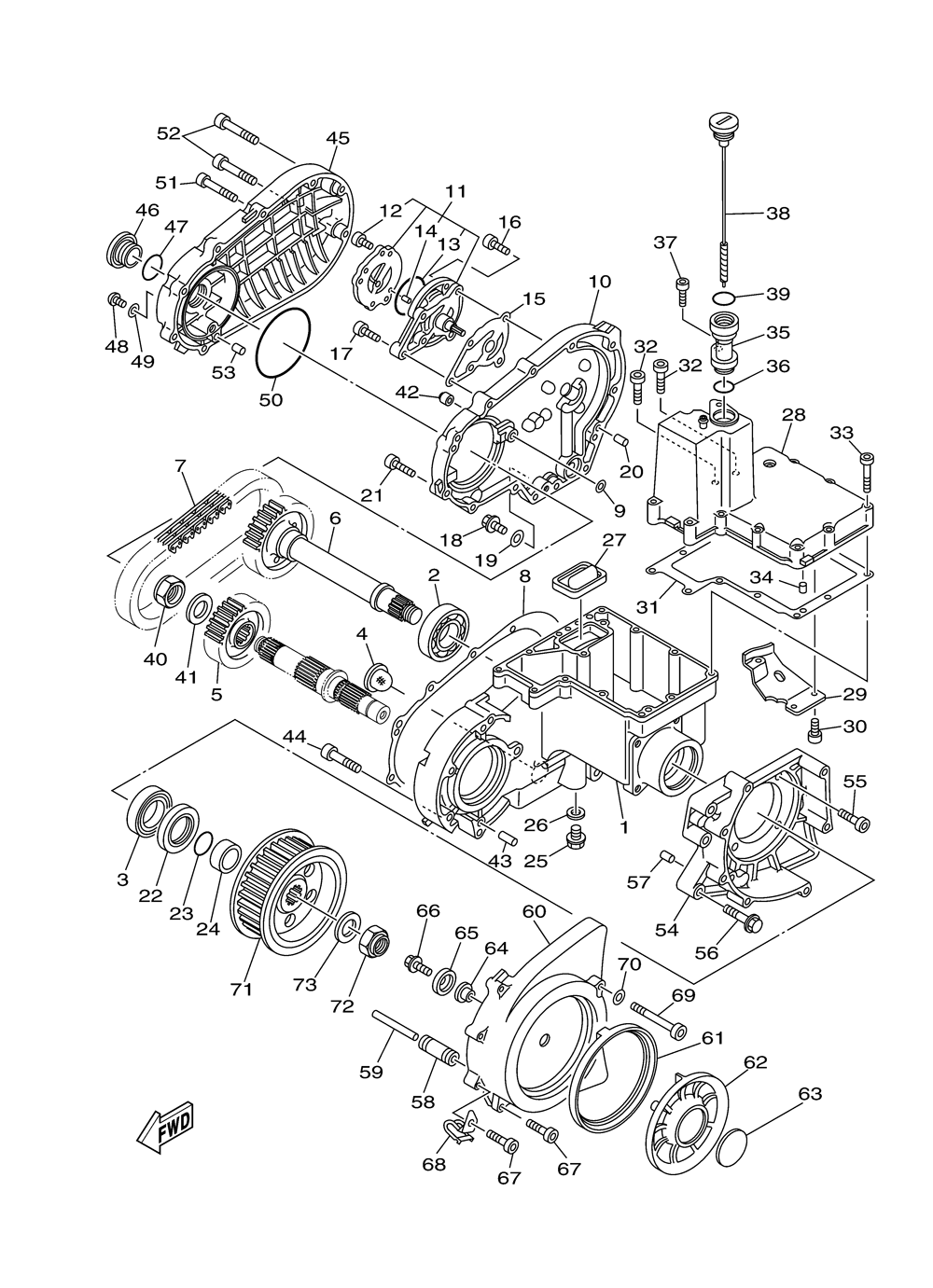

MIDDLE DRIVE GEAR для Yamaha ROYAL STAR MIDNIGHT SILVERADO - 2006 года выпуска`
-
№АртикулНазвание
-
15VN-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
293306-00907-00 BEARINGBEARING
-
393306-20601-00 BEARINGBEARING
-
44WM-13286-00-00 CLEANERCLEANER
-
54WM-17682-00-00 SPROCKET, CHAIN DRIVESPROCKET, CHAIN DRIVE
-
65VN-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
74WM-16139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
85PX-17929-00-00 GASKET 1GASKET 1
-
94WM-17931-00-00 GASKET 2GASKET 2
-
105PX-17542-00-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
115PX-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
1290110-06004-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1393210-48214-00 ...O-RING...O-RING
-
1493603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
154WM-13116-00-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1690110-06047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790110-06039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1895814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1990430-08119-00 GASKETGASKET
-
2099530-10114-00 PIN, DOWELPIN, DOWEL
-
2191314-06025-00 BOLTBOLT
-
2293102-40330-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2393210-27672-00 O-RINGO-RING
-
2490387-304K7-00 COLLARCOLLAR
-
2590340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
26214-11198-01-00 GASKETGASKET
-
274WM-13421-00-00 STRAINER 2STRAINER 2
-
285MB-17631-10-00 CAPCAP
-
294WM-1763A-00-00 PLATE, CAPPLATE, CAP
-
3090110-06004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
314WM-17932-00-00 GASKET, 3GASKET, 3
-
3291317-06030-00 BOLTBOLT
-
3391317-06040-00 BOLTBOLT
-
3499530-10114-00 PIN, DOWELPIN, DOWEL
-
355MB-13132-10-00 JOINTJOINT
-
3693210-23326-00 O-RINGO-RING
-
3791317-06025-00 BOLTBOLT
-
384WM-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
3993210-27370-00 O-RINGO-RING
-
4090179-22006-00 NUTNUT
-
4190208-22002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
4290179-08004-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
4399530-10114-00 PIN, DOWELPIN, DOWEL
-
4491314-08050-00 BOLTBOLT
-
454WM-15779-00-00 COVERCOVER
-
4690340-32140-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4793210-32172-00 O-RINGO-RING
-
4892014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4990430-06016-00 GASKETGASKET
-
5093210-92448-00 O-RINGO-RING
-
5191314-06050-00 BOLTBOLT
-
5290110-08003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5399530-10114-00 PIN, DOWELPIN, DOWEL
-
545VN-17613-00-00 STAYSTAY
-
5591317-08030-00 BOLTBOLT
-
5695817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
5799480-10018-00 PINPIN
-
584WM-17653-00-00 SLIDERSLIDER
-
5993606-76259-00 PIN, DOWELPIN, DOWEL
-
605VN-17076-00-00 COVERCOVER
-
614WM-15449-00-00 RING, RUBBERRING, RUBBER
-
624WM-17665-01-00 PLATE 1PLATE 1
-
634WM-17675-00-00 PLATE 2PLATE 2
-
644H7-15486-00-00 GROMMETGROMMET
-
6590209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
6695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
6791314-06035-00 BOLTBOLT
-
6890462-06003-00 CLAMPCLAMP
-
6990110-08002-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7090201-08035-00 WASHER, PLATEWASHER, PLATE
-
715VN-17651-00-00 PULLEY, BELTPULLEY, BELT
-
7290179-22006-00 NUTNUT
-
7390208-22002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
