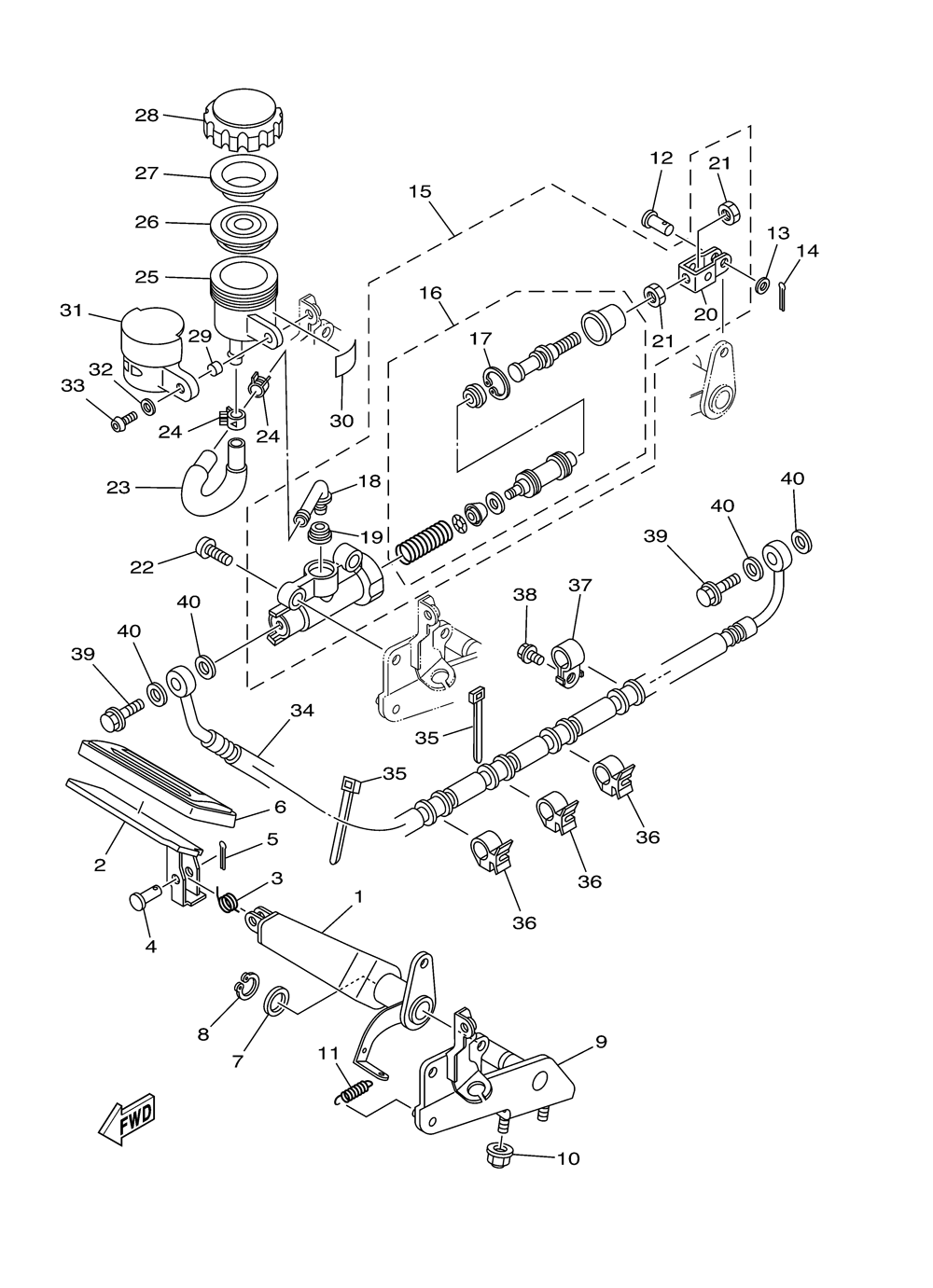

BRAKE - REAR MASTER CYLINDER для Yamaha ROYAL STAR MIDNIGHT SILVERADO - 2006 года выпуска`
-
№АртикулНазвание
-
14WM-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24WM-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-186B1-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
64WM-27285-00-00 CAPCAP
-
790201-152L1-00 WASHER, PLATEWASHER, PLATE
-
899009-15400-00 CIRCLIPCIRCLIP
-
94WM-2741L-00-00 BRACKET 4BRACKET 4
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190506-20534-00 SPRING, TENSIONSPRING, TENSION
-
1290240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1390201-08083-00 WASHER, PLATEWASHER, PLATE
-
1491401-16012-00 PIN, COTTERPIN, COTTER
-
154BP-2583V-01-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
164BP-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
173LN-2585G-00-00 ......CIRCLIP......CIRCLIP
-
184BP-2582A-00-00 ...JOINT...JOINT
-
194BP-2585F-00-00 ...BUSH...BUSH
-
204BP-27222-01-00 ...JOINT...JOINT
-
2190170-08010-00 ...NUT...NUT
-
2292014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234WM-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2490467-14057-00 CLIP, SCISSORCLIP, SCISSOR
-
2531A-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
26360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
272GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
282KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2990387-06072-00 COLLARCOLLAR
-
301UF-15379-00-00 SEALSEAL
-
314NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3290201-06025-00 WASHER, PLATEWASHER, PLATE
-
3392014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
345VN-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
351UA-82591-00-00 BANDBAND
-
3690464-15192-00 CLAMPCLAMP
-
3790461-10132-00 CLAMPCLAMP
-
3895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3990401-10159-00 BOLT, UNIONBOLT, UNION
-
4090201-10118-00 WASHER, PLATEWASHER, PLATE
