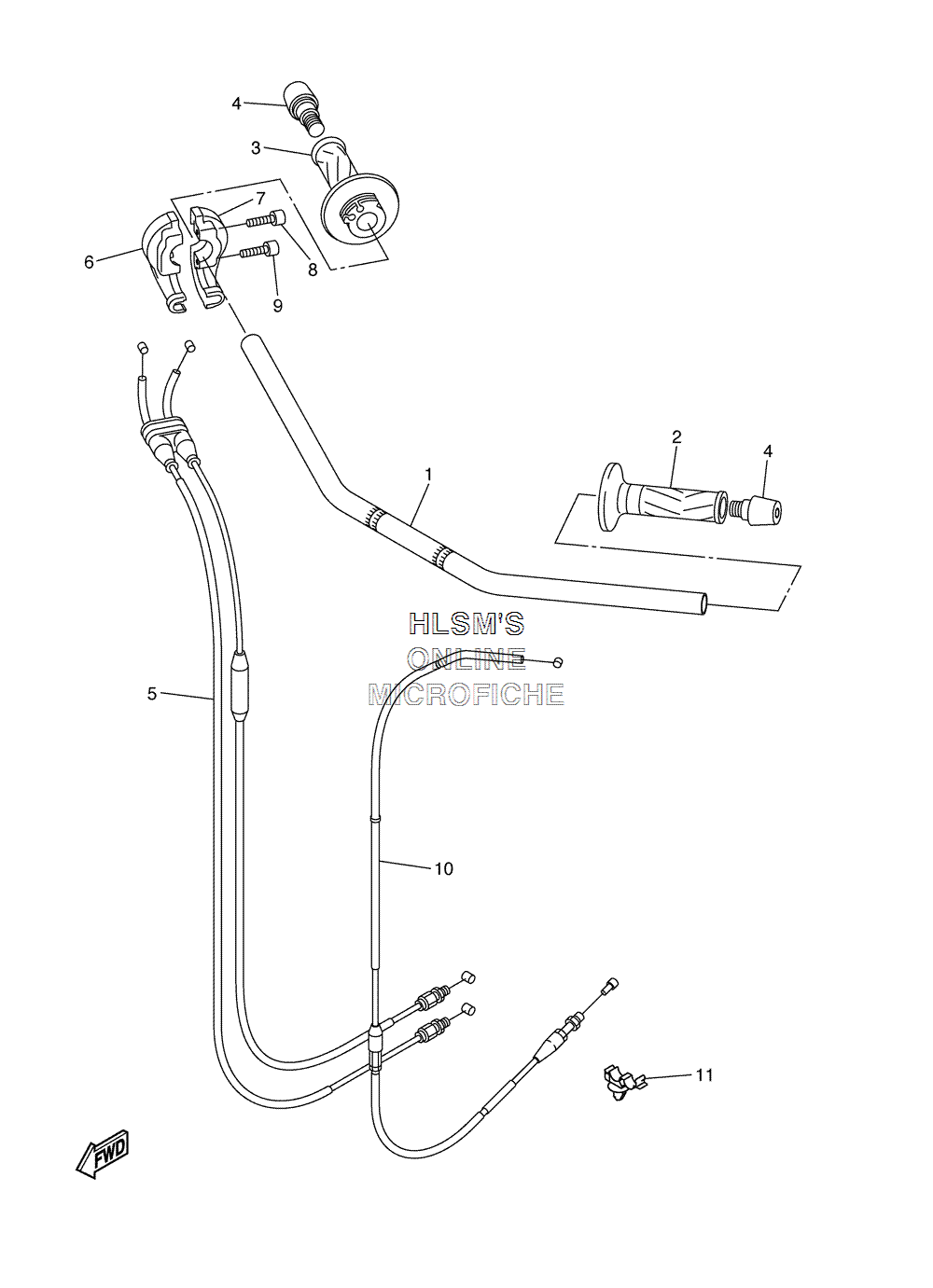

HANDLEBAR W/ CABLES для Yamaha FZS10 - 2006 года выпуска`
-
№АртикулНазвание
-
12D1-26111-00-00 HANDLEBARHANDLEBAR
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSYGRIP ASSY
-
451J-26246-01-00 END, GRIPEND, GRIP
-
52D1-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
63LN-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
74BP-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05020-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
991317-05025-00 BOLTBOLT
-
103C3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1190464-10008-00 CLAMPCLAMP
