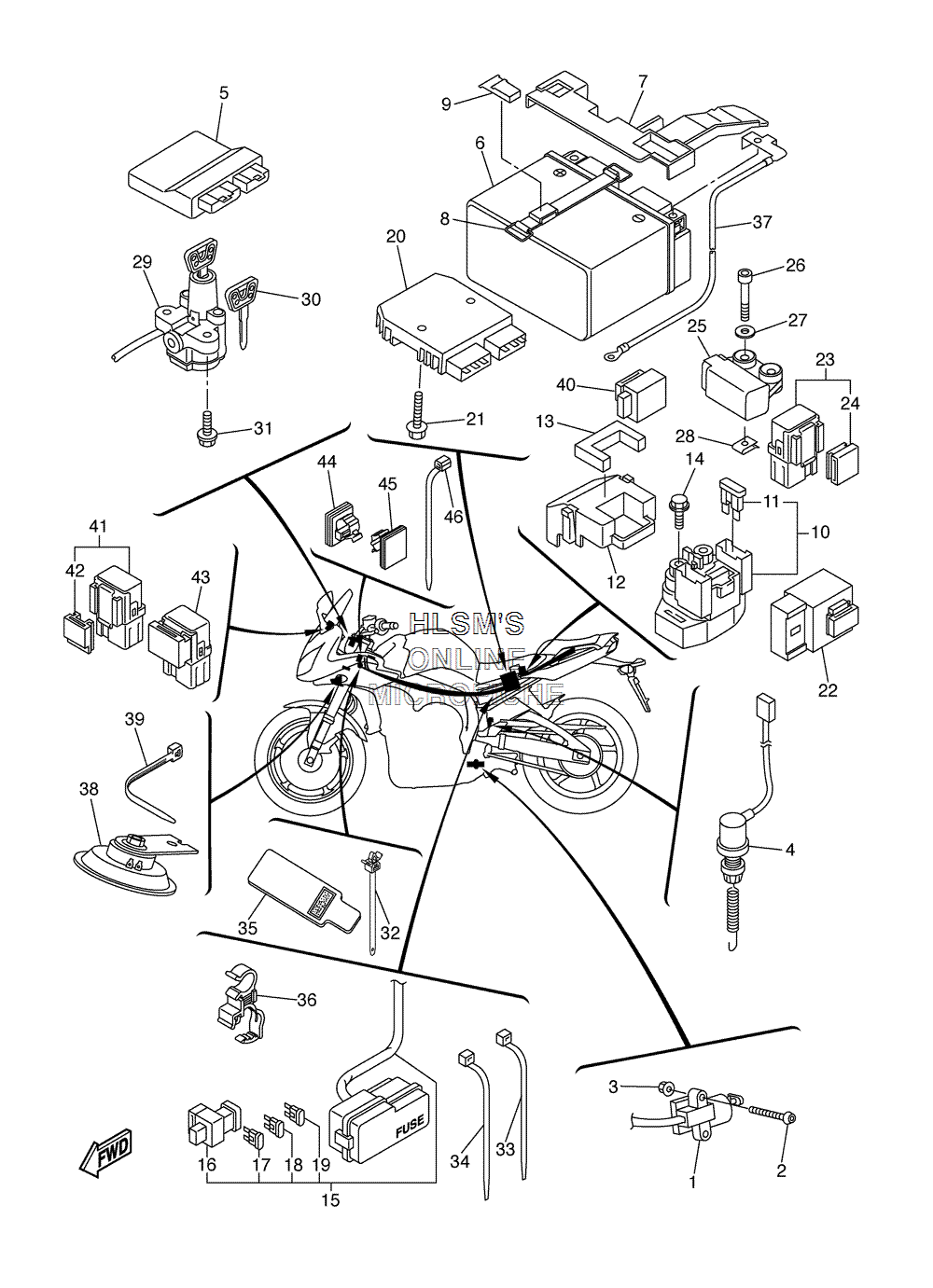

ELECTRICAL 2 для Yamaha FZS10 - 2006 года выпуска`
-
№АртикулНазвание
-
15VS-82566-61-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
292017-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
395607-05200-00 NUT, U FLANGENUT, U FLANGE
-
42D1-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
53C3-8591A-30-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
62D1-82100-00-00 BATTERY ASSY(GS YUASA YTZ14S)BATTERY ASSY(GS YUASA YTZ14S)
-
72D1-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
82D1-82131-00-00 BAND, BATTERYBAND, BATTERY
-
95YU-2162A-00-00 HOOKHOOK
-
102C0-81940-00-00 STARTER RELAY ASSY (RC19-054)STARTER RELAY ASSY (RC19-054)
-
1136Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
125SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
132D1-82176-00-00 DAMPERDAMPER
-
1495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
153C3-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
175JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
185JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
195JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
201D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2195822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
225VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
235JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
245JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2691317-04025-00 BOLTBOLT
-
2790201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2890183-04039-00 NUT, SPRINGNUT, SPRING
-
293C3-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
304BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
3190109-080G5-00 BOLTBOLT
-
3290464-12036-00 CLAMPCLAMP
-
331UA-82591-00-00 BANDBAND
-
3490464-13073-00 CLAMPCLAMP
-
352D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
3690464-12012-00 CLAMPCLAMP
-
372D1-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
382D1-83371-00-00 HORNHORN
-
393MA-82591-00-00 BANDBAND
-
404MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
415EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
425EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
435DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
4490464-62085-00 CLAMPCLAMP
-
4590464-20003-00 CLAMPCLAMP
-
4690464-13077-00 CLAMPCLAMP
