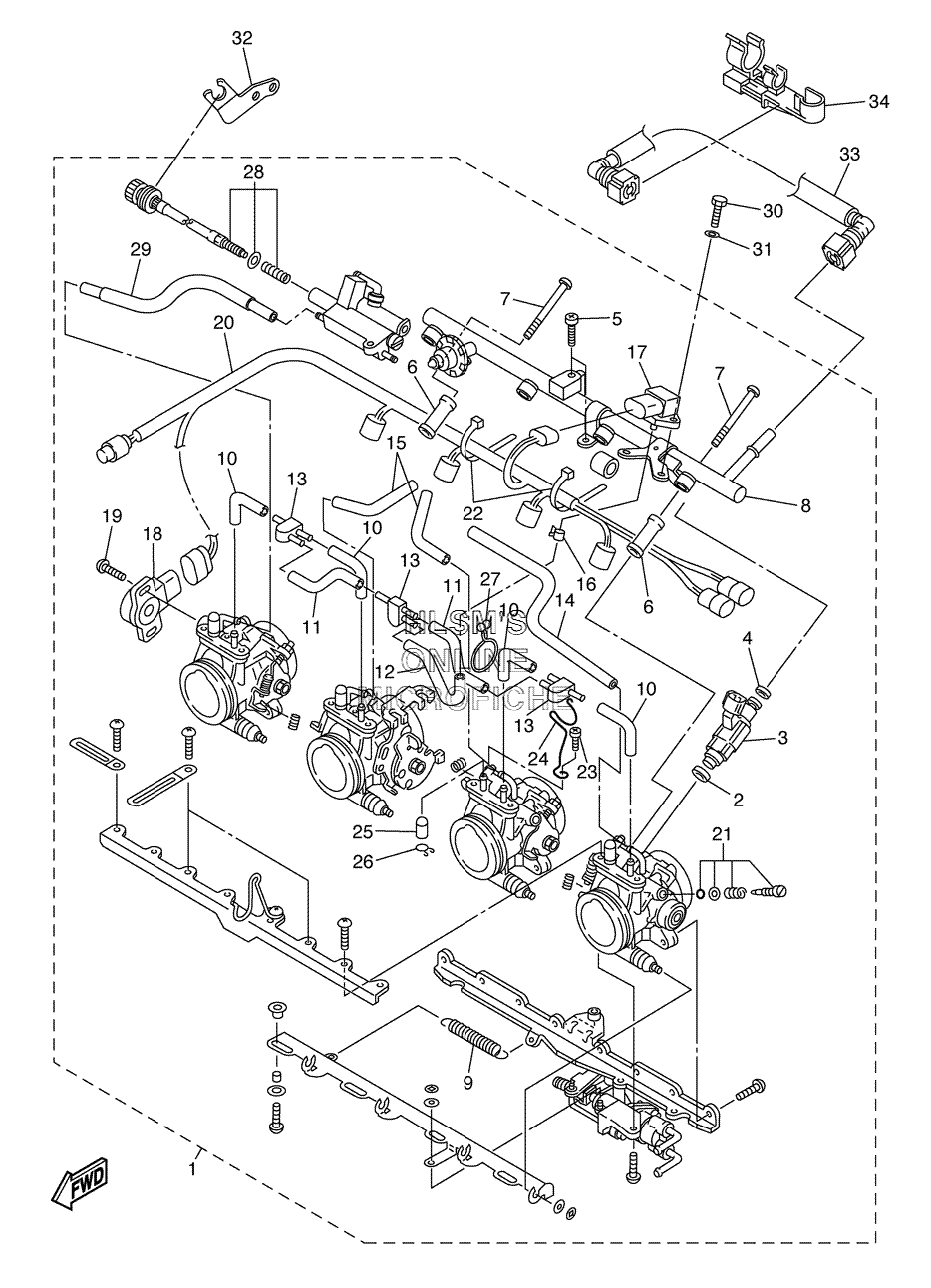

THROTTLE BODY ASSY. для Yamaha FJR13 ELECTRIC SHIFT - 2006 года выпуска`
-
№АртикулНазвание
-
13P6-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF.)THROTTLE BODY ASSY (EXCEPT CALIF.)
-
13P6-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
290430-09002-00 ...GASKET...GASKET
-
35JW-13761-10-00 ...INJECTOR ASSY...INJECTOR ASSY
-
45FL-14147-00-00 ...O-RING...O-RING
-
598502-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
65JW-14419-00-00 ...PIPE...PIPE
-
798502-06040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
85JW-13160-00-00 ...DELIVERY PIPE SET...DELIVERY PIPE SET
-
95JW-14589-00-00 ...SPRING...SPRING
-
105JW-14349-20-00 ...PIPE...PIPE
-
115JW-14349-10-00 ...PIPE...PIPE
-
125PW-14349-00-00 ...PIPE...PIPE
-
133XV-14251-00-00 ...NIPPLE...NIPPLE
-
145JW-14987-10-00 ...HOSE...HOSE
-
155JW-14987-20-00 ...HOSE...HOSE
-
165DM-14919-00-00 ...CLIP...CLIP
-
175JW-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
185PS-85885-01-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
198CC-14216-10-00 ...SCREW...SCREW
-
205JW-82509-10-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
215JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
224KM-14137-00-00 ...CLIP...CLIP
-
2398502-05006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
243P6-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
25895-14169-00-00 ...CAP...CAP
-
268A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
275PW-14137-00-00 ...CLIP...CLIP
-
285JW-14103-20-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
295JW-14987-30-00 ...HOSE...HOSE
-
3097002-05016-00 BOLTBOLT
-
3192902-05600-00 WASHER, PLATEWASHER, PLATE
-
325JW-14413-10-00 STAYSTAY
-
335JW-13971-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
3490464-16005-00 CLAMPCLAMP
