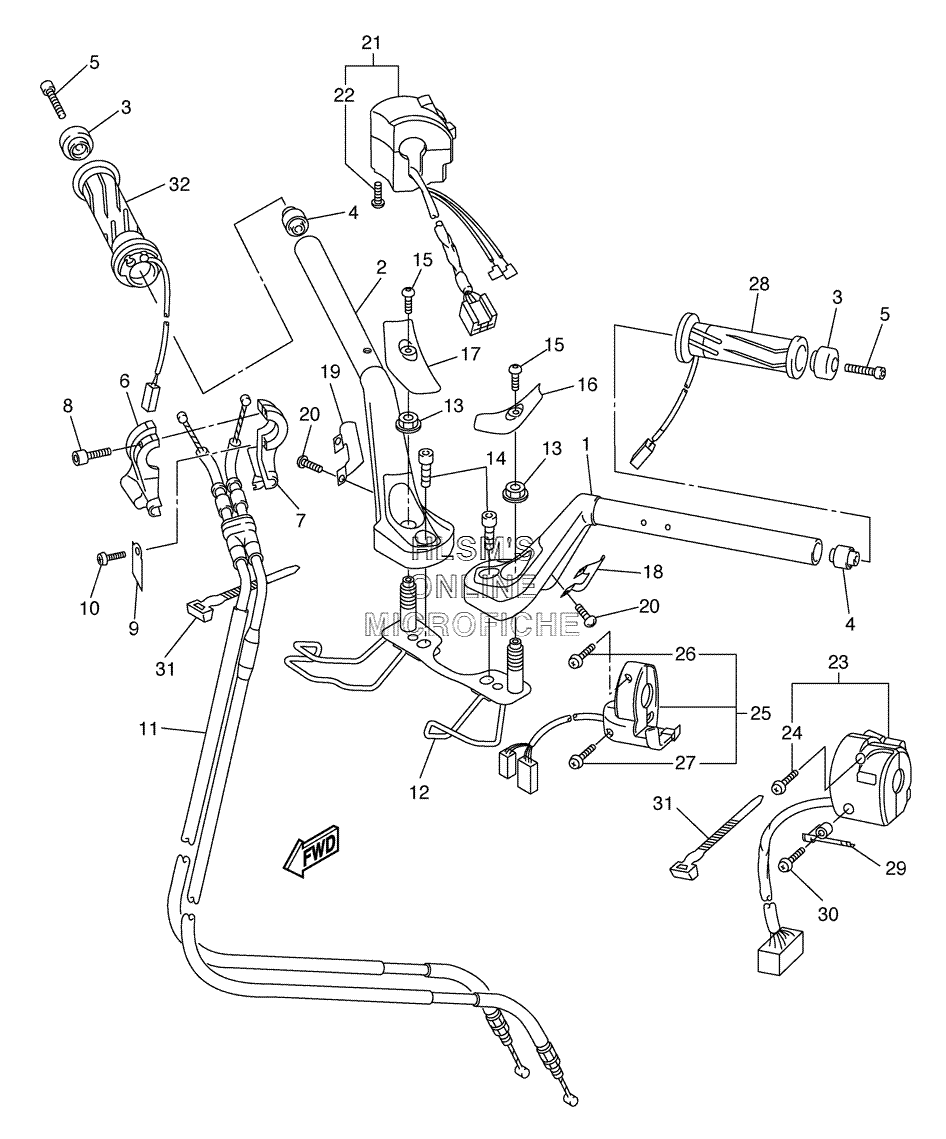

HANDLEBAR W/ CABLES для Yamaha FJR13 ELECTRIC SHIFT - 2006 года выпуска`
-
№АртикулНазвание
-
12D2-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
22D2-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
34XV-26246-00-00 END, GRIPEND, GRIP
-
44XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
590110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62D2-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
72D2-26282-00-00 CAP, GRIP LOWERCAP, GRIP LOWER
-
891317-05035-00 BOLTBOLT
-
92D2-26299-00-00 PLATE, MIRROR FITTING 2PLATE, MIRROR FITTING 2
-
1098502-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
113P6-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
123P6-26169-00-00 ADJUSTERADJUSTER
-
1395704-12500-00 NUT, FLANGENUT, FLANGE
-
1491314-08030-00 BOLTBOLT
-
1590111-04006-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
163P6-26143-00-00 COVER, HANDLEBAR UPPER 1COVER, HANDLEBAR UPPER 1
-
173P6-26145-00-00 COVER, HANDLEBAR UPPER 2COVER, HANDLEBAR UPPER 2
-
183P6-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
193P6-26146-00-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
2098507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
213P6-83963-00-00 SWITCH, HANDLE 3 (RIGHT)SWITCH, HANDLE 3 (RIGHT)
-
2298507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
232D2-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
2498507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
252D2-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2698507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2798507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
282D2-82963-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
-
292D2-8272F-00-00 PLATE,GUIDE 1PLATE,GUIDE 1
-
3098507-05035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3190465-10098-00 CLAMPCLAMP
-
322D2-82960-00-00 GRIP, WARMERGRIP, WARMER
