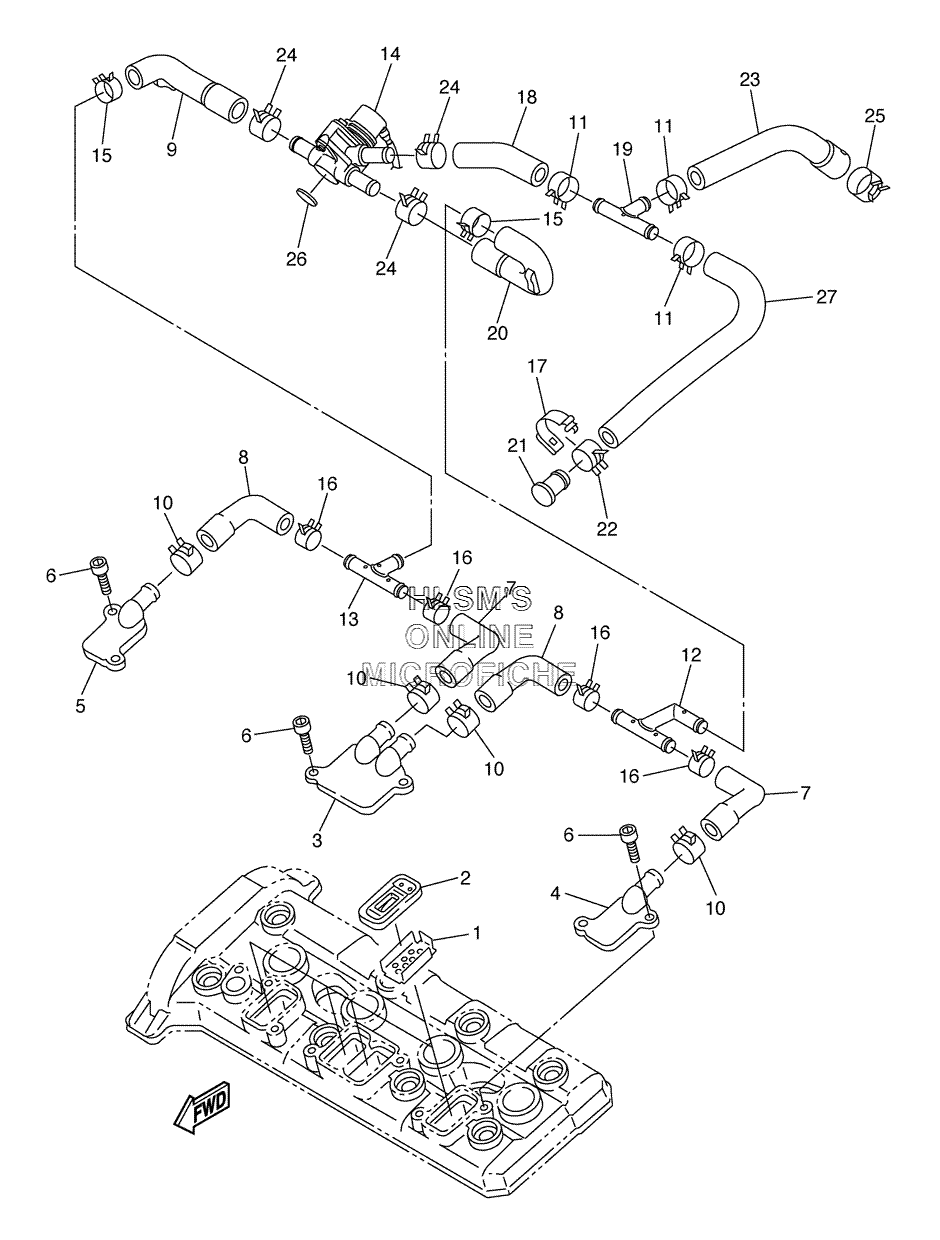

AIR INDUCTION SYSTEM для Yamaha FJR13 ELECTRIC SHIFT - 2006 года выпуска`
-
№АртикулНазвание
-
15JW-1482K-01-00 PLATEPLATE
-
25JW-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
35JW-14899-00-00 CAP, CASECAP, CASE
-
45JW-14858-00-00 CAP, CASECAP, CASE
-
55JW-14889-00-00 CAP, CASECAP, CASE
-
690110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
75JW-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
85JW-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
93P6-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
1090467-17003-00 CLIPCLIP
-
1190467-170A1-00 CLIPCLIP
-
123P6-14871-00-00 PIPE 1PIPE 1
-
133P6-14872-00-00 PIPE 2PIPE 2
-
143P6-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
1590468-08104-00 CLIPCLIP
-
1690467-160A1-00 CLIPCLIP
-
175JW-14723-00-00 COVER 1COVER 1
-
183P6-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
193P6-14833-00-00 JOINTJOINT
-
203P6-14873-00-00 PIPE 3PIPE 3
-
215JW-14862-00-00 PLUGPLUG
-
2290467-17089-00 CLIPCLIP
-
233P6-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
2490467-17089-00 CLIPCLIP
-
2590467-20050-00 CLIPCLIP
-
263P6-13593-00-00 DAMPERDAMPER
-
273P6-14886-00-00 HOSE, BEND 6HOSE, BEND 6
