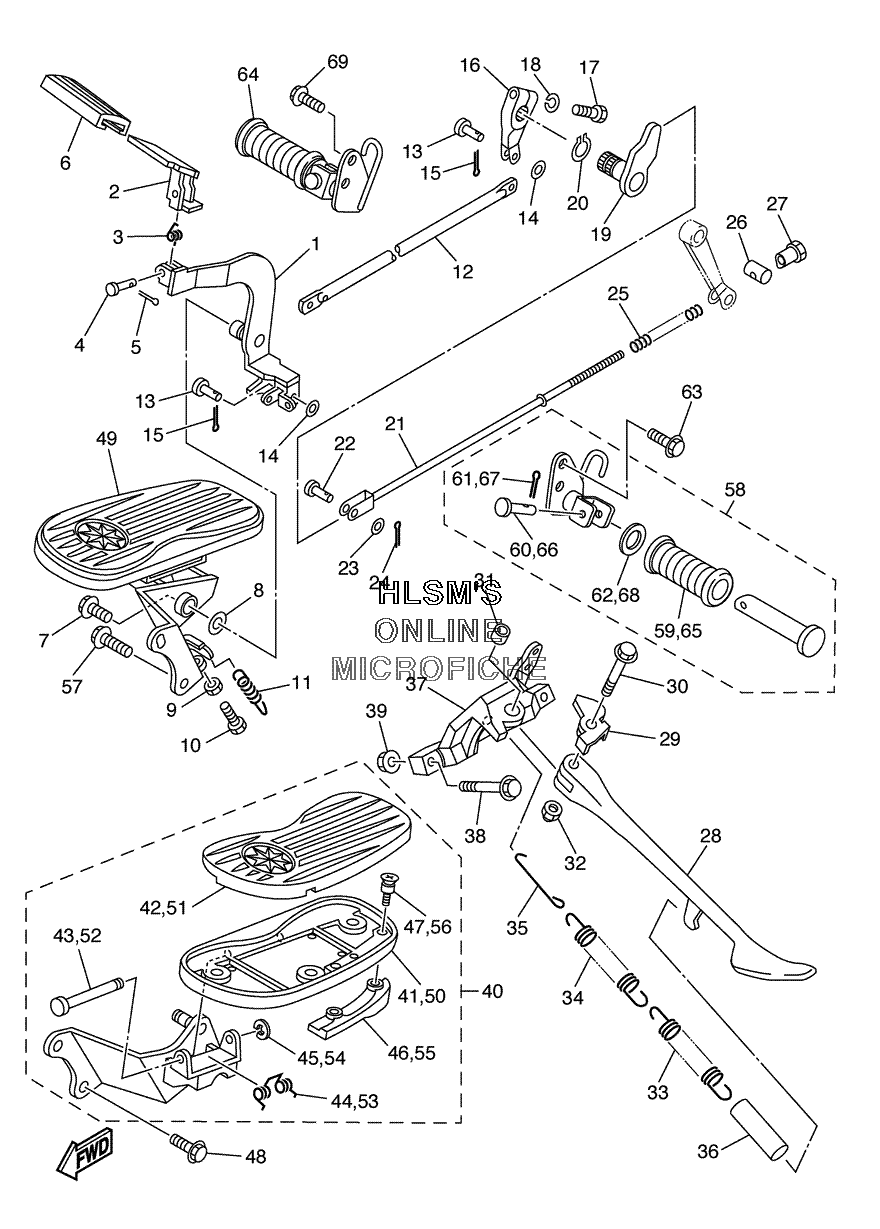

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR SILVERADO - 2005 года выпуска`
-
№АртикулНазвание
-
15BN-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-186B1-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
790110-06249-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890206-14086-00 WASHER, WAVEWASHER, WAVE
-
995307-06700-00 NUTNUT
-
1090101-06534-00 BOLTBOLT
-
1190506-20369-00 SPRING, TENSIONSPRING, TENSION
-
124TR-27247-00-00 ROD 1ROD 1
-
1390240-06108-00 PIN, CLEVISPIN, CLEVIS
-
1490201-062P7-00 WASHER, PLATEWASHER, PLATE
-
1591401-20012-00 PIN, COTTERPIN, COTTER
-
164TR-27243-00-00 BOSS, BRAKE PEDALBOSS, BRAKE PEDAL
-
1790109-06468-00 BOLTBOLT
-
1892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
194TR-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
2099009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
214TR-27231-00-00 ROD, BRAKEROD, BRAKE
-
2290240-06108-00 PIN, CLEVISPIN, CLEVIS
-
2390201-062P7-00 WASHER, PLATEWASHER, PLATE
-
2491401-20012-00 PIN, COTTERPIN, COTTER
-
2590501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2690249-12008-00 PINPIN
-
2790179-06411-00 NUTNUT
-
284KU-27311-13-00 STAND, SIDESTAND, SIDE
-
295EL-27322-01-00 WASHERWASHER
-
3090105-10012-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3190387-1003G-00 COLLARCOLLAR
-
3295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3390506-23490-00 SPRING, TENSIONSPRING, TENSION
-
3490506-29507-00 SPRING, TENSIONSPRING, TENSION
-
355EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
3690445-16641-00 HOSEHOSE
-
375BN-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
3890105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
405BN-27410-01-00 FRONT FOOTREST ASSY. (LEFT)FRONT FOOTREST ASSY. (LEFT)
-
415BN-27451-00-00 ...FOOTREST...FOOTREST
-
425BN-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
434NK-27427-00-00 ...SHAFT...SHAFT
-
444NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
4599001-06600-00 ...CIRCLIP...CIRCLIP
-
464WM-27496-00-00 ...MOLE 1...MOLE 1
-
4790152-05008-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
4890105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
495BN-27420-00-00 FRONT FOOTREST ASSY. (RIGHT)FRONT FOOTREST ASSY. (RIGHT)
-
505BN-27461-00-00 ...FOOTREST...FOOTREST
-
515BN-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
524NK-27427-00-00 ...SHAFT...SHAFT
-
534NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
5499001-06600-00 ...CIRCLIP...CIRCLIP
-
554WM-27497-00-00 ...MOLE 2...MOLE 2
-
5690152-05008-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
5790105-102A3-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
584TR-27430-10-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
59120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
6091701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
6191401-20015-00 ...PIN, COTTER...PIN, COTTER
-
6290201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
6390105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
644TR-27440-10-00 REAR FOOTREST ASSY. 2REAR FOOTREST ASSY. 2
-
65120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
6691701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
6791401-20015-00 ...PIN, COTTER...PIN, COTTER
-
6890201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
6990105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
