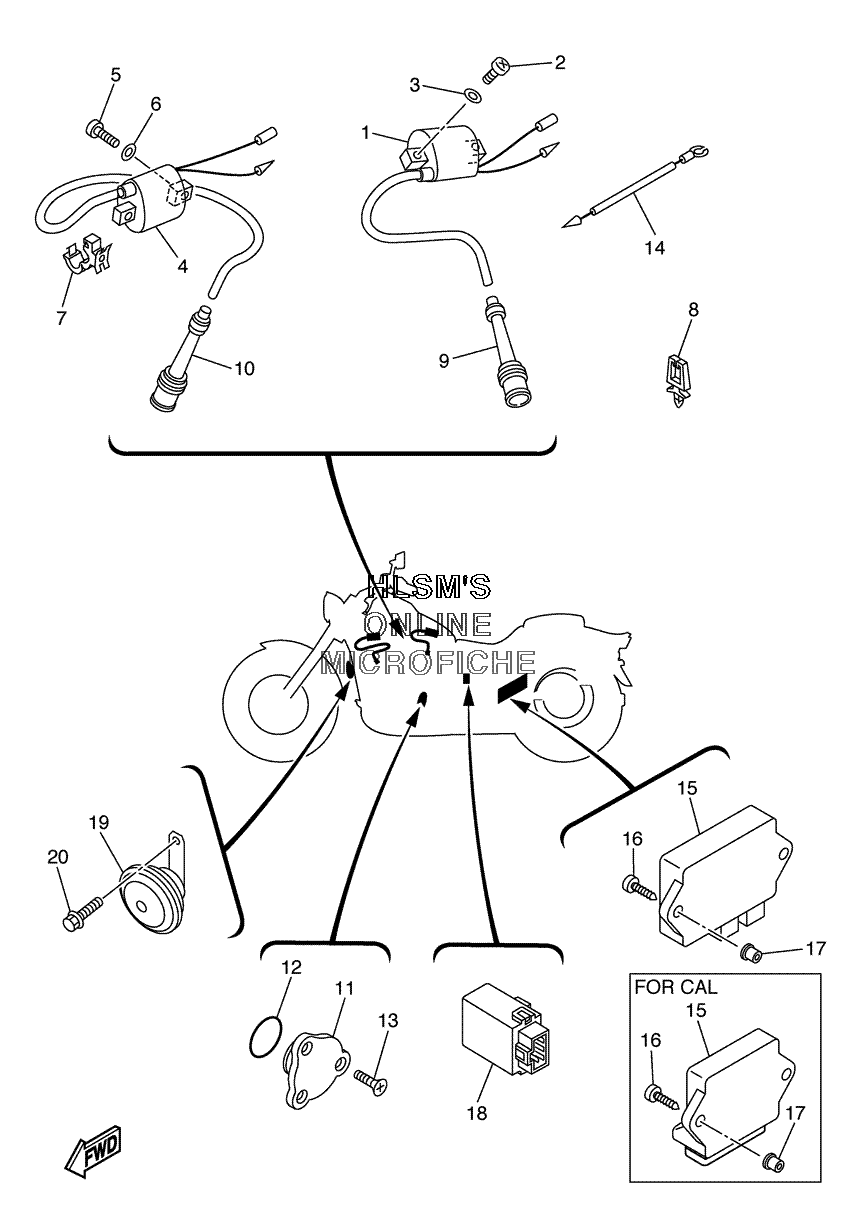

ELECTRICAL 2 для Yamaha V STAR SILVERADO - 2005 года выпуска`
-
№АртикулНазвание
-
14VR-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
298507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-05600-00 WASHER, PLATEWASHER, PLATE
-
44VR-82320-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
598507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692907-05600-00 WASHER, PLATEWASHER, PLATE
-
790464-10190-00 CLAMPCLAMP
-
890464-05141-00 CLAMPCLAMP
-
91FK-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
104TR-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
111L9-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
1293210-29196-00 O-RINGO-RING
-
1390149-05321-00 SCREWSCREW
-
144TR-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
155BN-82305-01-00 IGNITOR UNIT ASSY. (EXCEPT CALIF.)IGNITOR UNIT ASSY. (EXCEPT CALIF.)
-
155SC-82305-30-00 IGNITOR UNIT ASSY. (CALIF. ONLY)IGNITOR UNIT ASSY. (CALIF. ONLY)
-
1697707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
1790338-08226-00 PLUGPLUG
-
182UJ-83350-00-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
195YS-83371-00-00 HORNHORN
-
2090105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
