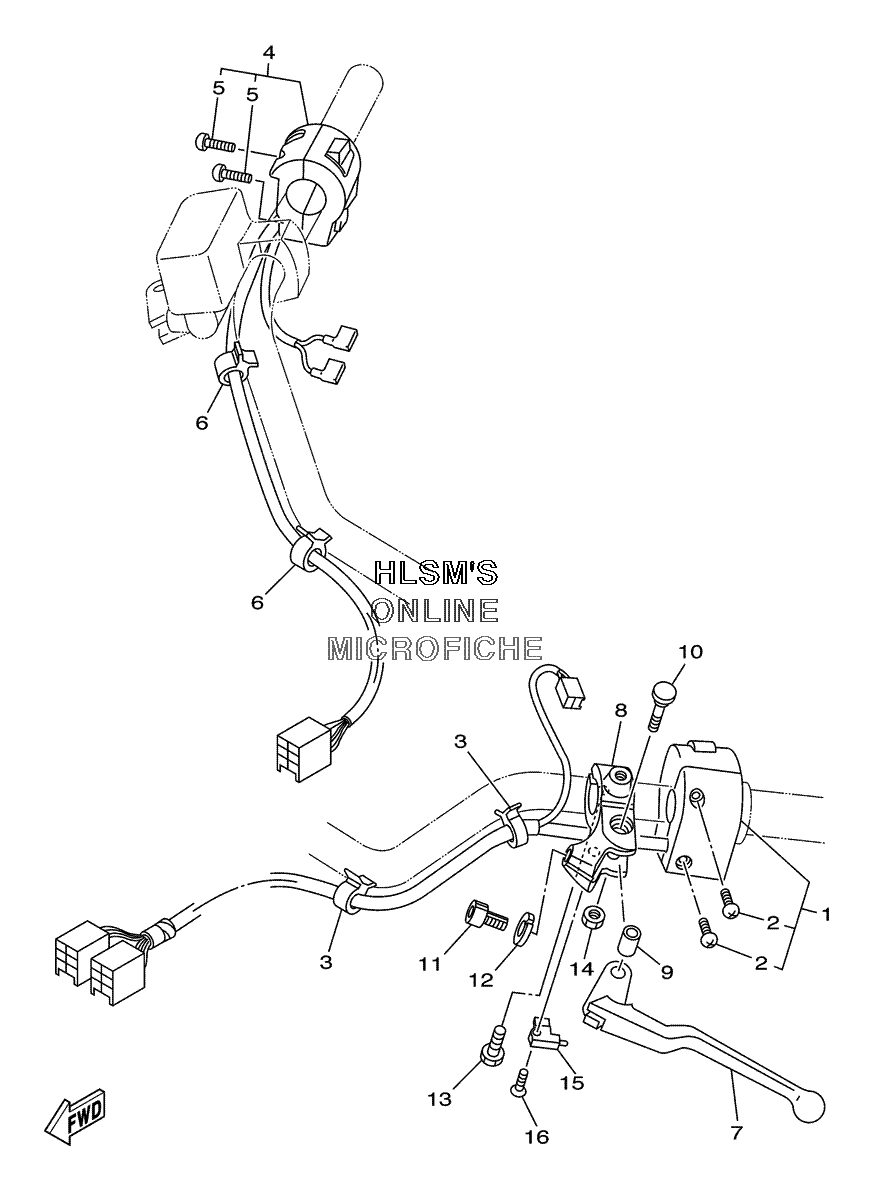

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROAD STAR CAST WHEELS - 2005 года выпуска`
-
№АртикулНазвание
-
15VN-83973-20-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
390464-15192-00 CLAMPCLAMP
-
45VN-83975-20-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
598580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
690464-10190-00 CLAMPCLAMP
-
75VN-83912-00-00 LEVER 1LEVER 1
-
85BN-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
94TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
104TR-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1190123-08046-00 BOLTBOLT
-
1290179-08148-00 NUTNUT
-
1397004-06020-00 BOLTBOLT
-
1495604-06100-00 NUT, UNUT, U
-
153YX-82917-01-00 SWITCHSWITCH
-
1698707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
