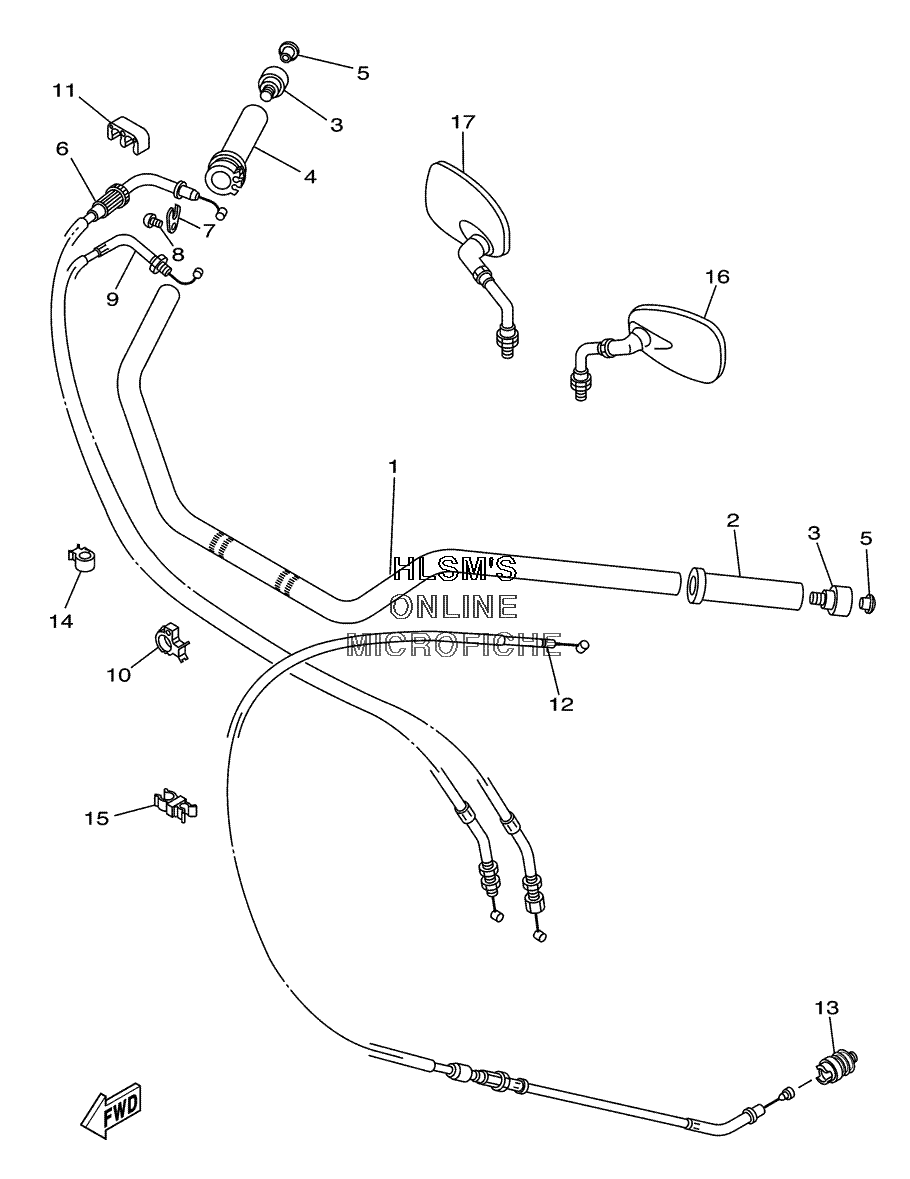

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ROAD STAR CAST WHEELS - 2005 года выпуска`
-
№АртикулНазвание
-
15VN-26111-00-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35EL-26246-00-00 END, GRIPEND, GRIP
-
44XY-26240-00-00 GRIP ASSY.GRIP ASSY.
-
590338-10164-00 PLUGPLUG
-
64WM-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75H0-26393-00-00 HOLDERHOLDER
-
898507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
94WM-26312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
1090464-25217-00 CLAMPCLAMP
-
1190464-07006-00 CLAMPCLAMP
-
125MB-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
131E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1490464-10190-00 CLAMPCLAMP
-
1590464-09014-00 CLAMPCLAMP
-
164NK-26280-00-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
174NK-26290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
