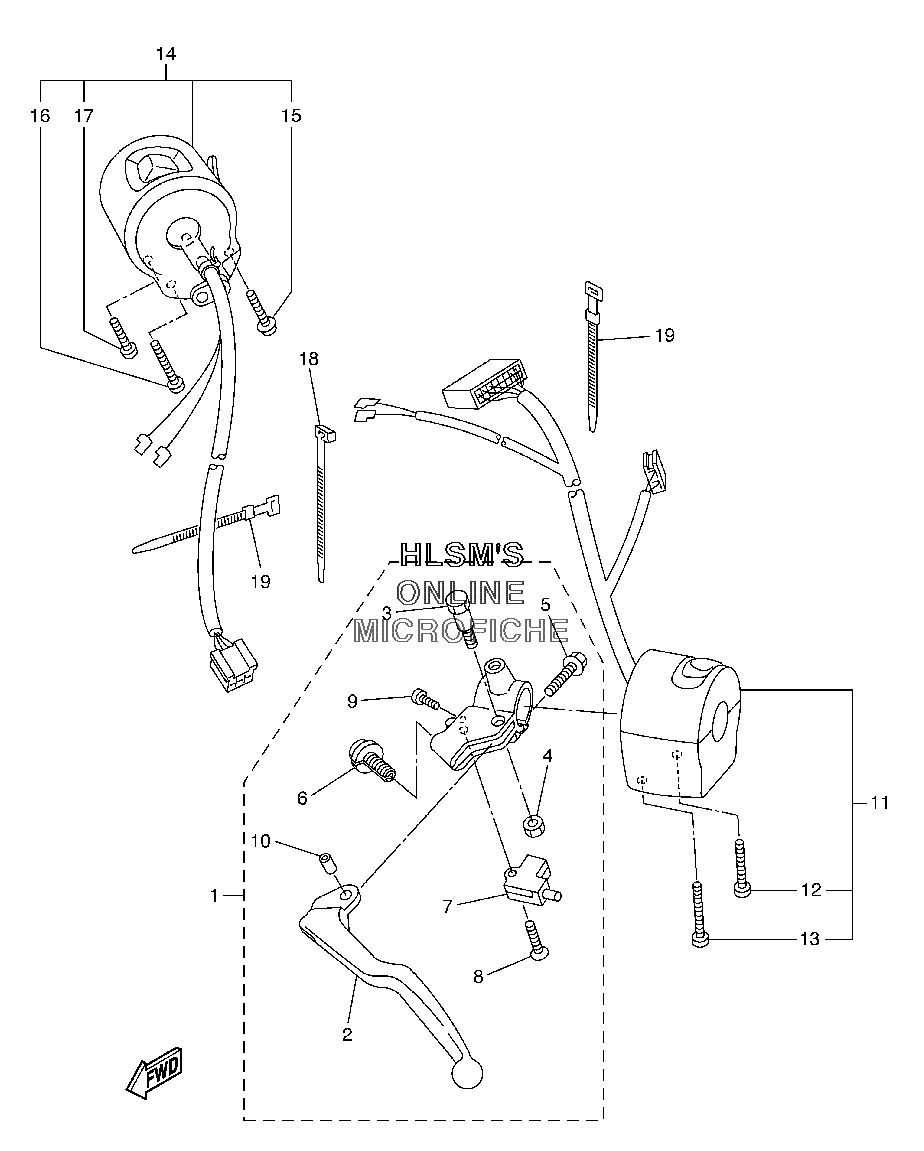

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ6 - 2005 года выпуска`
-
№АртикулНазвание
-
15VX-82910-00-00 LEVER HOLDER ASSY. (LEFT)LEVER HOLDER ASSY. (LEFT)
-
25EB-83912-02-00 ...LEVER 1...LEVER 1
-
34XV-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
495607-06100-00 ...NUT, U...NUT, U
-
595027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
65LV-83951-00-00 ...BOLT, CABLE ADJUSTING...BOLT, CABLE ADJUSTING
-
73YX-82917-01-00 ...SWITCH...SWITCH
-
898704-03020-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
998507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
105JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
115VX-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1298507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1398507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
145VX-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1597607-05255-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
1698507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1798507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
181UA-82591-00-00 BANDBAND
-
19437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
