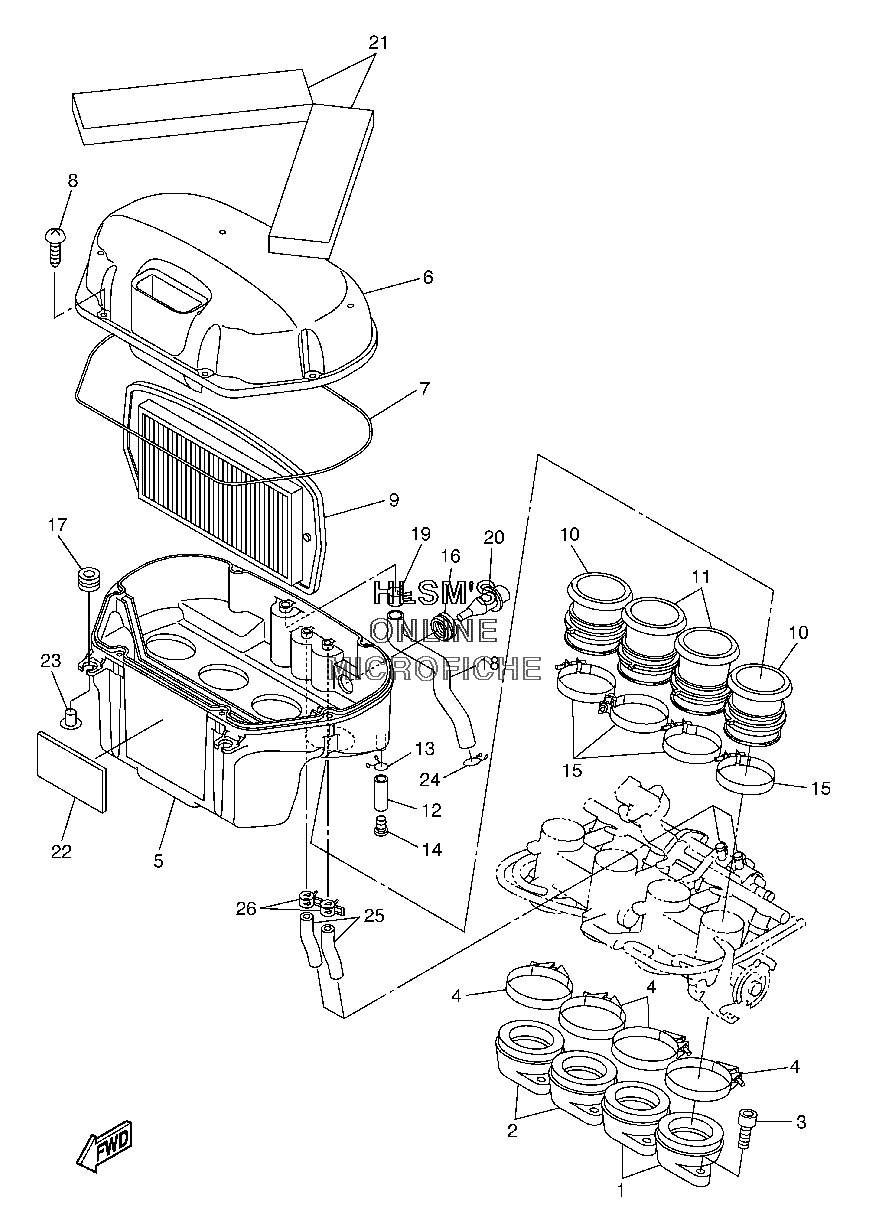

AIR CLEANER W/ INTAKE для Yamaha FZ6 - 2005 года выпуска`
-
№АртикулНазвание
-
15SL-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
25SL-13596-01-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
391317-06020-00 BOLTBOLT
-
490450-63003-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
55VX-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
65VX-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
75VX-14452-00-00 SEALSEAL
-
897707-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
95VX-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
105VX-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
115VX-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
1290445-11795-00 HOSEHOSE
-
1390467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
1490338-08174-00 PLUGPLUG
-
1590450-53002-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
165CA-14435-00-00 GROMMETGROMMET
-
1790480-12314-00 GROMMETGROMMET
-
185VX-15373-00-00 PIPE, BREATHERPIPE, BREATHER
-
1990467-15054-00 CLIP, SCISSORCLIP, SCISSOR
-
205CA-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
215VX-14409-00-00 DAMPERDAMPER
-
225EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2390387-06073-00 COLLARCOLLAR
-
2490467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
255VX-14148-01-00 PIPEPIPE
-
2690467-17089-00 CLIPCLIP
