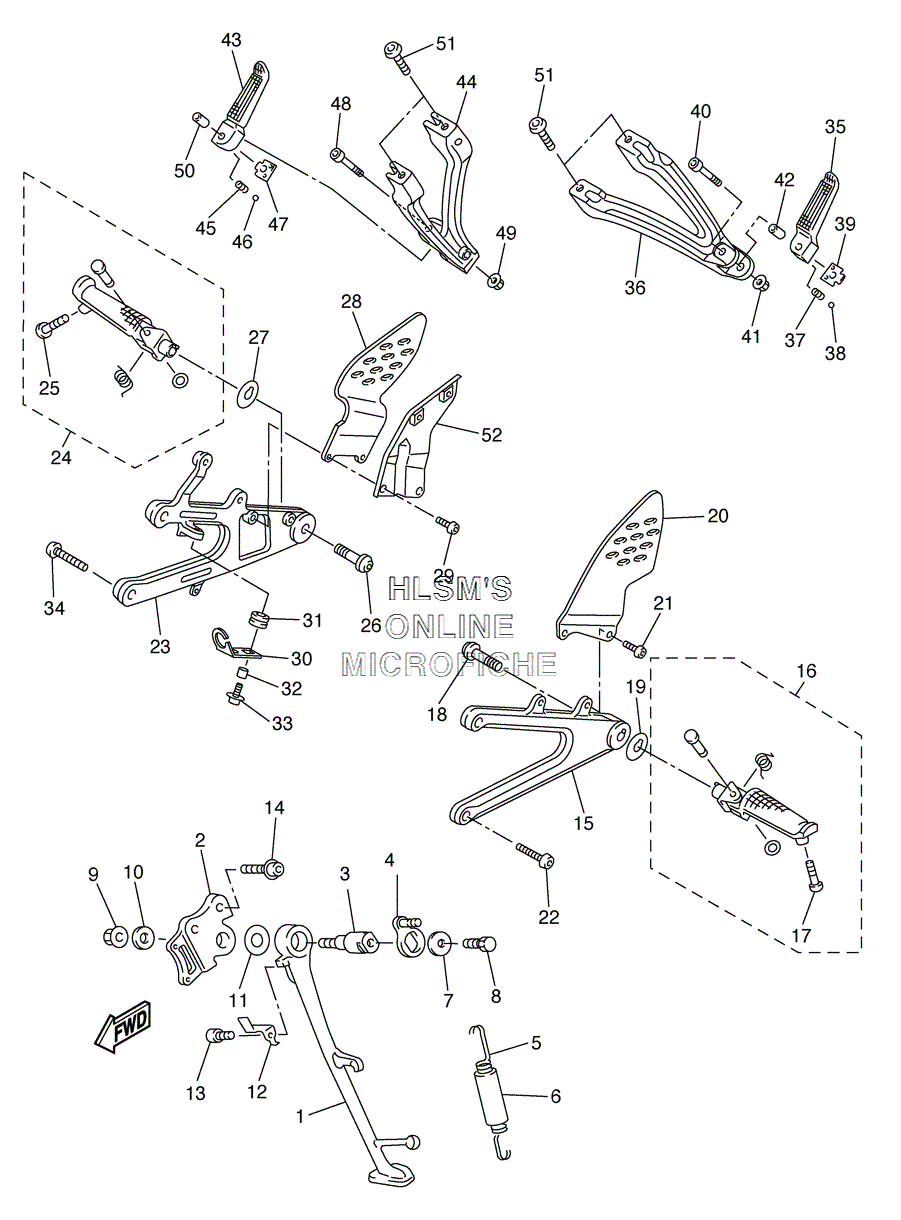

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZF-R1 - 2004 года выпуска`
-
№АртикулНазвание
-
15VY-27311-00-00 STAND, SIDESTAND, SIDE
-
25JJ-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
34NX-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
45PW-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
590506-18008-00 SPRING, TENSIONSPRING, TENSION
-
690445-19002-00 HOSE (L60)HOSE (L60)
-
790201-081R9-00 WASHER, PLATEWASHER, PLATE
-
890101-08662-00 BOLTBOLT
-
995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1090201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1190201-146F9-00 WASHER, PLATEWASHER, PLATE
-
125JJ-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1391317-06012-00 BOLTBOLT
-
1490109-10002-00 BOLTBOLT
-
155VY-27442-01-00 BRACKET 2BRACKET 2
-
165VY-27410-00-00 FRONT FOOTREST ASSY. (LEFT)FRONT FOOTREST ASSY. (LEFT)
-
1790109-083E0-00 ...BOLT...BOLT
-
1890109-103A9-00 BOLTBOLT
-
1990214-10002-00 WASHER, CLAWWASHER, CLAW
-
205VY-27445-00-00 PLATE 1PLATE 1
-
2190111-06003-00 BOLTBOLT
-
2290109-085G6-00 BOLTBOLT
-
235VY-27443-01-00 BRACKET 3BRACKET 3
-
245VY-27420-00-00 FRONT FOOTREST ASSY. (RIGHT)FRONT FOOTREST ASSY. (RIGHT)
-
2590109-083E0-00 ...BOLT...BOLT
-
2690109-103A9-00 BOLTBOLT
-
2790214-10002-00 WASHER, CLAWWASHER, CLAW
-
285VY-27446-00-00 PLATE 2PLATE 2
-
2990149-06304-00 SCREWSCREW
-
305VY-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3190480-12607-00 GROMMETGROMMET
-
3290387-06023-00 COLLARCOLLAR
-
3390159-06150-00 SCREW WITH WASHERSCREW WITH WASHER
-
3490109-085G6-00 BOLTBOLT
-
355JJ-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
365VY-2741L-00-00 BRACKET 4BRACKET 4
-
3790501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3893501-04011-00 BALLBALL
-
395JJ-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4091314-06035-00 BOLTBOLT
-
4195604-06200-00 NUT, U FLANGENUT, U FLANGE
-
4290387-06697-00 COLLARCOLLAR
-
435JJ-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
445VY-2742L-00-00 BRACKET 5BRACKET 5
-
4590501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4693501-04011-00 BALLBALL
-
475JJ-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4891314-06035-00 BOLTBOLT
-
4995604-06200-00 NUT, U FLANGENUT, U FLANGE
-
5090387-06697-00 COLLARCOLLAR
-
5192017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
525VY-27425-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
