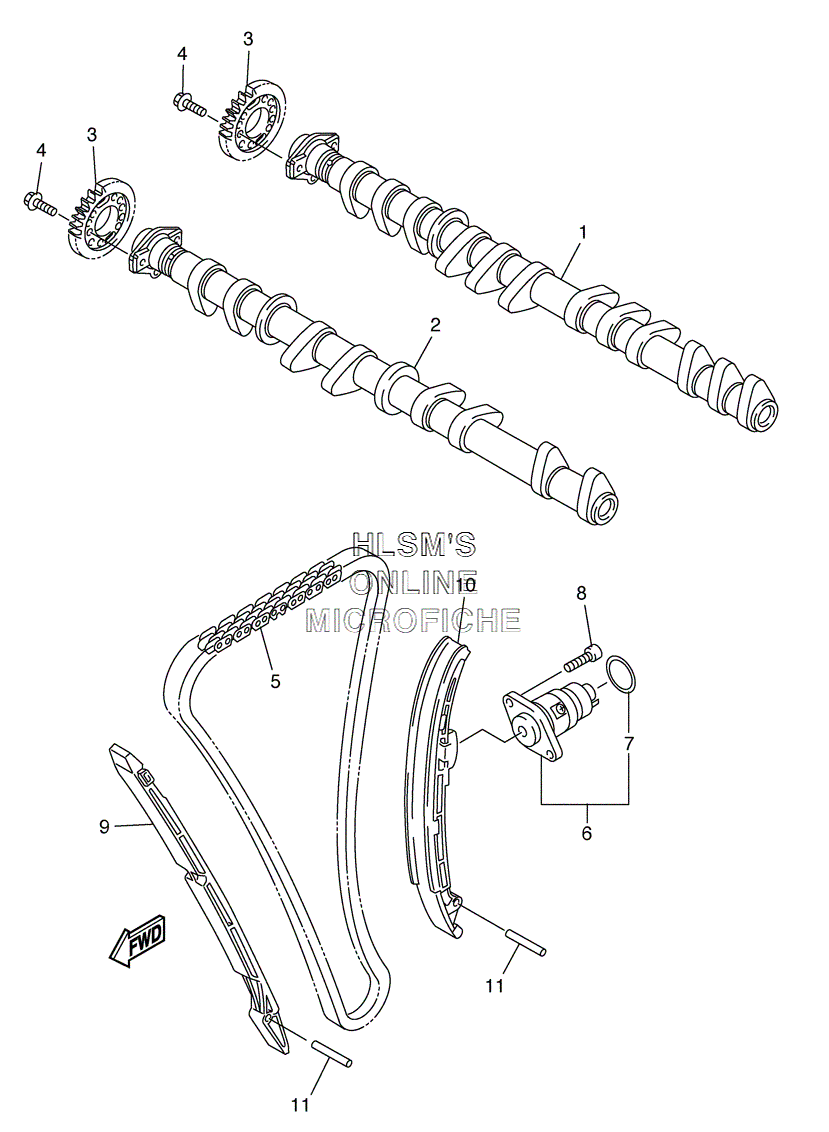

CAMSHAFT W/ CHAIN для Yamaha YZF-R1 - 2004 года выпуска
-
№АртикулНазвание
-
15VY-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
25VY-12180-00-00 CAMSHAFT ASSY. 2CAMSHAFT ASSY. 2
-
35VY-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07003-00 BOLT, FLANGEBOLT, FLANGE
-
594591-60122-00 CHAINCHAIN
-
65VY-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
793210-26741-00 ...O-RING...O-RING
-
891314-06020-00 BOLTBOLT
-
95VY-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
105VY-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1193607-44190-00 PIN, DOWELPIN, DOWEL
