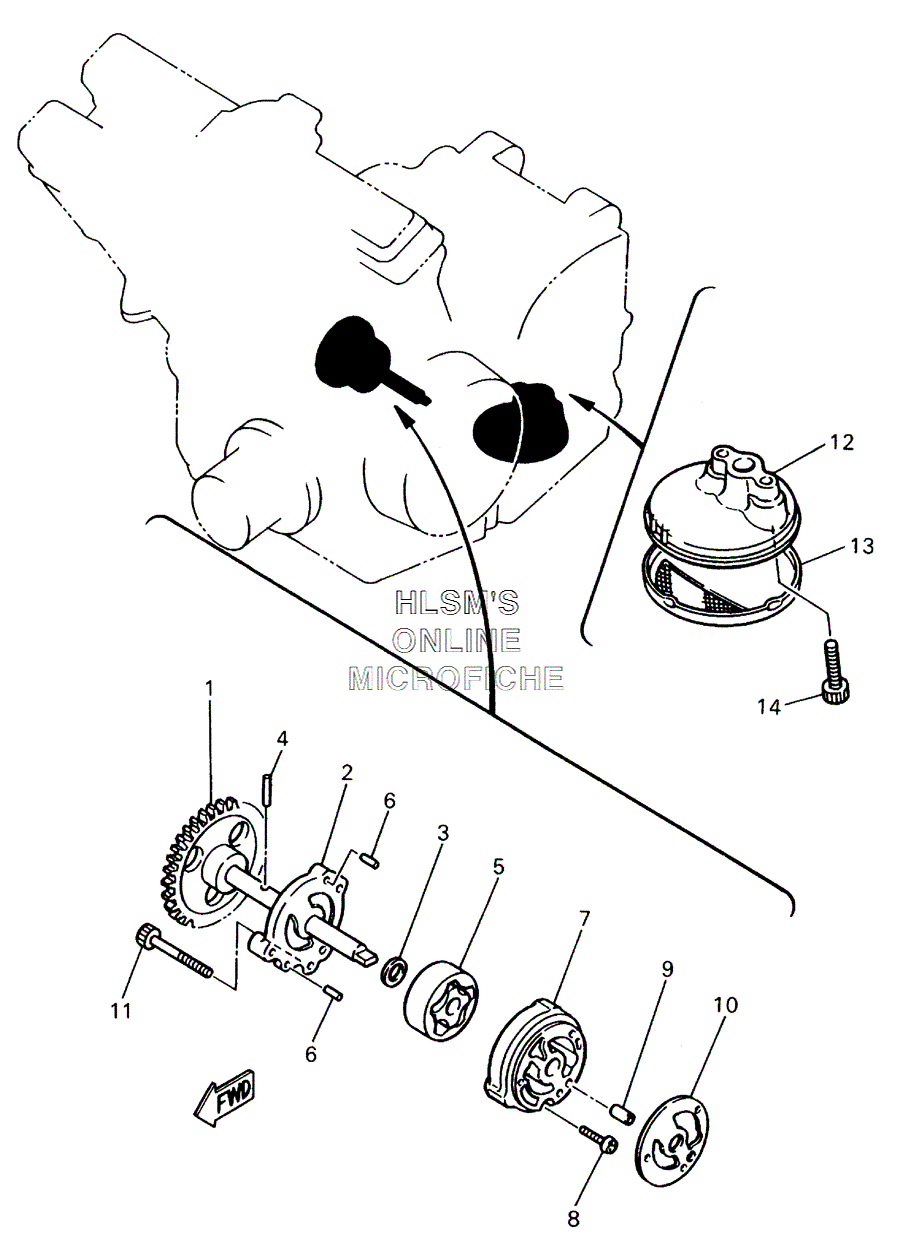

OIL PUMP для Yamaha YZF 600 R - 2004 года выпуска`
-
№АртикулНазвание
-
14JH-13330-00-00 PUMP SHAFT ASSY.PUMP SHAFT ASSY.
-
21WG-13316-00-00 COVER, PUMPCOVER, PUMP
-
390201-113K2-00 WASHER, PLATEWASHER, PLATE
-
493603-17070-00 PIN, DOWELPIN, DOWEL
-
51WG-13310-00-00 ROTOR ASSY. 1ROTOR ASSY. 1
-
693603-09106-00 PIN, DOWELPIN, DOWEL
-
71WG-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
898507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
999530-08012-00 PIN, DOWELPIN, DOWEL
-
101WG-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
1190110-06130-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
123TJ-13412-00-00 HOUSING, STRAINERHOUSING, STRAINER
-
134H7-13411-02-00 STRAINER, OILSTRAINER, OIL
-
1490110-06225-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
