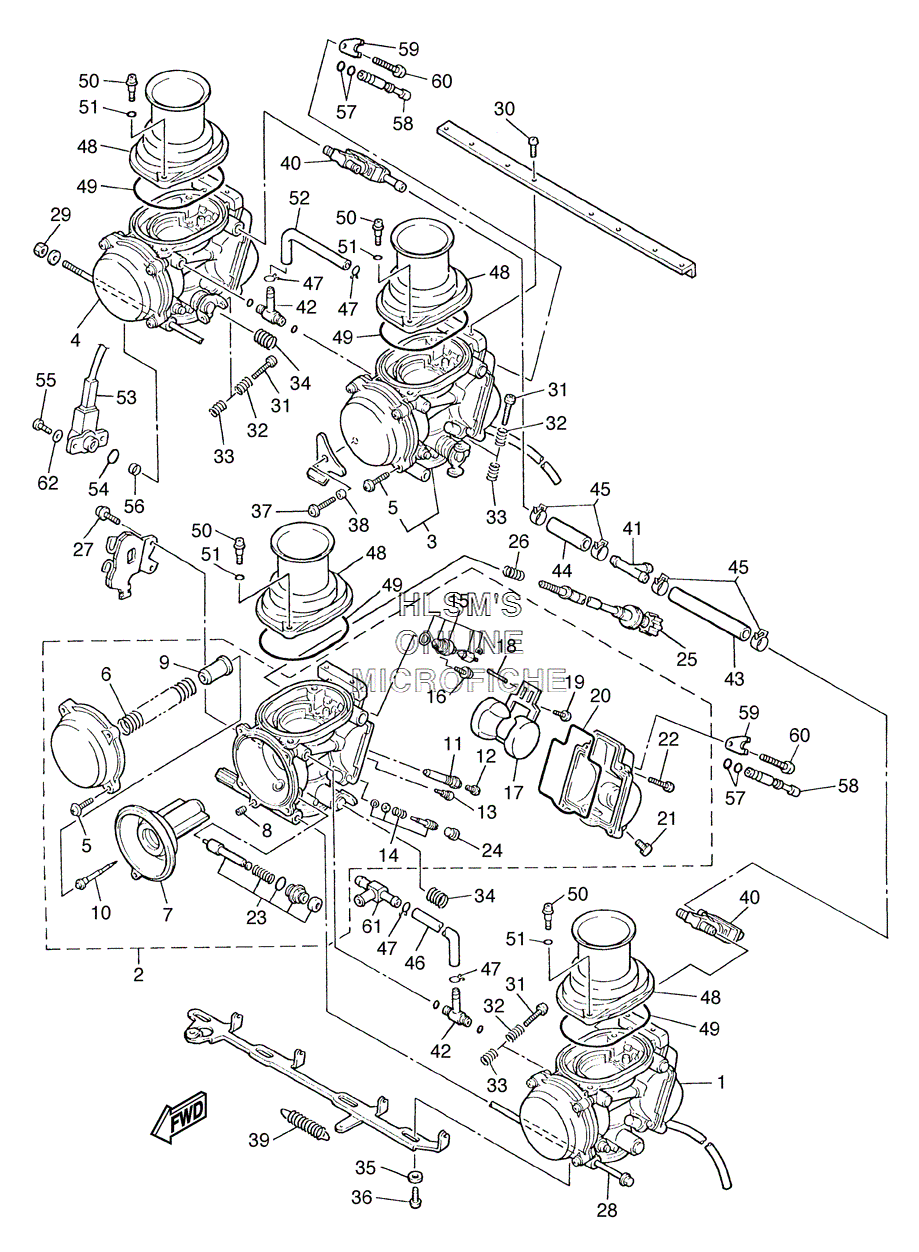

CARBURETOR ASSY. (CALIF. ONLY) для Yamaha YZF 600 R - 2004 года выпуска`
-
№АртикулНазвание
-
15AH-14901-01-00 CARBURETOR ASSY. 1 (CALIF. ONLY)CARBURETOR ASSY. 1 (CALIF. ONLY)
-
25AH-14902-01-00 CARBURETOR ASSY. 2 (CALIF. ONLY)CARBURETOR ASSY. 2 (CALIF. ONLY)
-
35AH-14903-01-00 CARBURETOR ASSY. 3 (CALIF. ONLY)CARBURETOR ASSY. 3 (CALIF. ONLY)
-
45AH-14904-01-00 CARBURETOR ASSY. 4 (CALIF. ONLY)CARBURETOR ASSY. 4 (CALIF. ONLY)
-
54JH-14216-00-00 ...SCREW (CARB. # 3)...SCREW (CARB. # 3)
-
64TV-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
74TV-14940-00-00 ...DIAPHGRAM...DIAPHGRAM
-
84JH-14515-00-00 ...JET...JET
-
94JH-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
104TV-14916-00-00 ...NEEDLE (CARB. # 1 AND 4)...NEEDLE (CARB. # 1 AND 4)
-
104TV-14916-10-00 ...NEEDLE (CARB. # 2 AND 3)...NEEDLE (CARB. # 2 AND 3)
-
114TV-1414G-00-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
123TJ-14943-87-00 ...JET, MAIN (#148)...JET, MAIN (#148)
-
134JH-14948-02-00 ...JET, (#38)...JET, (#38)
-
144JH-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
154JH-14107-00-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
163TJ-14216-40-00 ...SCREW...SCREW
-
174JH-14985-00-00 ...FLOAT...FLOAT
-
18676-14548-00-00 ...PIN, FLOAT ARM...PIN, FLOAT ARM
-
19688-14592-00-00 ...SCREW...SCREW
-
204JH-14984-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
213TJ-14191-40-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2298502-04014-00 ...SCREW, PAN HEAD (CARB # 2 AND 3)...SCREW, PAN HEAD (CARB # 2 AND 3)
-
234TV-1410A-01-00 ...STARTER SET...STARTER SET
-
244MM-14118-00-00 ...CAP...CAP
-
254JH-14922-00-00 SCREW, THROTTLESCREW, THROTTLE
-
264JH-14934-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
274JH-14429-00-00 SCREWSCREW
-
284JH-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
294JH-14358-00-00 NUTNUT
-
304JH-14325-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
314JH-14121-00-00 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
327A9-14555-00-00 SPRINGSPRING
-
334JH-14133-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
344JH-14487-00-00 SPRINGSPRING
-
3590202-06056-00 WASHER, PLATEWASHER, PLATE
-
363TJ-14245-40-00 SCREW, GUIDESCREW, GUIDE
-
374JH-14565-00-00 SCREWSCREW
-
384JH-14264-00-00 COLLARCOLLAR
-
394JH-14935-00-00 SPRINGSPRING
-
404JH-14350-00-00 PIPE ADAPTER ASSY.PIPE ADAPTER ASSY.
-
414JH-13918-00-00 PIPE TPIPE T
-
424JH-14197-00-00 PIPEPIPE
-
434JH-14294-00-00 HOSEHOSE
-
444JH-14298-00-00 PIPEPIPE
-
454JH-14137-00-00 CLIPCLIP
-
464TV-14349-00-00 PIPEPIPE
-
473TJ-14937-40-00 CLIPCLIP
-
484TV-1440F-00-00 JOINT, AIR FILTER 1JOINT, AIR FILTER 1
-
494JH-14561-00-00 O-RINGO-RING
-
504JH-14245-00-00 SCREW, GUIDESCREW, GUIDE
-
514TV-14561-00-00 O-RINGO-RING
-
524TV-14348-00-00 PIPE 1PIPE 1
-
534TV-85885-00-00 THROTTLE POSITION SENSOR ASSY.THROTTLE POSITION SENSOR ASSY.
-
544TV-14562-00-00 O-RINGO-RING
-
554TV-14216-00-00 SCREWSCREW
-
564TV-14534-00-00 COLLARCOLLAR
-
574NC-14561-00-00 O-RINGO-RING
-
584NC-14568-00-00 JOINTJOINT
-
594NC-14527-00-00 PLATEPLATE
-
604NC-14325-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
614TV-14465-00-00 PIPEPIPE
-
624TV-14557-00-00 WASHERWASHER
