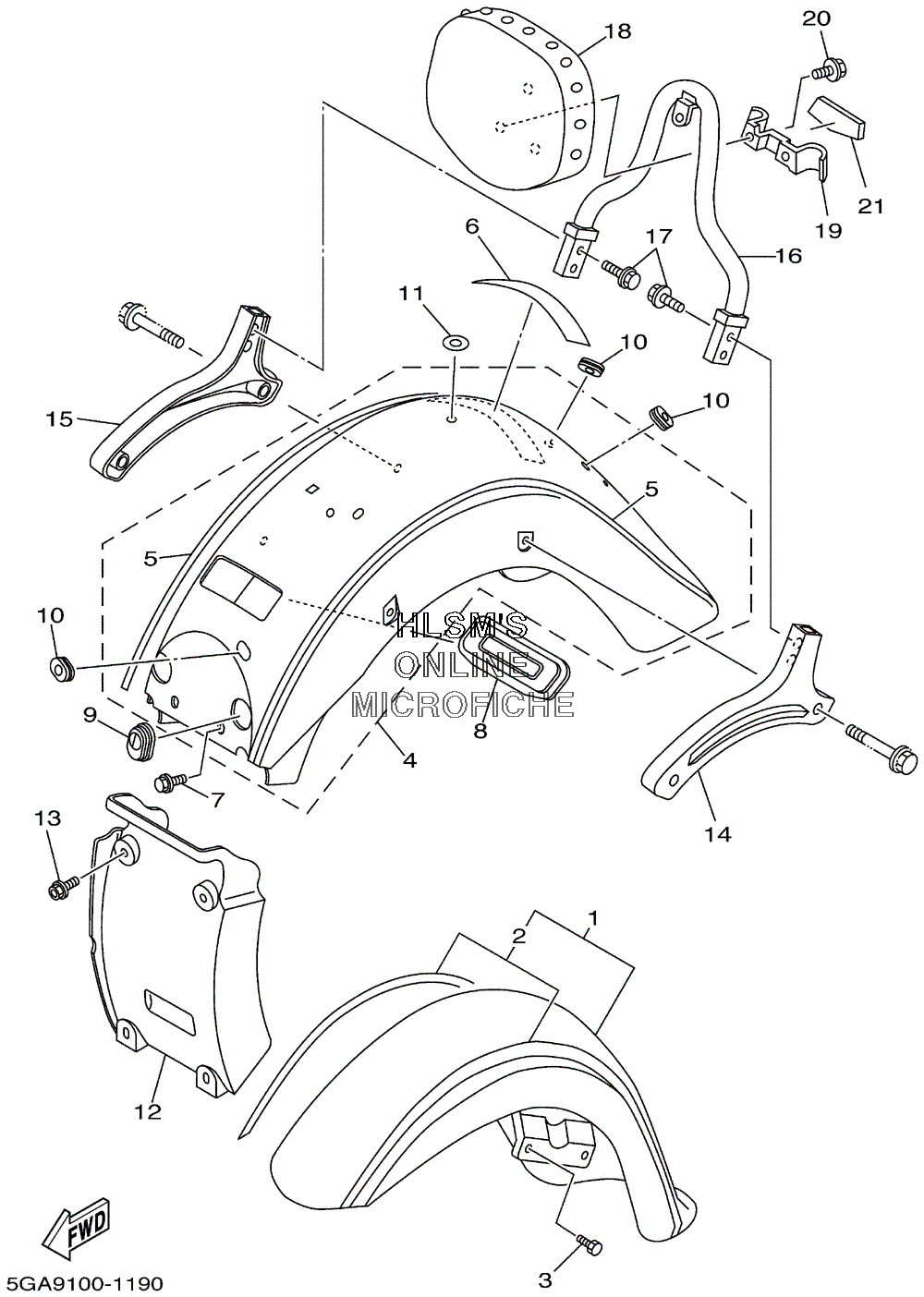

FENDER - FRONT / REAR для Yamaha XV 1600 AT ROAD STAR SILVERADO - 2002 года выпуска`
-
№АртикулНазвание
-
14WM-Y2150-G0-P2 FRONT FENDER ASSY (VERY DARK BLUE METALLIC A (VDBMA))FRONT FENDER ASSY (VERY DARK BLUE METALLIC A (VDBMA))
-
14WM-Y2150-H0-0Y FRONT FENDER ASSY (PEARL WHITE (NPW))FRONT FENDER ASSY (PEARL WHITE (NPW))
-
24WM-21570-C0-00 ...GRAPHIC SET, FRONT FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))...GRAPHIC SET, FRONT FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
-
24WM-21570-F0-00 ...GRAPHIC SET, FRONT FENDER (FOR PEARL WHITE (NPW))...GRAPHIC SET, FRONT FENDER (FOR PEARL WHITE (NPW))
-
391314-08025-00 BOLTBOLT
-
44WM-Y2161-G1-P2 REAR FENDER COMP. (VERY DARK BLUE METALLIC A (VDBMA))REAR FENDER COMP. (VERY DARK BLUE METALLIC A (VDBMA))
-
44WM-Y2161-H1-0Y REAR FENDER COMP. (PEARL WHITE (NPW))REAR FENDER COMP. (PEARL WHITE (NPW))
-
54WM-2165A-C0-00 ...GRAPHIC SET ,REAR FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))...GRAPHIC SET ,REAR FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
-
54WM-2165A-F0-00 ...GRAPHIC SET, REAR FENDER (FOR PEARL WHITE (NPW))...GRAPHIC SET, REAR FENDER (FOR PEARL WHITE (NPW))
-
699247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
797017-06016-00 BOLT, HEXBOLT, HEX
-
84WM-21649-00-00 DAMPERDAMPER
-
94WM-21638-00-00 DAMPER 1DAMPER 1
-
1090480-15061-00 GROMMETGROMMET
-
114NK-21735-00-00 SEAL 2SEAL 2
-
124WM-21629-00-P4 GUARD, MUD (VERY DARK BLUE METALLIC A (VDBMA))GUARD, MUD (VERY DARK BLUE METALLIC A (VDBMA))
-
124WM-21629-00-UG GUARD, MUD (PEARL WHITE (NPW))GUARD, MUD (PEARL WHITE (NPW))
-
1390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
145GA-2164A-00-00 GRIP 1GRIP 1
-
155GA-2164E-00-00 GRIP 2GRIP 2
-
165GA-2164F-00-00 STAY 1STAY 1
-
1795024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
185GA-2840F-00-00 BACK REST ASSYBACK REST ASSY
-
195GA-2164G-00-00 STAY 2STAY 2
-
2095024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
215GA-24786-00-00 EMBLEMEMBLEM
