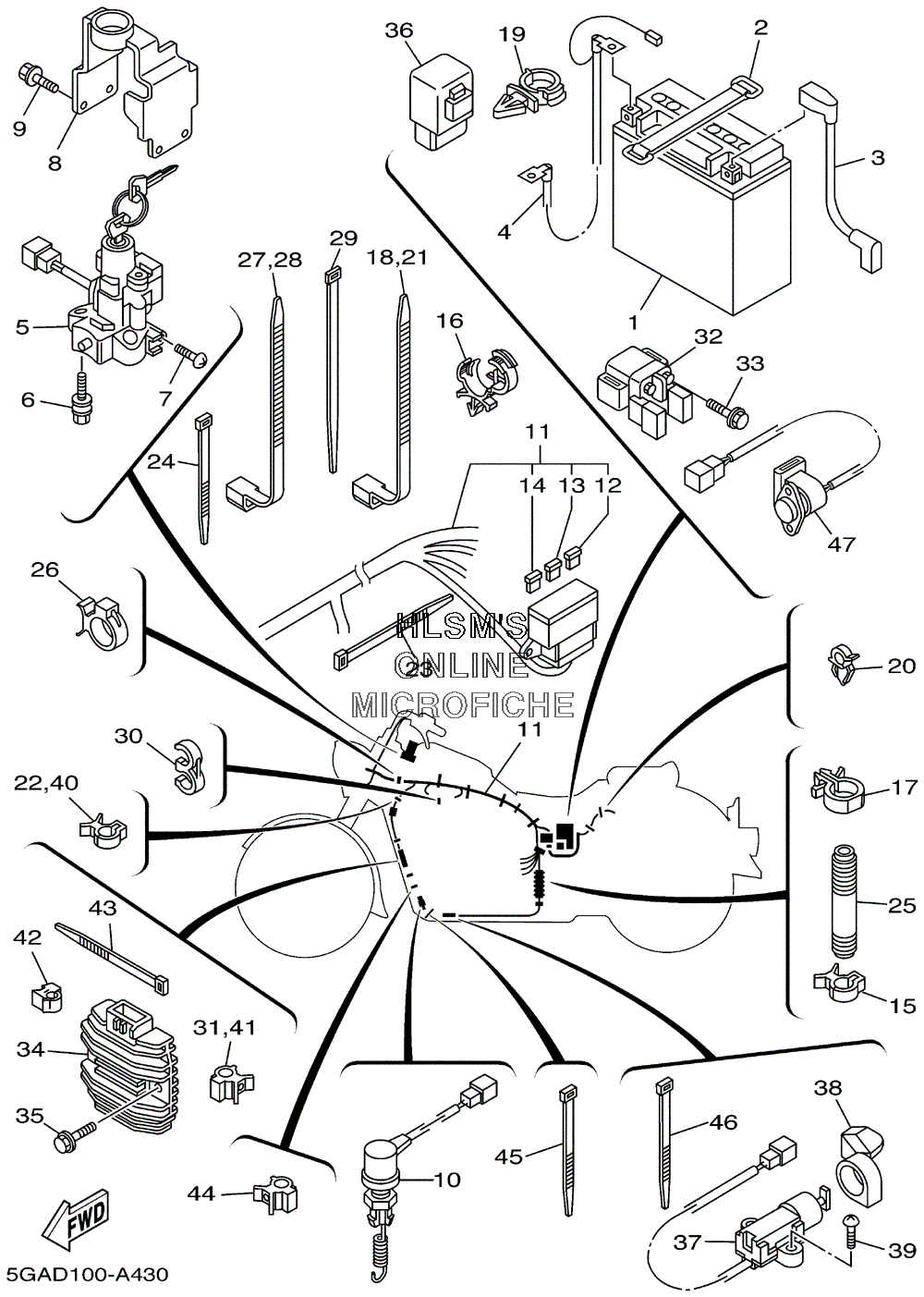

ELECTRICAL 2 для Yamaha XV 1600 AT ROAD STAR SILVERADO - 2002 года выпуска`
-
№АртикулНазвание
-
1BTY-YTX20-LB-S0 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
24WM-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34WM-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
44WM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
54WM-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
690109-080G5-00 BOLTBOLT
-
798517-05010-00 SCREW, PAN HEAD (35X)SCREW, PAN HEAD (35X)
-
84WM-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
990105-06010-00 BOLT, FLANGEBOLT, FLANGE
-
104WM-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
114WM-82590-00-00 WIRE HARNESS ASSY (EXCEPT CALF)WIRE HARNESS ASSY (EXCEPT CALF)
-
114WM-82590-10-00 WIRE HARNESS ASSY (CALF ONLY)WIRE HARNESS ASSY (CALF ONLY)
-
121NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
1336Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
1442X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1590464-20191-00 CLAMPCLAMP
-
1690464-07209-00 CLAMPCLAMP
-
1790464-24230-00 CLAMPCLAMP
-
1890464-15195-00 CLAMPCLAMP
-
1990464-20181-00 CLAMPCLAMP
-
2090464-08263-00 CLAMPCLAMP
-
2190464-15195-00 CLAMPCLAMP
-
2290464-15192-00 CLAMPCLAMP
-
231UA-82591-00-00 BANDBAND
-
241UA-82591-00-00 BANDBAND
-
254WM-82139-00-00 TUBETUBE
-
2690464-20191-00 CLAMPCLAMP
-
2725G-83936-01-00 CLAMPCLAMP
-
2825G-83936-01-00 CLAMPCLAMP
-
291UA-82591-00-00 BANDBAND
-
3090464-60067-00 CLAMPCLAMP
-
3190464-10190-00 CLAMPCLAMP
-
324BH-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
345BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3595817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
363EN-81950-00-00 RELAY ASSYRELAY ASSY
-
373LD-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
384WM-8252U-00-00 COVERCOVER
-
3998507-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4090464-15192-00 CLAMPCLAMP
-
4190464-10190-00 CLAMP (EXCEPT CALF)CLAMP (EXCEPT CALF)
-
4190464-15192-00 CLAMP (CALF ONLY)CLAMP (CALF ONLY)
-
4290464-05188-00 CLAMPCLAMP
-
431UA-82591-00-00 BANDBAND
-
4490464-10190-00 CLAMPCLAMP
-
451UA-82591-00-00 BANDBAND
-
461UA-82591-00-00 BANDBAND
