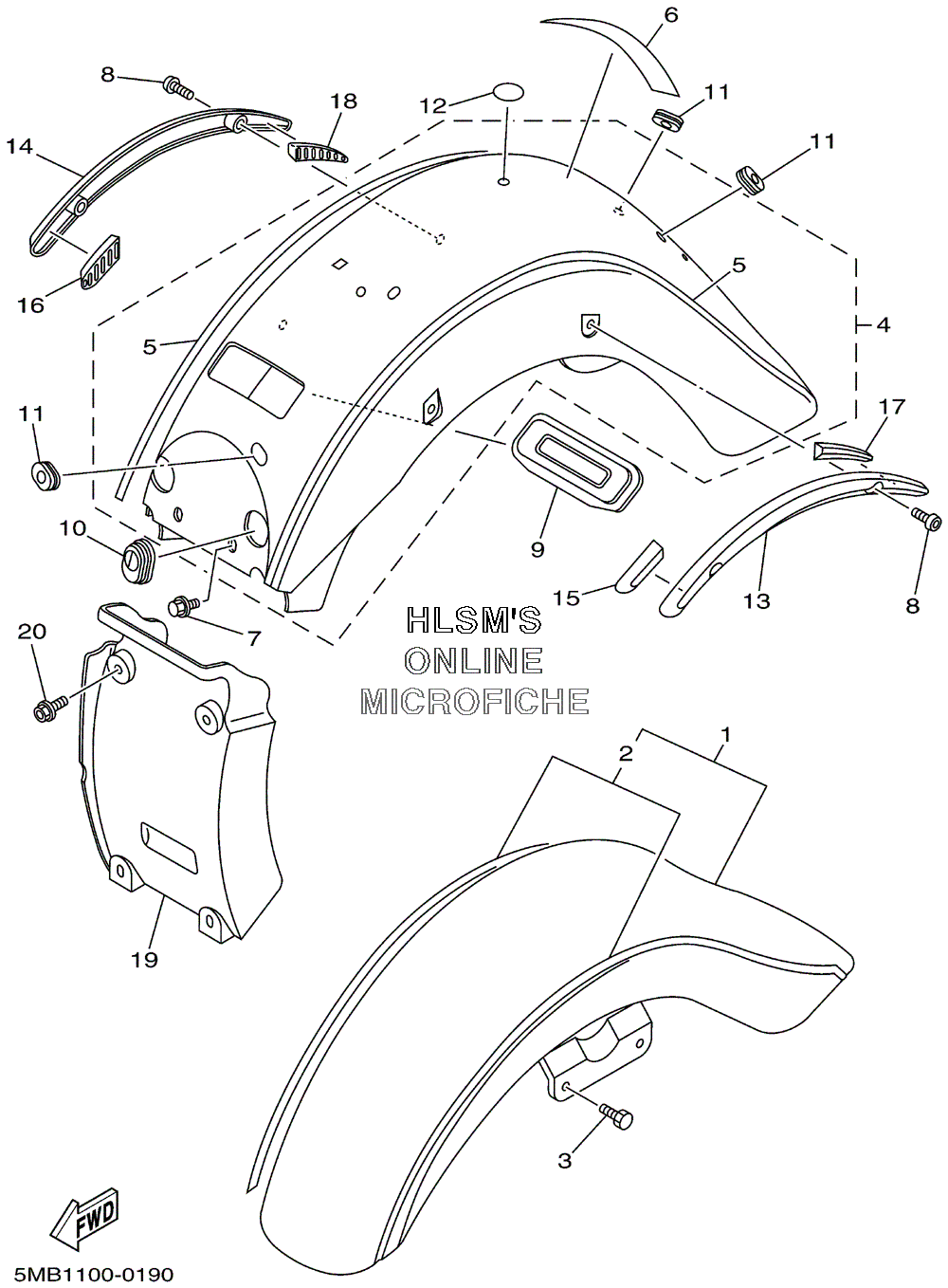

FENDER - FRONT / REAR для Yamaha XV 1600 A ROAD STAR - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    4WM-Y2150-G0-P2 FRONT FENDER ASSY (VERY DARK BLUE METALLIC A (VDBMA))
    FRONT FENDER ASSY (VERY DARK BLUE METALLIC A (VDBMA))
  • 1
    4WM-Y2150-J0-9X FRONT FENDER ASSY (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9))
    FRONT FENDER ASSY (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9))
  • 1
    4WM-Y2150-K0-P3 FRONT FENDER ASSY (DARK VIOLET METALLIC (DVMA))
    FRONT FENDER ASSY (DARK VIOLET METALLIC (DVMA))
  • 2
    4WM-21570-C0-00 ...GRAPHIC SET, FRONT FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
    ...GRAPHIC SET, FRONT FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
  • 2
    4WM-21570-D0-00 ...GRAPHIC SET, FRONT FENDER (FOR DEEP SCARLET (DPS))
    ...GRAPHIC SET, FRONT FENDER (FOR DEEP SCARLET (DPS))
  • 2
    4WM-21570-E0-00 ...GRAPHIC SET, FRONT FENDER (FOR DARK VIOLET METALLIC (DVMA))
    ...GRAPHIC SET, FRONT FENDER (FOR DARK VIOLET METALLIC (DVMA))
  • 3
    91314-08025-00 BOLT
    BOLT
  • 4
    4WM-Y2161-G1-P2 REAR FENDER COMP. (VERY DARK BLUE METALLIC A (VDBMA))
    REAR FENDER COMP. (VERY DARK BLUE METALLIC A (VDBMA))
  • 4
    4WM-Y2161-J1-9X REAR FENDER COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9))
    REAR FENDER COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9))
  • 4
    4WM-Y2161-K1-P3 REAR FENDER COMP. (DARK VIOLET METALLIC (DVMA))
    REAR FENDER COMP. (DARK VIOLET METALLIC (DVMA))
  • 5
    4WM-2165A-C0-00 ...GRAPHIC SET, REAR FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
    ...GRAPHIC SET, REAR FENDER (FOR VERY DARK BLUE METALLIC A (VDBMA))
  • 5
    4WM-2165A-D0-00 ...GRAPHIC SET, REAR FENDER (FOR DEEP SCARLET (DPS))
    ...GRAPHIC SET, REAR FENDER (FOR DEEP SCARLET (DPS))
  • 5
    4WM-2165A-E0-00 ...GRAPHIC SET, REAR FENDER (FOR DARK VIOLET METALLIC (DVMA))
    ...GRAPHIC SET, REAR FENDER (FOR DARK VIOLET METALLIC (DVMA))
  • 6
    99247-00080-00 EMBLEM, YAMAHA
    EMBLEM, YAMAHA
  • 7
    97017-06016-00 BOLT
    BOLT
  • 8
    92014-08025-00 BOLT, BUTTON HEAD
    BOLT, BUTTON HEAD
  • 9
    4WM-21649-00-00 DAMPER
    DAMPER
  • 10
    4WM-21638-00-00 DAMPER 1
    DAMPER 1
  • 11
    90480-15061-00 GROMMET
    GROMMET
  • 12
    4NK-21735-00-00 SEAL 2
    SEAL 2
  • 13
    4WM-2164F-00-00 STAY 1
    STAY 1
  • 14
    4WM-2164G-00-00 STAY 2
    STAY 2
  • 15
    4WM-21541-00-00 DAMPER 1
    DAMPER 1
  • 16
    4WM-21542-00-00 DAMPER 2
    DAMPER 2
  • 17
    4WM-2174X-00-00 DAMPER
    DAMPER
  • 18
    4WM-2174Y-00-00 DAMPER
    DAMPER
  • 19
    4WM-21629-00-P2 GUARD, MUD (LIGHT YELLOWISH GRAY METALLIC (LYNM9) FOR DEEP SCARLET (DPS))
    GUARD, MUD (LIGHT YELLOWISH GRAY METALLIC (LYNM9) FOR DEEP SCARLET (DPS))
  • 19
    4WM-21629-00-P4 GUARD, MUD (VERY DARK BLUE METALLIC A (VDBMA))
    GUARD, MUD (VERY DARK BLUE METALLIC A (VDBMA))
  • 19
    4WM-21629-00-P5 GUARD, MUD (DARK VIOLET METALLIC (DVMA))
    GUARD, MUD (DARK VIOLET METALLIC (DVMA))
  • 20
    90119-06060-00 BOLT, WITH WASHER
    BOLT, WITH WASHER
