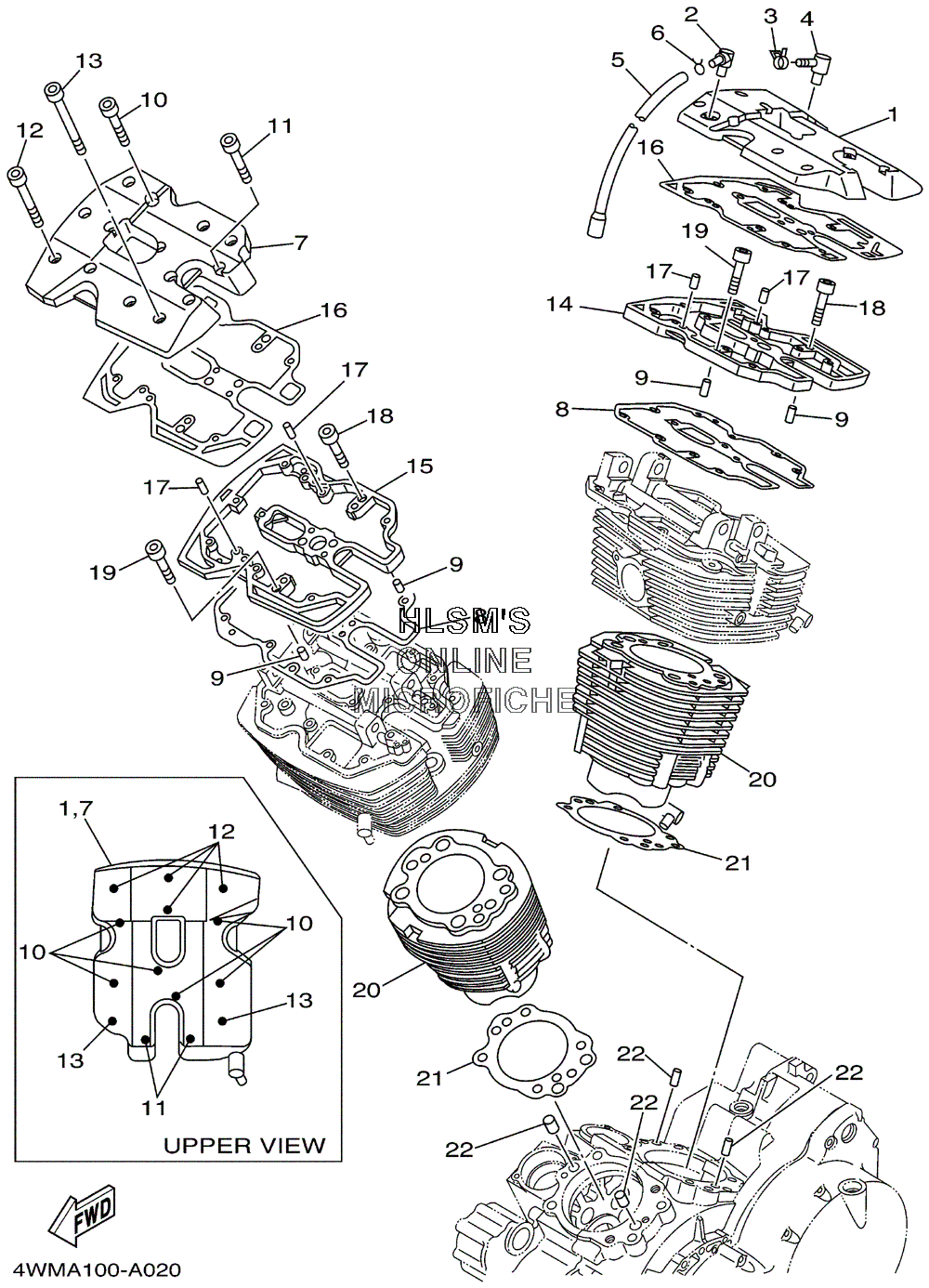

CYLINDER для Yamaha XV 1600 A ROAD STAR - 2002 года выпуска`
-
№АртикулНазвание
-
14WM-11191-00-00 COVER, CYL HEAD 1COVER, CYL HEAD 1
-
24GL-15371-00-00 BREATHERBREATHER
-
390467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
44WM-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
54WM-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
690467-13042-00 CLIPCLIP
-
74WM-11192-00-00 COVER, CYL HEAD 2COVER, CYL HEAD 2
-
84WM-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
991808-16023-00 PIN, DOWELPIN, DOWEL
-
1090110-06022-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1291314-06050-00 BOLTBOLT
-
1391314-06065-00 BOLTBOLT
-
144WM-1111M-00-00 COVER 1COVER 1
-
154WM-1111N-00-00 COVER 2COVER 2
-
164WM-11194-00-00 GASKET, HEAD COVER 2GASKET, HEAD COVER 2
-
1791808-16023-00 PIN, DOWELPIN, DOWEL
-
1891314-06040-00 BOLTBOLT
-
1990110-06023-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
204WM-11311-00-00 CYL 1CYL 1
-
214WM-11351-00-00 GASKET, CYLGASKET, CYL
-
2290387-087A5-00 COLLARCOLLAR
