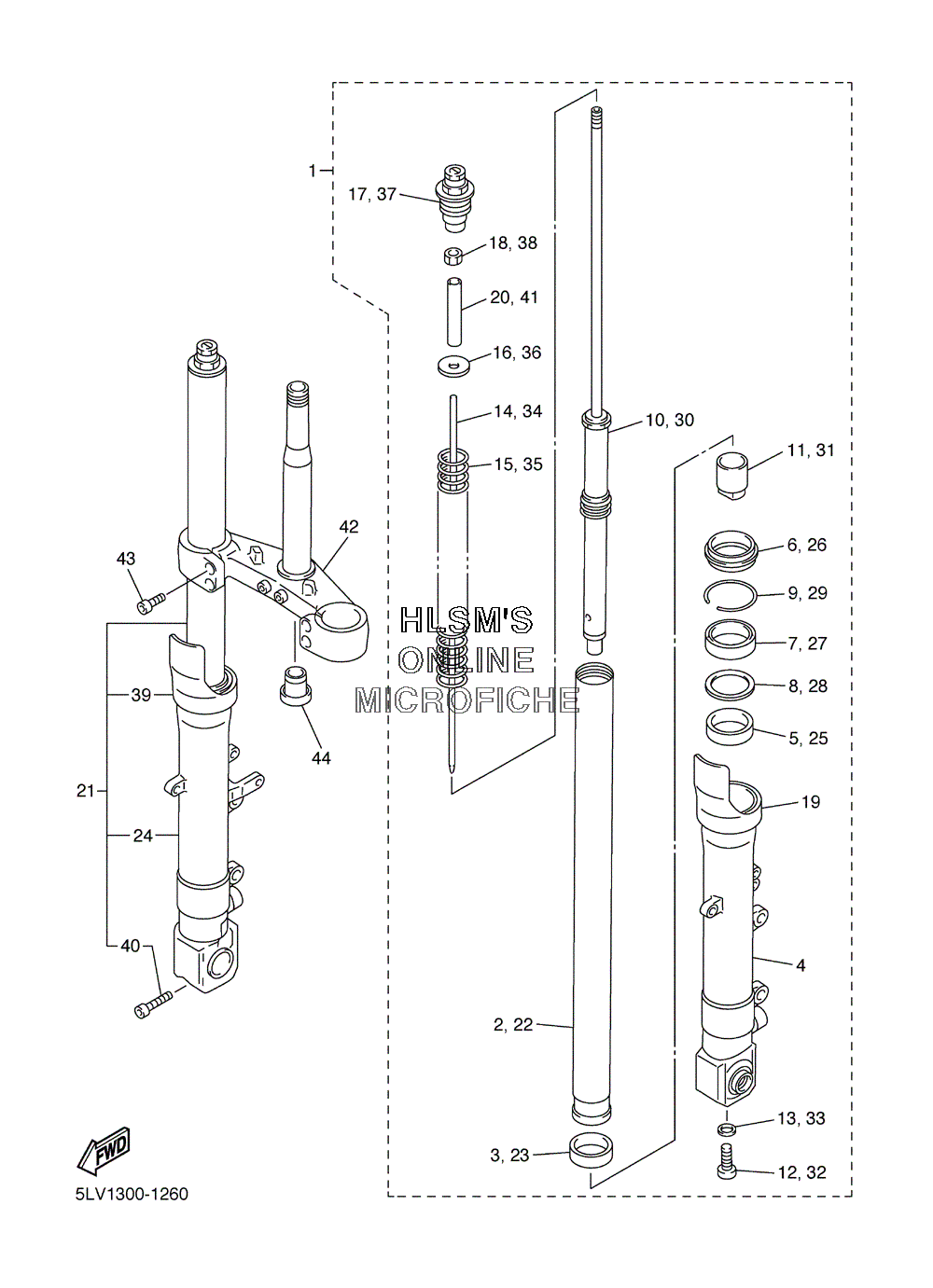

SUSPENSION - FRONT FORK для Yamaha FZ1 - 2002 года выпуска`
-
№АртикулНазвание
-
15LV-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25LV-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
34TX-23135-A0-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
45LV-23106-00-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
54TX-23125-A0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
64TX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
74TX-23145-00-00 ...OIL SEAL...OIL SEAL
-
84TX-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
94TX-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
105LV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
115LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
1290110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1390430-10171-00 ...GASKET...GASKET
-
145LV-2318Y-00-00 ...PLUNGER...PLUNGER
-
155LV-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1690201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
175LV-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1895337-10600-00 ...NUT...NUT
-
194TX-2331G-00-00 ...COVER...COVER
-
205LV-23118-00-00 ...SPACER...SPACER
-
215LV-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
225LV-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
234TX-23135-A0-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
245LV-23107-00-00 ...OUTER TUBE COMP. (R.H)...OUTER TUBE COMP. (R.H)
-
254TX-23125-A0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
264TX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
274TX-23145-00-00 ...OIL SEAL...OIL SEAL
-
284TX-23115-00-00 ...GUIDE, COVER UPPER...GUIDE, COVER UPPER
-
294TX-23156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
305LV-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
315LV-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
3290110-10N52-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3390430-10171-00 ...GASKET...GASKET
-
345LV-2318Y-00-00 ...PLUNGER...PLUNGER
-
355LV-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
3690201-10321-00 ...WASHER, PLATE...WASHER, PLATE
-
375LV-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3895337-10600-00 ...NUT...NUT
-
394TX-2331G-00-00 ...COVER...COVER
-
4091314-08045-00 ...BOLT...BOLT
-
415LV-23118-00-00 ...SPACER...SPACER
-
425LV-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391314-08025-00 BOLTBOLT
-
444KM-23123-01-00 COVER, LOWER 1COVER, LOWER 1
