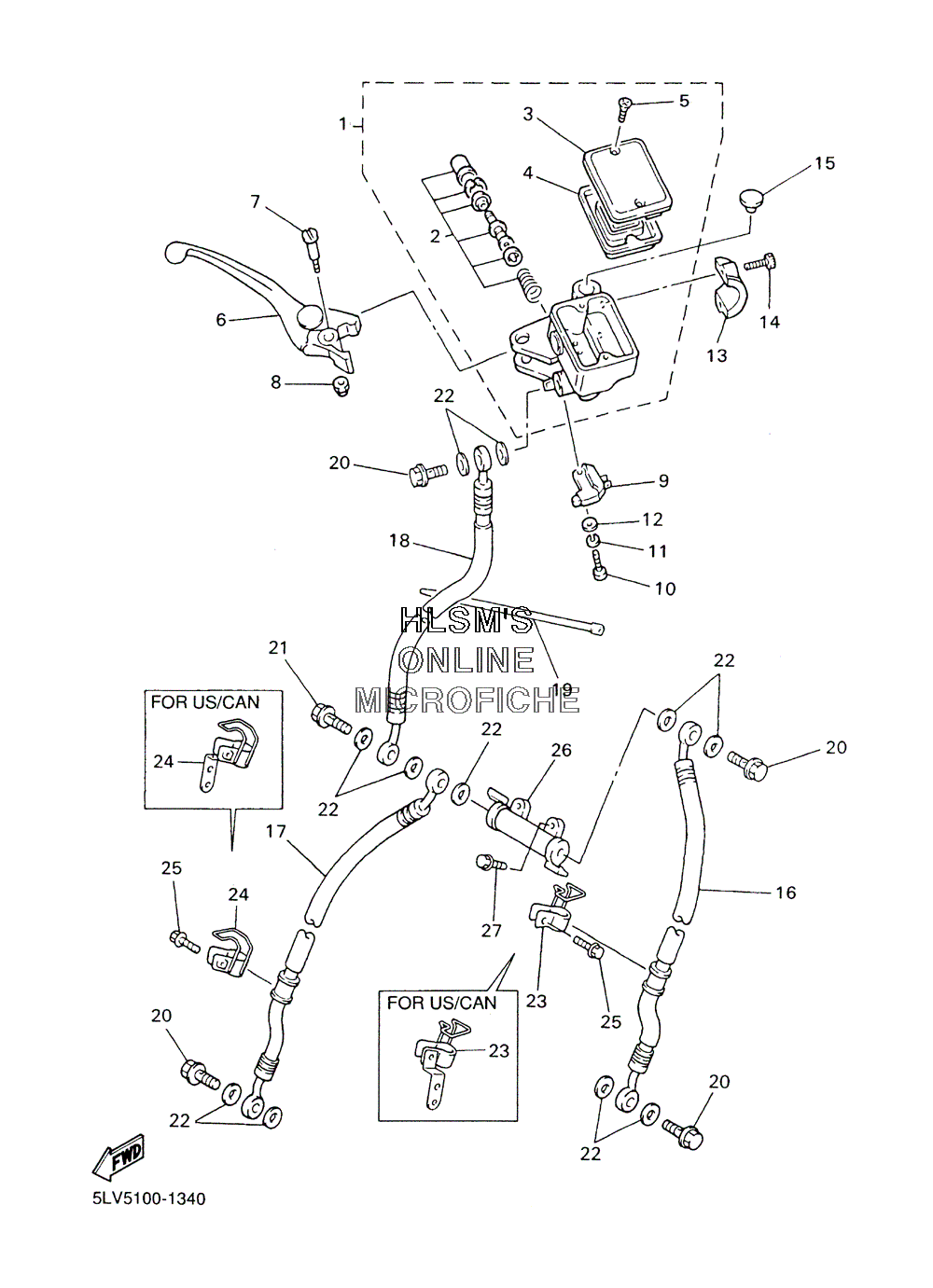

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ1 - 2002 года выпуска`
-
№АртикулНазвание
-
15DM-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25DM-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34HM-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44HM-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
598707-04012-00 ......SCREW, FLAT......SCREW, FLAT
-
65EB-83922-01-00 LEVER 2LEVER 2
-
73FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 ...NUT, U...NUT, U
-
93FV-83980-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1098517-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192990-04100-00 WASHER, SPRINGWASHER, SPRING
-
1292990-04600-00 WASHER, PLATEWASHER, PLATE
-
134HM-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1491317-06020-00 BOLTBOLT
-
1590338-09012-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
165LV-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
175LV-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
185LV-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
191UA-82591-00-00 BANDBAND
-
2090401-10172-00 BOLT, UNIONBOLT, UNION
-
2190401-10160-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
235LV-25875-10-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
245LV-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2595817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2642H-25885-01-00 JOINTJOINT
-
2795027-06020-00 BOLT, FLANGEBOLT, FLANGE
