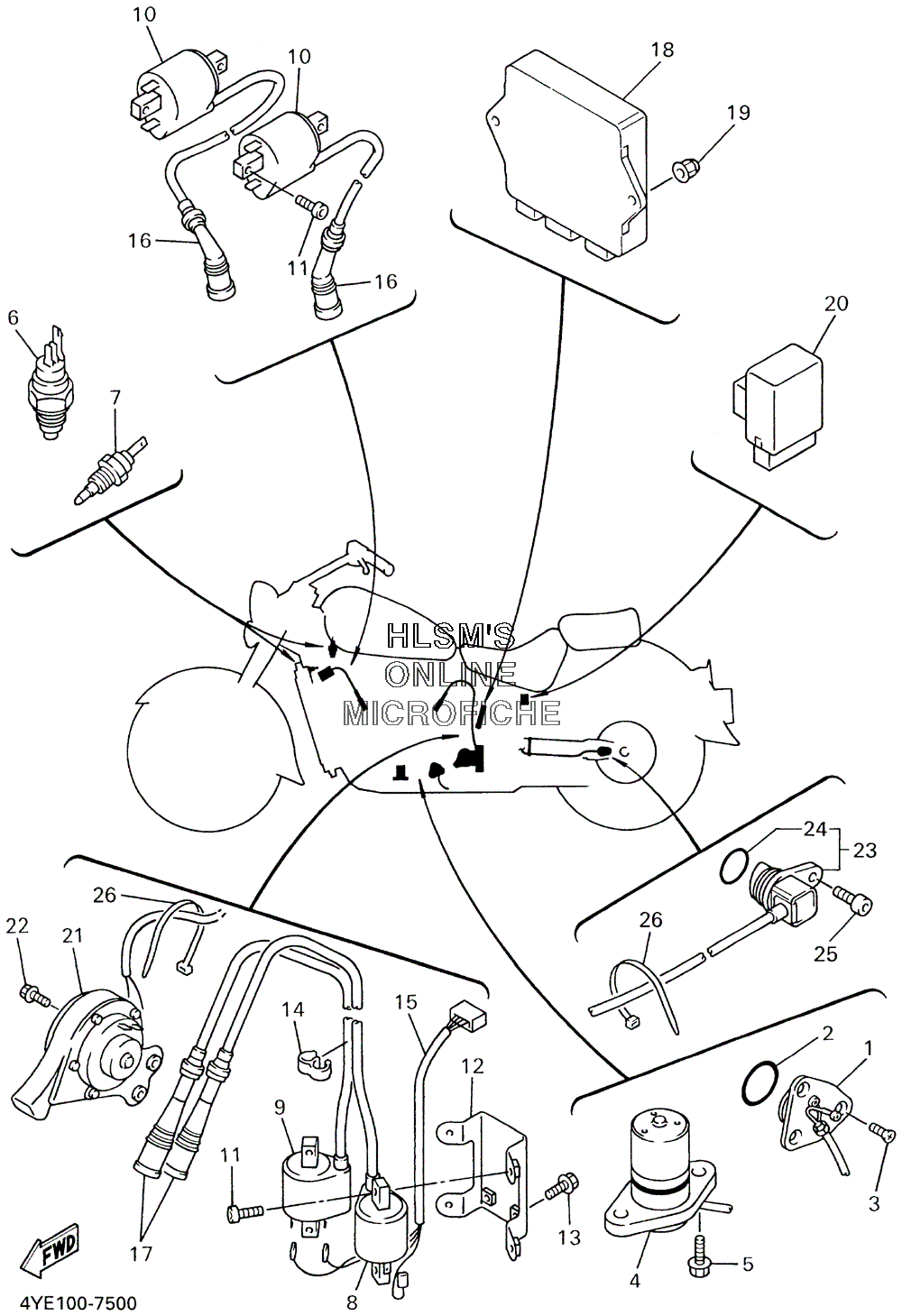

ELECTRICAL 2 для Yamaha XVZ 1300 LT ROAD STAR TOUR DELUXE - 2001 года выпуска`
-
№АртикулНазвание
-
14WY-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
293210-29196-00 O-RINGO-RING
-
390149-05321-00 SCREWSCREW
-
41FK-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
595027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
63LN-82560-01-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
73YX-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
84NK-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
94NK-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
104NK-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1191317-05016-00 BOLTBOLT
-
124NK-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1490464-10075-00 CLAMPCLAMP
-
154NK-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
164NK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
171FK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
184NK-82305-20-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
1990176-06065-00 NUT, CROWNNUT, CROWN
-
204NK-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
214NK-83371-00-00 HORNHORN
-
2290119-06217-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
234NK-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
244NK-85075-00-00 ...O-RING...O-RING
-
2590109-081F0-00 BOLTBOLT
